Hafele 341.07.518 Soss Concealed Invisible Hinge, 180 Opening Angle

Hafele 341.07.518 Concealed Hinge offers a sleek and sophisticated solution for your cabinetry needs. Designed for wood thicknesses between 13 and 16 mm, this SOSS #101 hinge features a stunning satin brass finish that complements a variety of interior styles. The hinge allows for a remarkable 180-degree opening angle, providing maximum accessibility and convenience for your doors. Constructed from durable steel and zinc alloy, the Hafele 341.07.518 is built to withstand everyday use while maintaining its aesthetic appeal. This model is suitable for both DIN left and DIN right-hand mounting, ensuring versatility in installation. Supplied with all necessary mounting screws, it simplifies the process of fitting and adjustment. The hinge is designed without plastic slide plates, enhancing its minimalist look and ensuring a seamless integration into your furniture. Whether you are updating a kitchen, bathroom, or any other cabinetry, this concealed hinge provides a professional finish that enhances the overall design. With the reliability and quality associated with Hafele, the 341.07.518 is an excellent choice for building professionals and discerning homeowners alike. Experience the perfect blend of functionality and elegance with this innovative hinge solution.

Concealed Hinge, Soss, Invisible Hinge, 180 Opening Angle

Wood Thickness: 13-16 mm, SOSS #101, Satin Brass

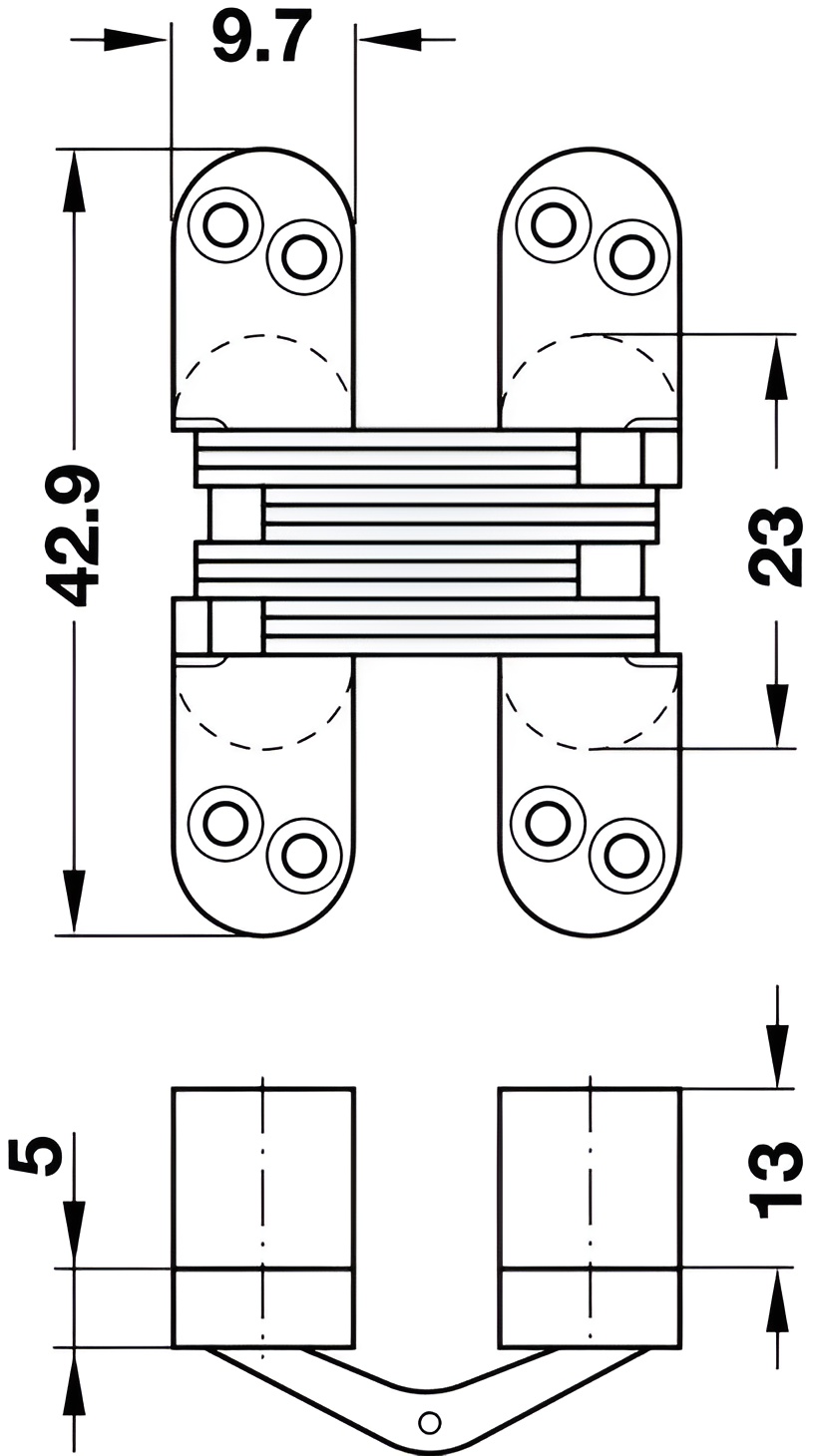

• Application and planning dimensions For dood thickness mm 13–16 19–24 19–25 22–26 28–34 35–38 41–45 48–51 Dim. A mm 9.7 12.9 12.8 16.1 19.4 25.6 28.5 35.6 Dim. B mm 42.9 44.5 60.0 69.7 95.0 117.0 117.5 139.1 Dim. C mm 23.0 20.0 32.0 35.0 53.0 66.0 78.0 78.0 Dim. C1 mm – – – 17.0 20.0 26.0 31.0 37.0 Dim. D mm 5.0 5.0 6.4 7.0 9.5 12.0 10.0 11.9 Dim. E mm 6.0 13.1 20.0 25.0 29.0 39.0 43.0 52.0 Gap F mm 17.1 22.1 22.1 27.4 32.6 43.7 50.9 62.0 Gap G mm 2.4 3.0 3.2 4.0 4.8 6.4 6.4 7.5 Gap H mm 2.7 2.7 2.7 3.5 4.0 5.5 9.5 8.0 Gap I mm 0.8 0.8 1.6 1.2 1.2 1.6 1.2 1.6

Resources

• CAD data
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.80
