Hafele 341.07.536 Soss Concealed Invisible Hinge, 180 Opening Angle

Hafele 341.07.536 Concealed Hinge offers a seamless solution for those seeking an elegant and functional hinge system. Designed for wood thicknesses ranging from 19 to 25 mm, this Soss hinge provides an impressive 180-degree opening angle, allowing for maximum accessibility and convenience in any space. Crafted from durable steel and zinc alloy, the hinge features a brass-plated finish that not only adds a touch of sophistication but also ensures longevity and resistance to wear. This model is suitable for both DIN left and DIN right-hand mounting, making it versatile enough to accommodate various door configurations. Installation is straightforward, as the hinge comes supplied with mounting screws, ensuring you have everything needed for a quick setup. Notably, this version does not include plastic slide plates, enhancing its minimalist design and functionality. Ideal for professional builders and discerning homeowners alike, the Hafele 341.07.536 Concealed Hinge combines style with practicality. Its understated design allows doors to blend seamlessly into their surroundings while providing reliable performance. Elevate your project with this high-quality hinge solution, designed to meet the demands of modern architectural needs.

Concealed Hinge, Soss, Invisible Hinge, 180 Opening Angle

Wood Thickness 19-25mm SOSS #204, Satin Brass

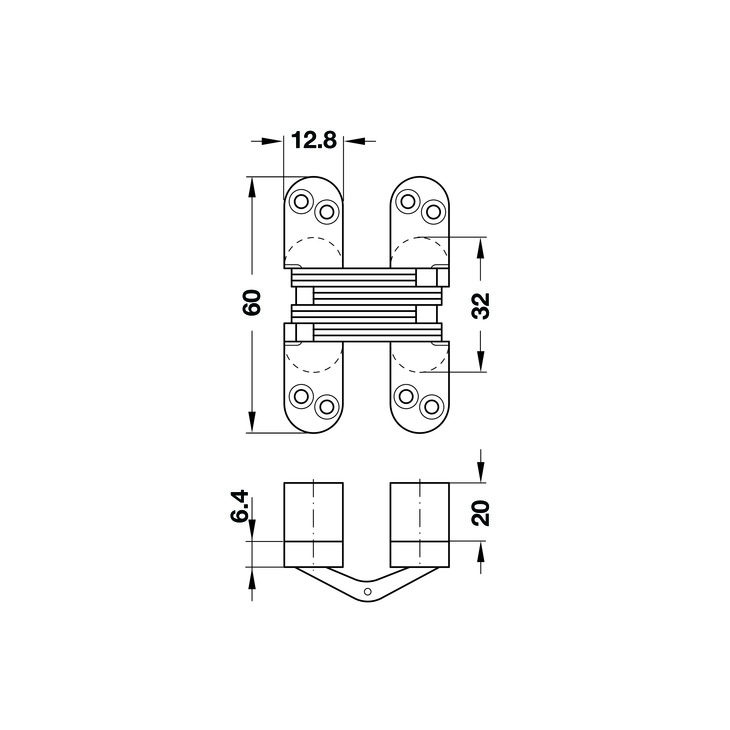

• Application and planning dimensions For dood thickness mm 13–16 19–24 19–25 22–26 28–34 35–38 41–45 48–51 Dim. A mm 9.7 12.9 12.8 16.1 19.4 25.6 28.5 35.6 Dim. B mm 42.9 44.5 60.0 69.7 95.0 117.0 117.5 139.1 Dim. C mm 23.0 20.0 32.0 35.0 53.0 66.0 78.0 78.0 Dim. C1 mm – – – 17.0 20.0 26.0 31.0 37.0 Dim. D mm 5.0 5.0 6.4 7.0 9.5 12.0 10.0 11.9 Dim. E mm 6.0 13.1 20.0 25.0 29.0 39.0 43.0 52.0 Gap F mm 17.1 22.1 22.1 27.4 32.6 43.7 50.9 62.0 Gap G mm 2.4 3.0 3.2 4.0 4.8 6.4 6.4 7.5 Gap H mm 2.7 2.7 2.7 3.5 4.0 5.5 9.5 8.0 Gap I mm 0.8 0.8 1.6 1.2 1.2 1.6 1.2 1.6

Resources

• CAD data
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.80
