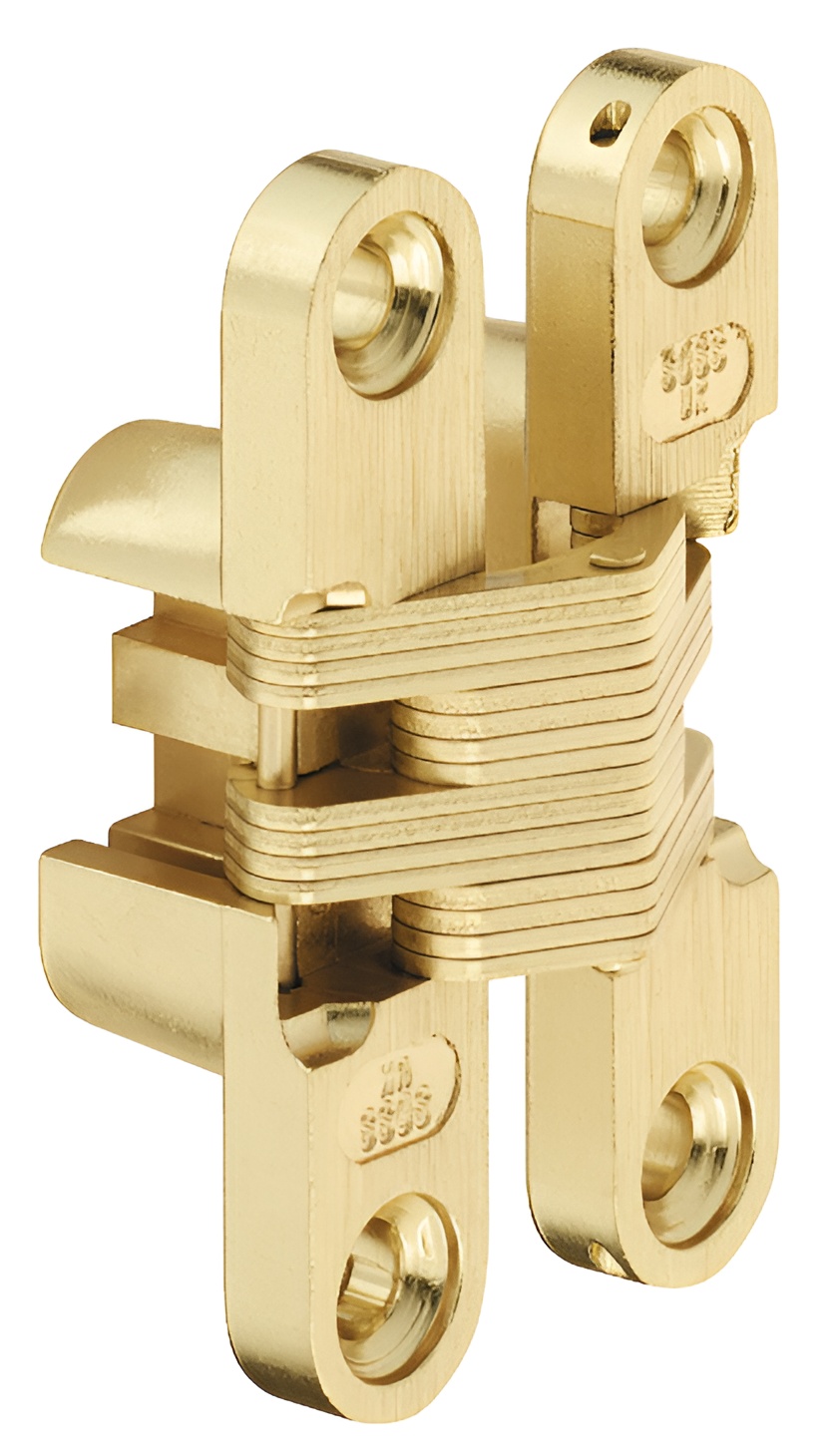

Hafele 341.07.545 Soss Concealed Invisible Hinge, 180 Opening Angle

Hafele 341.07.545 Concealed Hinge offers a sleek and efficient solution for modern cabinetry with its invisible design and impressive 180° opening angle. Crafted from durable steel and zinc alloy, this hinge ensures longevity while maintaining an aesthetic appeal with its brass-plated finish. It's ideal for wood thicknesses between 22 mm and 26 mm, making it versatile for various applications. Designed for both DIN left and DIN right-hand use, this hinge is easy to install and comes supplied with mounting screws for added convenience. The absence of plastic slide plates contributes to its robust construction, ensuring reliability without compromising on style. The Soss #208 model is particularly well-suited for those seeking a clean, unobtrusive look that seamlessly integrates into any cabinetry project. Whether you're a building professional or a discerning homeowner, the Hafele 341.07.545 provides a combination of strength and elegance, allowing doors to open fully without any hindrance. Elevate your furniture designs and create smooth transitions between spaces with this exceptional concealed hinge, designed to meet the demands of contemporary living. Enjoy the perfect blend of functionality and design with Hafele's innovative hardware solutions.

Concealed Hinge, Soss, Invisible Hinge, 180 Opening Angle

Wood Thickness 26-28mm SOSS #208, Satin Brass

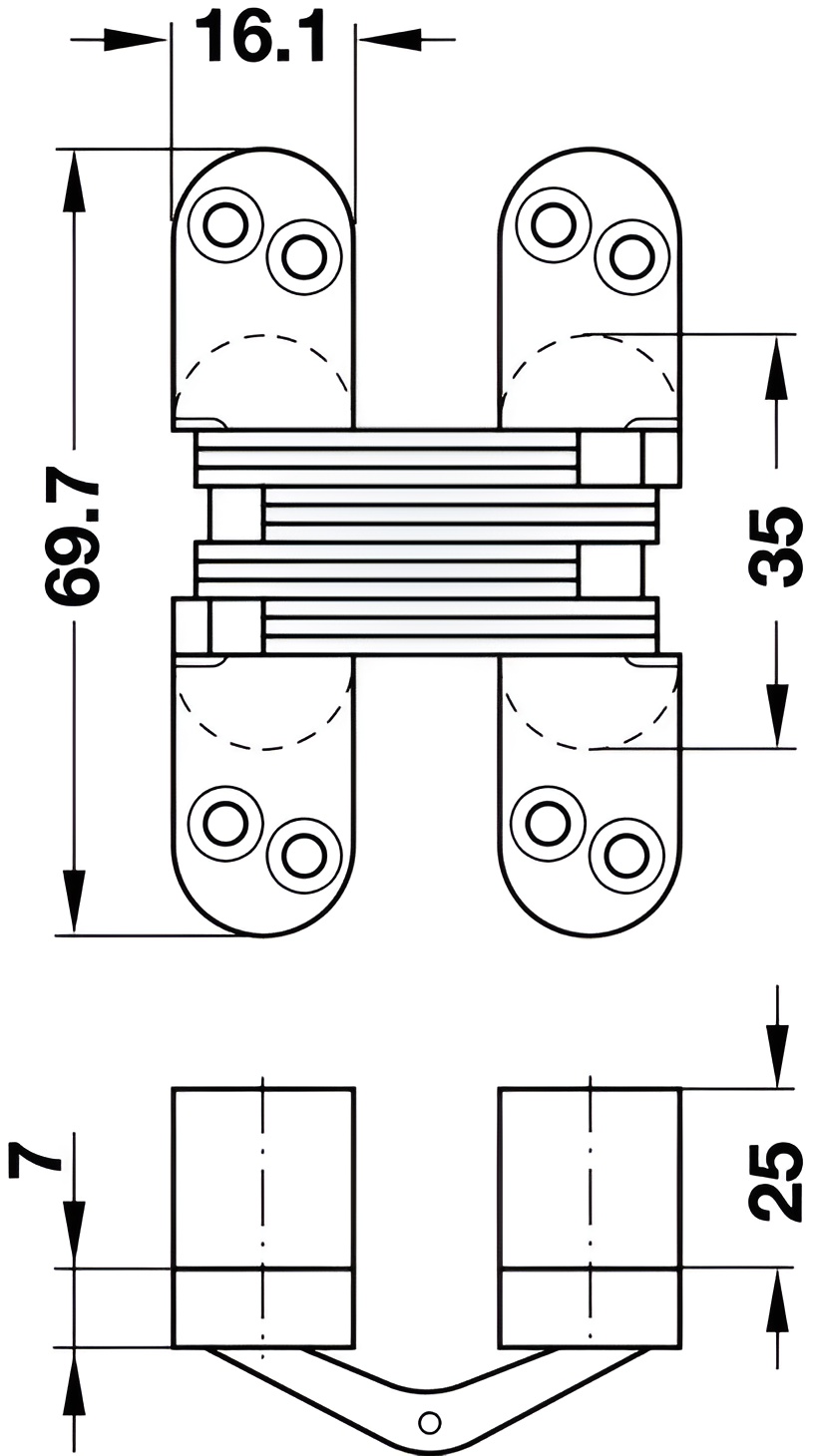

• Application and planning dimensions For dood thickness mm 13–16 19–24 19–25 22–26 28–34 35–38 41–45 48–51 Dim. A mm 9.7 12.9 12.8 16.1 19.4 25.6 28.5 35.6 Dim. B mm 42.9 44.5 60.0 69.7 95.0 117.0 117.5 139.1 Dim. C mm 23.0 20.0 32.0 35.0 53.0 66.0 78.0 78.0 Dim. C1 mm – – – 17.0 20.0 26.0 31.0 37.0 Dim. D mm 5.0 5.0 6.4 7.0 9.5 12.0 10.0 11.9 Dim. E mm 6.0 13.1 20.0 25.0 29.0 39.0 43.0 52.0 Gap F mm 17.1 22.1 22.1 27.4 32.6 43.7 50.9 62.0 Gap G mm 2.4 3.0 3.2 4.0 4.8 6.4 6.4 7.5 Gap H mm 2.7 2.7 2.7 3.5 4.0 5.5 9.5 8.0 Gap I mm 0.8 0.8 1.6 1.2 1.2 1.6 1.2 1.6

Resources

• CAD data
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.80
