Hafele 341.07.554 Soss Concealed Invisible Hinge, 180 Opening Angle

Hafele 341.07.554 Concealed Hinge offers a seamless and stylish solution for door installations requiring a clean aesthetic. Designed for wood thicknesses ranging from 28 to 34 mm, this Soss-style hinge provides an impressive 180-degree opening angle, allowing for maximum accessibility and functionality. Crafted from durable steel and zinc alloy, the hinge is finished in a beautiful satin brass, ensuring both longevity and an elegant look that complements a variety of interiors. Its robust construction promises reliable performance, making it an excellent choice for high-traffic areas. This model is versatile, suitable for both DIN left and DIN right-hand door applications, making it adaptable to your specific project needs. Installation is straightforward with the included mounting screws, ensuring a hassle-free setup. The hinge version comes without plastic slide plates, maintaining a clean and unobtrusive profile. Whether you're a building professional or a discerning homeowner, the Hafele 341.07.554 Concealed Hinge is ideal for achieving a sophisticated look while providing superior functionality. Elevate your door systems with this expertly engineered hinge, designed to meet the demands of modern living spaces.

Concealed Hinge, Soss, Invisible Hinge, 180 Opening Angle

Wood Thickness 29-31mm, SOSS #212, Satin Brass

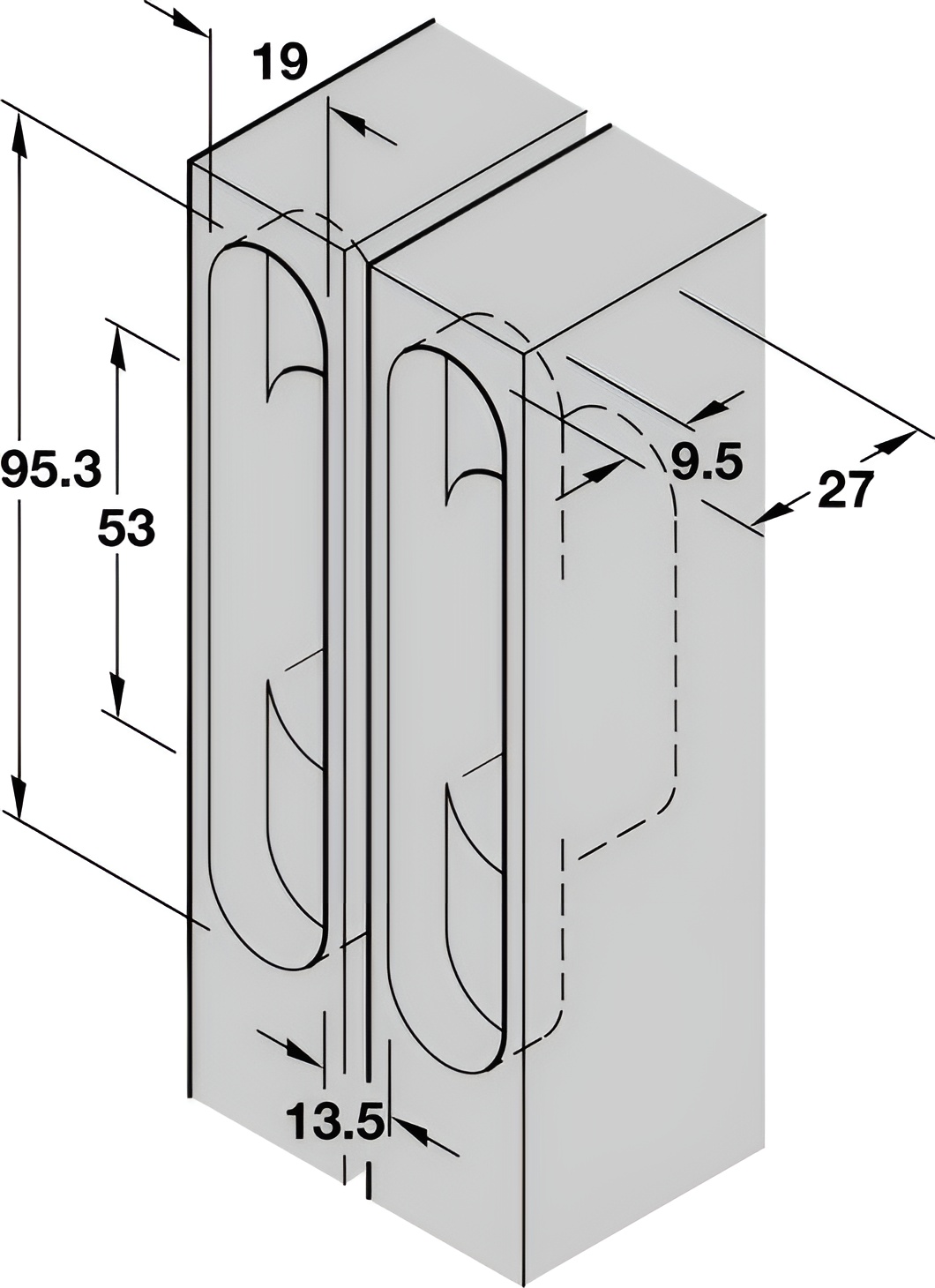

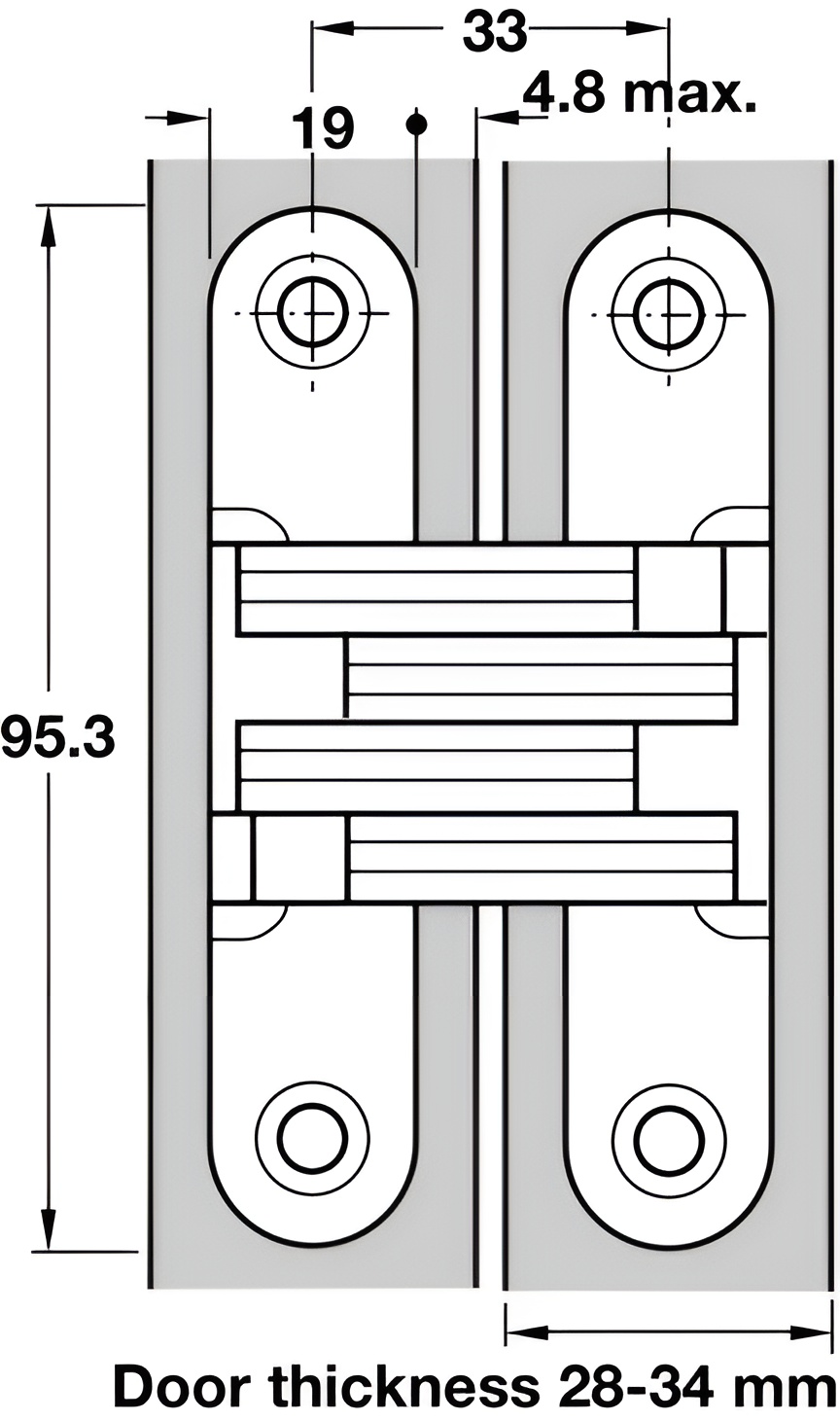

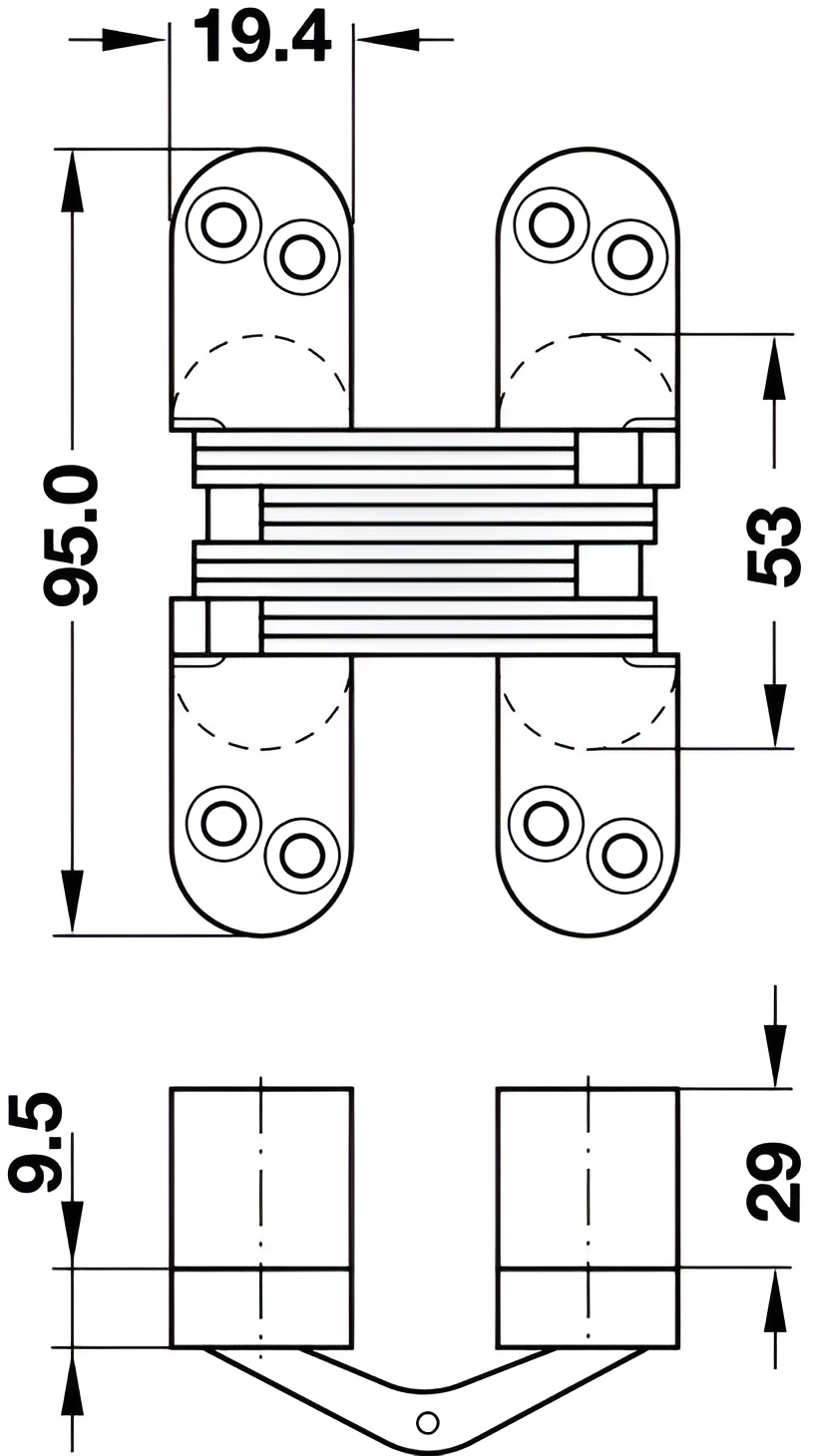

• Application and planning dimensions For dood thickness mm 13–16 19–24 19–25 22–26 28–34 35–38 41–45 48–51 Dim. A mm 9.7 12.9 12.8 16.1 19.4 25.6 28.5 35.6 Dim. B mm 42.9 44.5 60.0 69.7 95.0 117.0 117.5 139.1 Dim. C mm 23.0 20.0 32.0 35.0 53.0 66.0 78.0 78.0 Dim. C1 mm – – – 17.0 20.0 26.0 31.0 37.0 Dim. D mm 5.0 5.0 6.4 7.0 9.5 12.0 10.0 11.9 Dim. E mm 6.0 13.1 20.0 25.0 29.0 39.0 43.0 52.0 Gap F mm 17.1 22.1 22.1 27.4 32.6 43.7 50.9 62.0 Gap G mm 2.4 3.0 3.2 4.0 4.8 6.4 6.4 7.5 Gap H mm 2.7 2.7 2.7 3.5 4.0 5.5 9.5 8.0 Gap I mm 0.8 0.8 1.6 1.2 1.2 1.6 1.2 1.6
