Hafele 341.07.563 Soss Concealed Invisible Hinge, 180 Opening Angle

Hafele 341.07.563 Concealed Hinge offers a seamless blend of functionality and aesthetics for modern cabinetry. Designed for wood thicknesses ranging from 35 to 44mm, this Soss invisible hinge is perfect for applications where a clean, unobtrusive look is paramount. Its satin brass finish not only enhances visual appeal but also ensures durability, making it an excellent choice for high-traffic areas. This model features a generous 180-degree opening angle, allowing for ease of access and maximum visibility, which is particularly beneficial in tight spaces. Constructed from robust steel and zinc alloy, the hinge provides reliable performance while supporting both DIN left and DIN right-hand installations. Easy to install, the Hafele 341.07.563 comes supplied with mounting screws, ensuring a straightforward setup process. Notably, it is designed without plastic slide plates, which contributes to its sleek profile and overall robustness. This hinge is ideal for professionals and discerning homeowners alike, looking to incorporate functional hardware that complements their design vision without compromising on quality. Whether you're upgrading existing cabinetry or embarking on a new project, the Hafele 341.07.563 Concealed Hinge is a smart choice for enhancing both form and function in your space.

Concealed Hinge, Soss, Invisible Hinge, 180 Opening Angle

Wood Thickness: 35-44mm, SOSS #216, Satin Brass

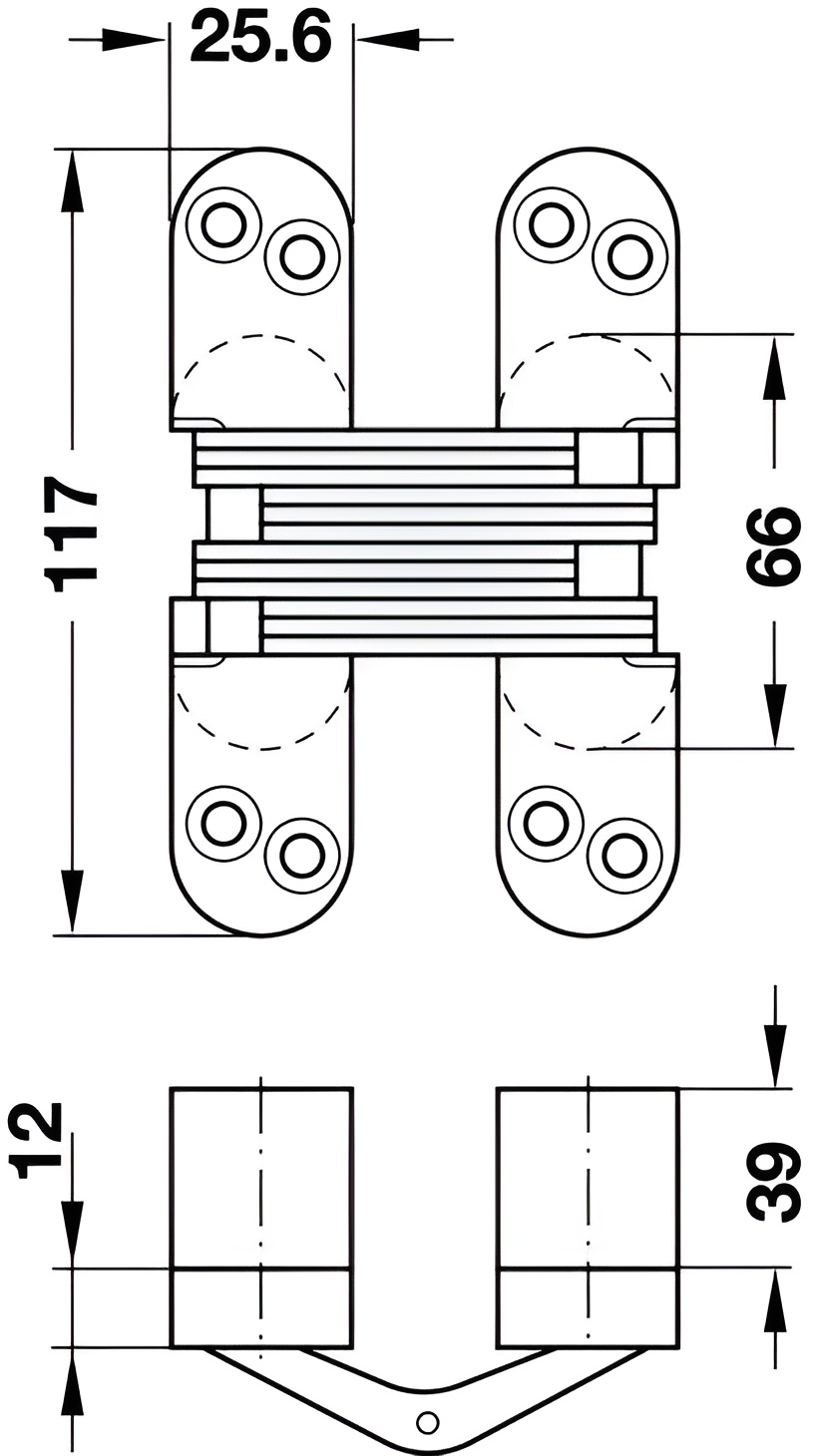

• Application and planning dimensions For dood thickness mm 13–16 19–24 19–25 22–26 28–34 35–38 41–45 48–51 Dim. A mm 9.7 12.9 12.8 16.1 19.4 25.6 28.5 35.6 Dim. B mm 42.9 44.5 60.0 69.7 95.0 117.0 117.5 139.1 Dim. C mm 23.0 20.0 32.0 35.0 53.0 66.0 78.0 78.0 Dim. C1 mm – – – 17.0 20.0 26.0 31.0 37.0 Dim. D mm 5.0 5.0 6.4 7.0 9.5 12.0 10.0 11.9 Dim. E mm 6.0 13.1 20.0 25.0 29.0 39.0 43.0 52.0 Gap F mm 17.1 22.1 22.1 27.4 32.6 43.7 50.9 62.0 Gap G mm 2.4 3.0 3.2 4.0 4.8 6.4 6.4 7.5 Gap H mm 2.7 2.7 2.7 3.5 4.0 5.5 9.5 8.0 Gap I mm 0.8 0.8 1.6 1.2 1.2 1.6 1.2 1.6

Resources

• CAD data
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 9.80
