Hafele 341.07.772 Soss Concealed Invisible Hinge, 180 Opening Angle

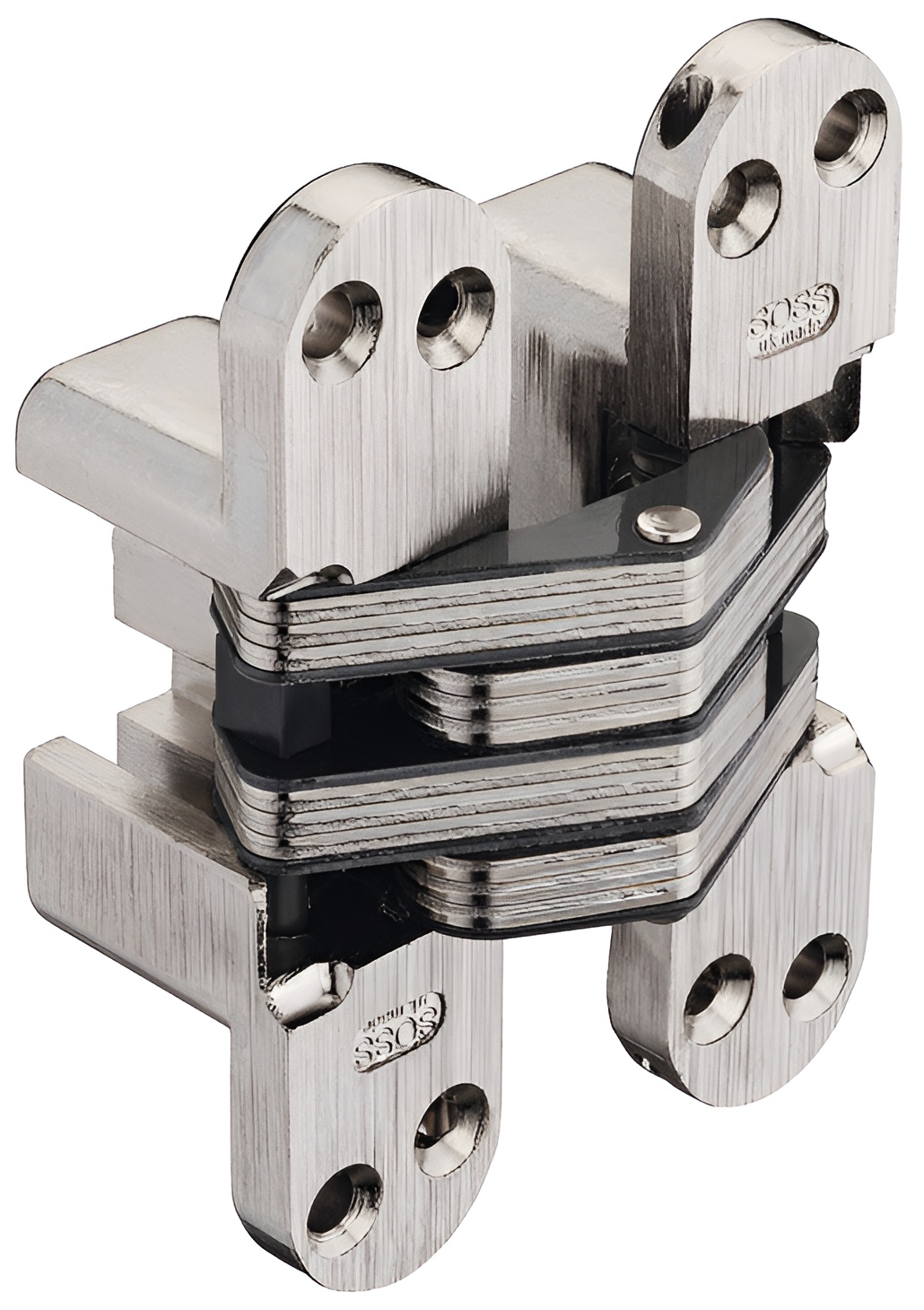

Hafele 341.07.772 Concealed Hinge offers a seamless solution for enhancing the aesthetic of your doors while ensuring functionality. Designed for wood thicknesses between 41–45 mm, this Soss hinge boasts a remarkable 180-degree opening angle, providing unrestricted access and making it ideal for spaces where full door swing is essential. Crafted from a durable combination of steel and zinc alloy, this hinge is not only robust but also features a sleek nickel-plated finish that adds a touch of elegance to any interior. The hinge is versatile, suitable for both DIN left and DIN right-hand mounting, allowing for easy installation in various configurations. Included with the hinge are mounting screws, ensuring a straightforward setup process. Enhanced by plastic slide plates, this version minimizes wear and tear, prolonging the life of the hinge while maintaining smooth operation over time. Whether you are a building professional or a discerning homeowner, the Hafele 341.07.772 Concealed Hinge is a reliable choice for achieving a polished, modern look, perfect for cabinet doors and other applications where style meets practicality. Experience the difference with Hafele's commitment to quality and innovation in architectural hardware.

Concealed Hinge, Soss, Invisible Hinge, 180 Opening Angle

Wood Thickness 45-50mm SOSS #218, Satin Chrome

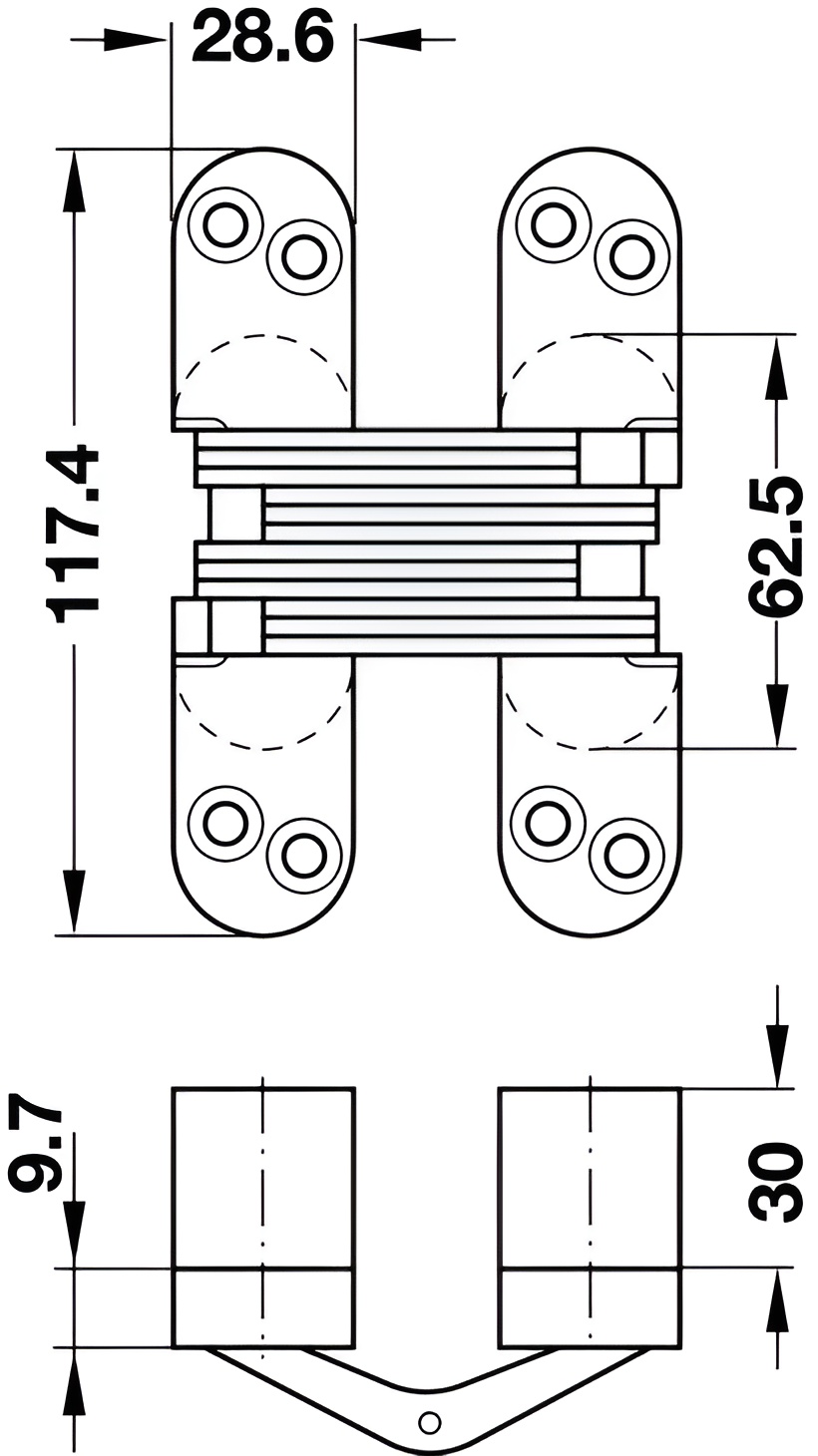

• Application and planning dimensions For dood thickness mm 13–16 19–24 19–25 22–26 28–34 35–38 41–45 48–51 Dim. A mm 9.7 12.9 12.8 16.1 19.4 25.6 28.5 35.6 Dim. B mm 42.9 44.5 60.0 69.7 95.0 117.0 117.5 139.1 Dim. C mm 23.0 20.0 32.0 35.0 53.0 66.0 78.0 78.0 Dim. C1 mm – – – 17.0 20.0 26.0 31.0 37.0 Dim. D mm 5.0 5.0 6.4 7.0 9.5 12.0 10.0 11.9 Dim. E mm 6.0 13.1 20.0 25.0 29.0 39.0 43.0 52.0 Gap F mm 17.1 22.1 22.1 27.4 32.6 43.7 50.9 62.0 Gap G mm 2.4 3.0 3.2 4.0 4.8 6.4 6.4 7.5 Gap H mm 2.7 2.7 2.7 3.5 4.0 5.5 9.5 8.0 Gap I mm 0.8 0.8 1.6 1.2 1.2 1.6 1.2 1.6
