Hafele 341.07.781 180 Concealed Soss Invisible Hinge

Hafele 341.07.781 Concealed Hinge offers a seamless solution for modern cabinetry with its innovative Soss design. This invisible hinge is engineered for doors with a thickness of 48 to 51 mm, making it versatile for various applications. Crafted from durable steel and zinc alloy, it ensures strength and longevity, while the satin chrome finish adds a touch of elegance to any interior. The hinge features an impressive 180-degree opening angle, allowing for maximum accessibility and convenience. It is designed for both DIN left and DIN right-hand installations, providing flexibility in mounting options to suit your specific needs. Each hinge comes supplied with mounting screws, promoting an effortless installation process. Additionally, the hinge includes plastic slide plates, enhancing its functionality and ensuring smooth operation over time. Ideal for building professionals and discerning homeowners alike, the Hafele 341.07.781 is a reliable choice for achieving a clean, contemporary look without compromising on performance. Whether outfitting residential spaces or commercial environments, this concealed hinge is a smart addition that balances aesthetics and functionality effortlessly.

Concealed Hinge, Soss, Invisible Hinge, 180 Opening Angle

Wood Thickness 51+mm, SOSS #220, Satin Chrome

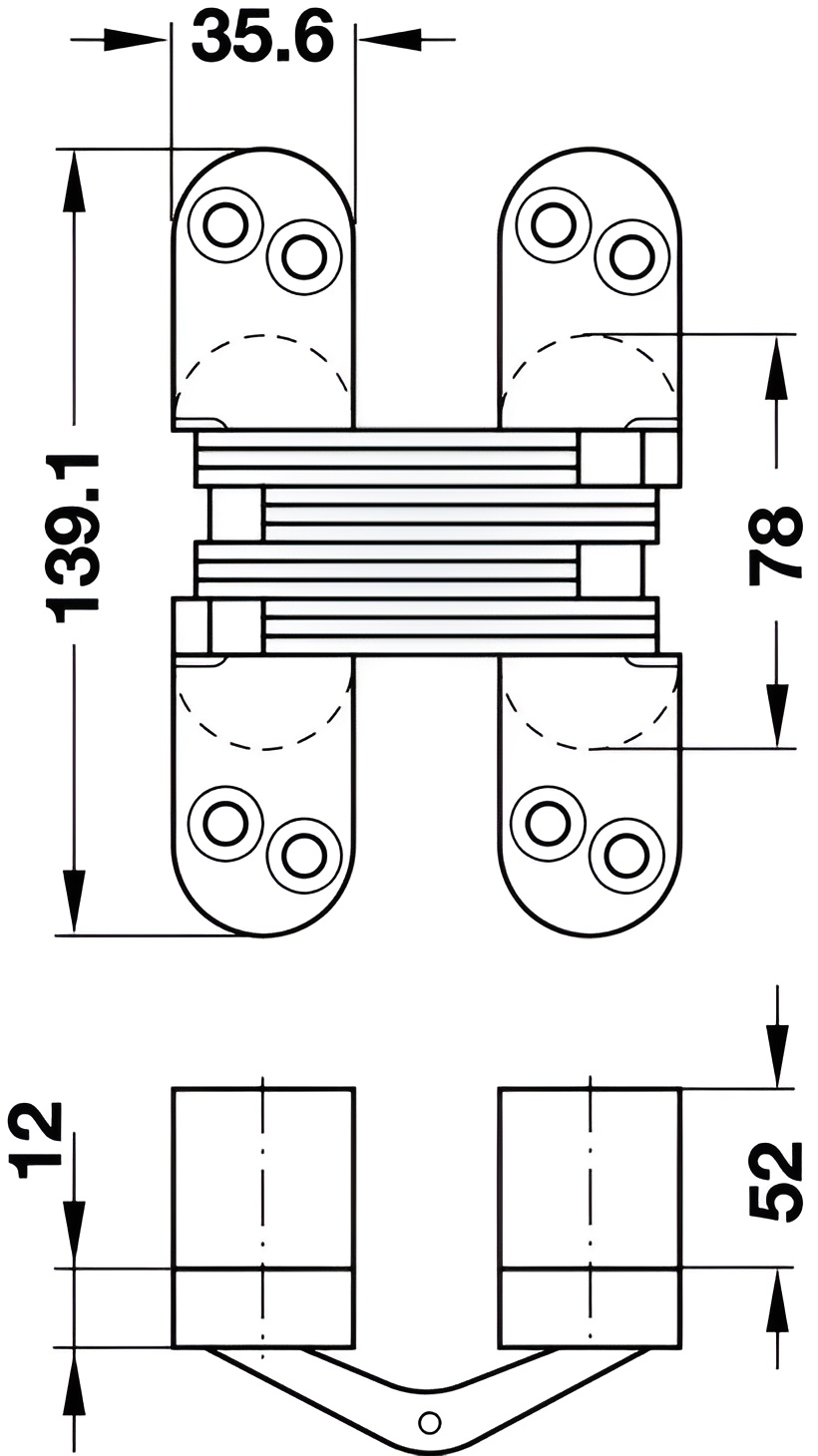

• Application and planning dimensions For dood thickness mm 13–16 19–24 19–25 22–26 28–34 35–38 41–45 48–51 Dim. A mm 9.7 12.9 12.8 16.1 19.4 25.6 28.5 35.6 Dim. B mm 42.9 44.5 60.0 69.7 95.0 117.0 117.5 139.1 Dim. C mm 23.0 20.0 32.0 35.0 53.0 66.0 78.0 78.0 Dim. C1 mm – – – 17.0 20.0 26.0 31.0 37.0 Dim. D mm 5.0 5.0 6.4 7.0 9.5 12.0 10.0 11.9 Dim. E mm 6.0 13.1 20.0 25.0 29.0 39.0 43.0 52.0 Gap F mm 17.1 22.1 22.1 27.4 32.6 43.7 50.9 62.0 Gap G mm 2.4 3.0 3.2 4.0 4.8 6.4 6.4 7.5 Gap H mm 2.7 2.7 2.7 3.5 4.0 5.5 9.5 8.0 Gap I mm 0.8 0.8 1.6 1.2 1.2 1.6 1.2 1.6
