Hafele 344.06.320 Aximat 300 Grade 1 Single Pivot Institutional Hinge Arm with DowelsHafele 344.06.320 Single Pivot Institutional Hinge Arm, Aximat 300, Grade 1 with Expanding Dowels offers a sleek and sophisticated solution for your cabinetry needs. Designed for full overlay applications, this hinge features a remarkable 270-degree opening angle, allowing for maximum access and convenience. The hinge arm is crafted from durable zinc alloy and is available in an elegant black finish, ensuring it complements a variety of interiors. With only 5 mm (3/16") of knuckle exposure, the Aximat 300 maintains a clean profile, while its integrated catch system secures doors without the need for additional magnetic catches. This model is designed for easy installation, featuring pre-installed expanding dowels suitable for 5 mm holes, or you can opt for screw attachment if preferred. The arm and cup conveniently clip together without requiring any tools, streamlining the assembly process. This hinge is tested in accordance with ANSI/BHMA Grade 1 standards, ensuring reliability and safety in its application. It is suitable for single cabinets and storage walls, with a recommended hinge configuration for door widths up to 600 mm (23 5/8"). Please note that #6 wood screws for hinge attachment are not included. Elevate your cabinetry with Hafele's Aximat 300 hinge arm, where quality meets modern design.

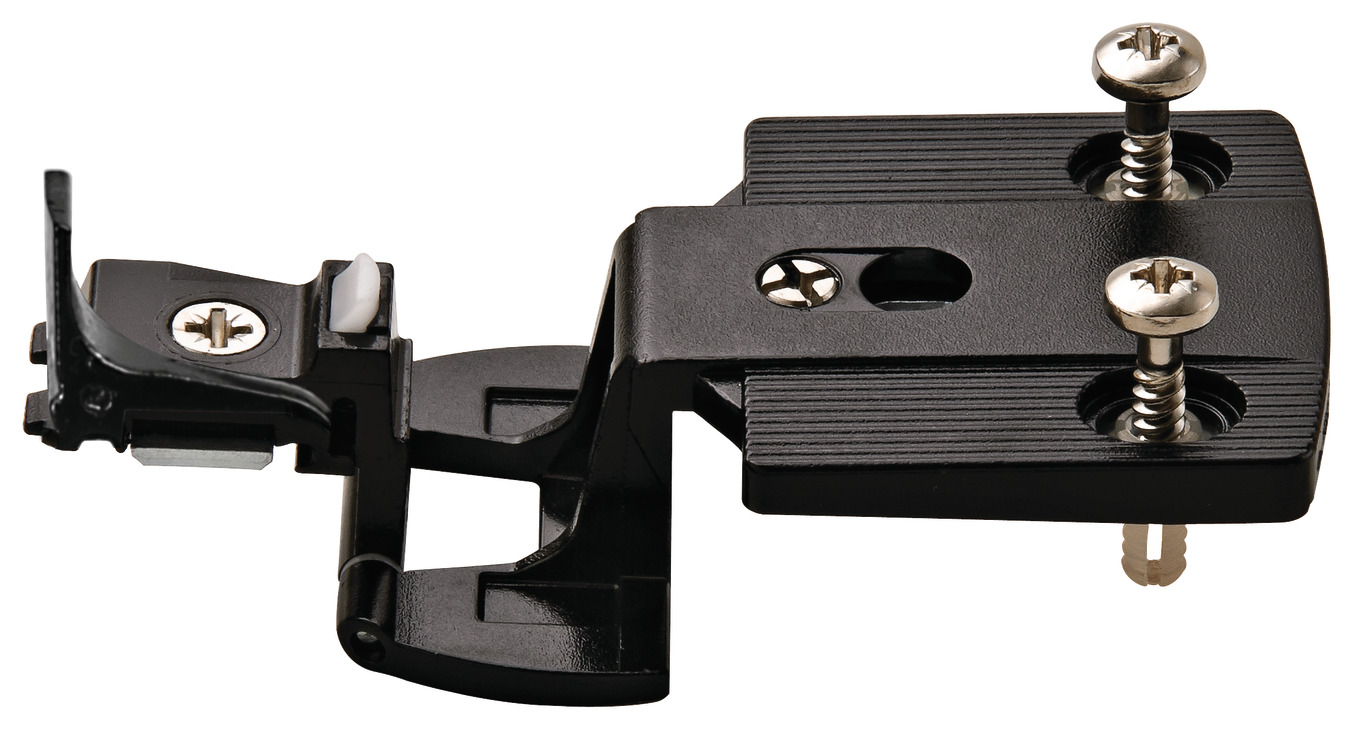

Aximat - Single Pivot Institutional Hinge Arm, 300, Grade 1 with Expanding Dowels
Aximat 300, Black, full overlay, 270 opening angle
Sleek sophisticated design, only 5 mm (3/16") of knuckle is visible Integrated catch keeps doors closed, no additional magnetic catches required #6 wood screws for hinge attachment are not included Tested in accordance with ANSI/BHMA Grade 1 standards
Hinge arm component available with pre-installed expanding dowels for 5 mm holes, or for screw attachment Hinge cup component available in screw-mount or dowel-mount Arm and cup clip-together, no tools required
Available in Twin mounted version, 2 doors can be mounted on a single hinge on a single side panel. Twin-mounted version requires 2 cups. Recommended number of hinges: Door widths up to 600 mm (23 5/8"), Door width should not exceed height.
Installation of safety screw in arm is required.
Attributes
Area of application: For single cabinets and storage walls
Color/finish: Black
Cup drilling depth: 13.00 mm
Cup drilling Ø: 35.00 mm
Door processing for assembly: without
Installation: With pre-mounted expanding dowels for 5mm holes
Material: Zinc alloy
Opening angle: 270°
Order reference: #6 wood screws for hinge attachment are not included
Side panel thickness: ≥19 mm
