Hafele 344.06.860 Single Pivot Institutional Hinge Cup, Aximat 300, Grade 1 for 8 mm Holes, Dowel Mount offers a sleek and sophisticated design, making it an ideal choice for modern cabinetry. With only 5 mm (3/16") of knuckle visible, this hinge maintains a clean appearance while ensuring functionality. Its integrated catch feature eliminates the need for additional magnetic catches, keeping doors securely closed. Engineered to meet ANSI/BHMA Grade 1 standards, the Aximat 300 hinge provides robust durability and superior performance. The hinge allows for side adjustment, lying directly against the door, resulting in a refined installation. Rapid and precise height adjustments ensure doors align perfectly, enhancing both aesthetics and usability. Designed for single cabinets and storage walls, this hinge is nickel-plated, combining both style and resilience. The cup drilling depth of 13 mm and a diameter of 35 mm facilitate seamless installation, requiring cup drilling for assembly. The drilling pattern of 45/9.5 ensures compatibility with various door styles. For added versatility, a twin-mounted version is available, allowing two doors to be mounted on a single hinge on one side panel. Note that installation of a safety screw in the arm is required, and #6 wood screws for hinge attachment are not included. Enjoy a blend of form and function with Hafele's Aximat 300 hinge.

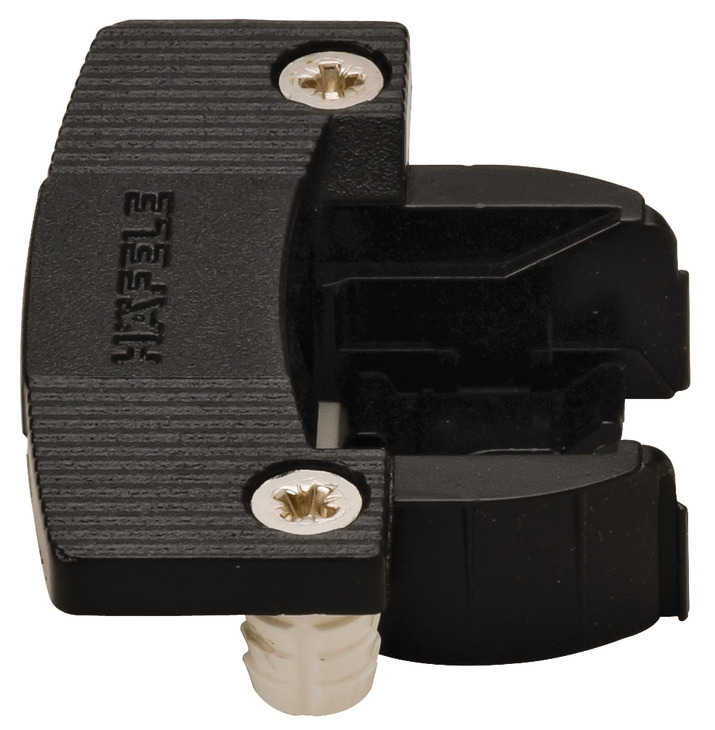

Aximat - Single Pivot Institutional Hinge Cup, Grade 1 for 8 mm Holes, Dowel Mount
Aximat 300, Black
Installation of safety screw in arm is required.
Area of application: For single cabinets and storage walls
Color/finish: nickel plated
Cup drilling depth: 13.00 mm
Cup drilling Ø: 35.00 mm
Door processing for assembly: with cup drilling

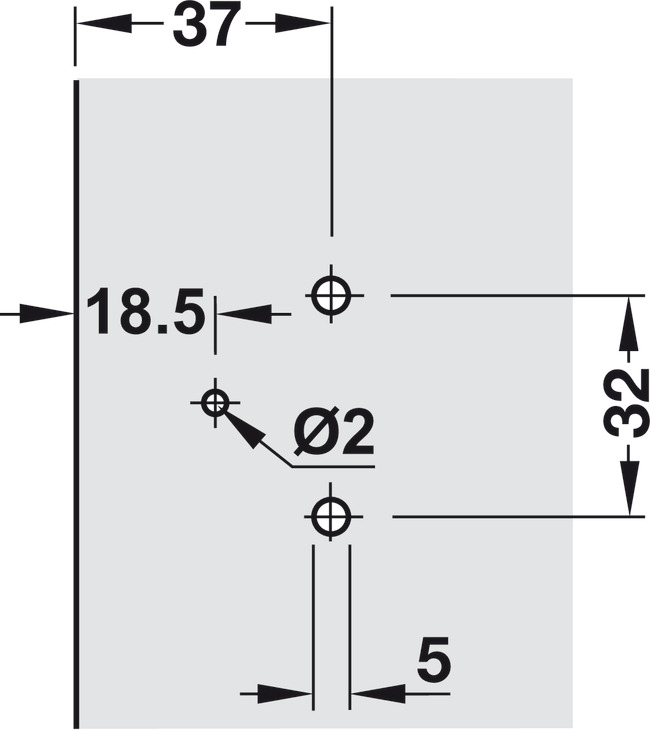

Drilling pattern: 45/9.5
Order reference: #6 wood screws for hinge attachment are not included
