Hafele 348.38.524 Wing Baseplate is expertly designed for Grass Tiomos concealed hinges, providing a seamless integration for your cabinetry needs. This robust baseplate features a height adjustment capability via a worm gear, allowing for precise modifications of ±2 mm, ensuring a perfect fit in any installation. The nickel-plated finish not only enhances durability but also adds a touch of elegance to your hardware. With a drilling depth of 12 mm and a required edge distance of 37 mm, this baseplate is engineered for easy installation using a clip system. It accommodates a drill hole diameter of 5 mm, and the pre-mounted Euro screws streamline the fixing process, reducing installation time. The screw distance of 32 mm and screw length of 13.5 mm are optimized for a secure fit, making it a reliable choice for professionals and homeowners alike. Constructed from high-quality steel, the Hafele 348.38.524 Wing Baseplate is designed to withstand the rigors of daily use while maintaining its aesthetic appeal. Whether you're upgrading your kitchen or enhancing cabinetry in other areas of your home, this versatile baseplate provides both functionality and style, making it an essential addition to your hardware collection.

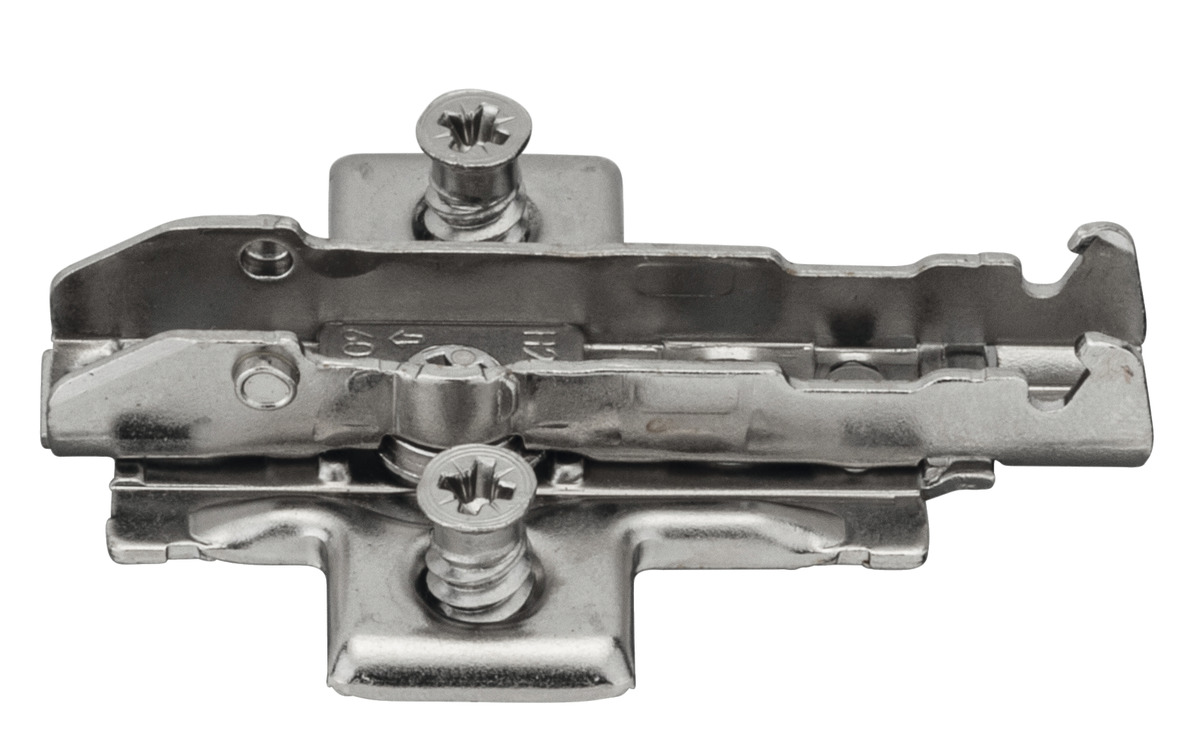

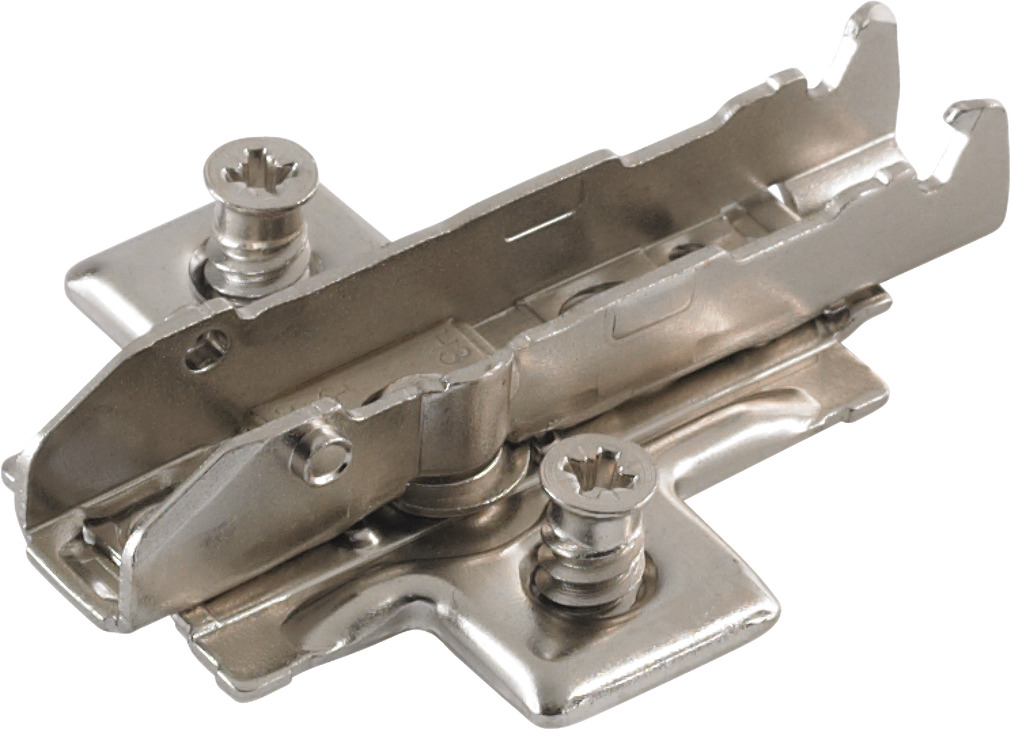

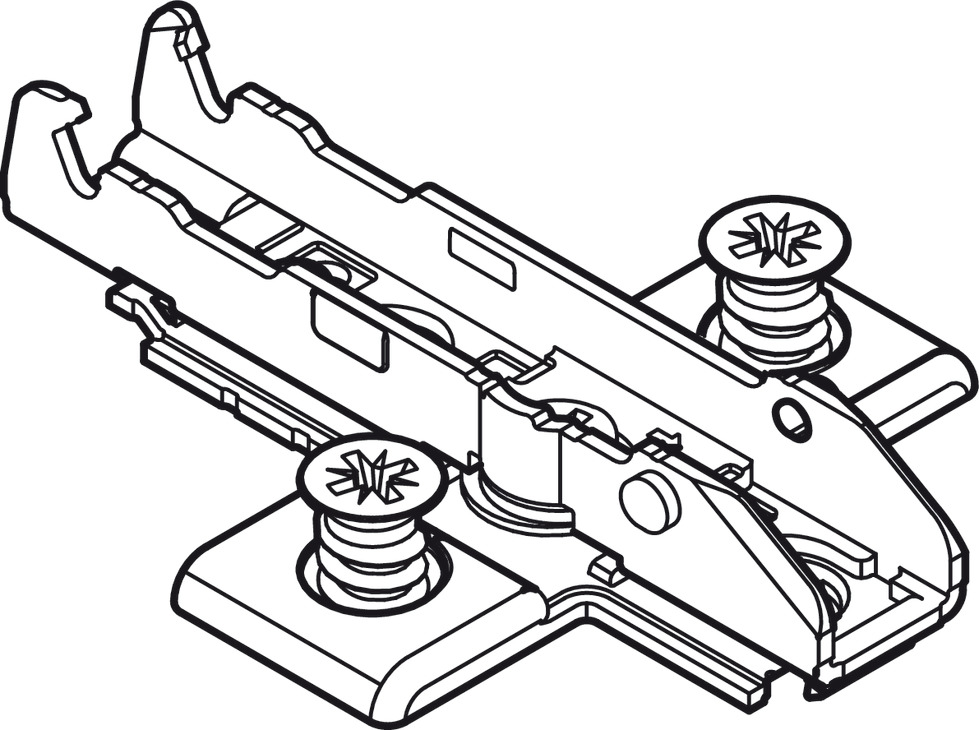

Grass - Wing Baseplate, Tiomos, 4-Point Fixing with Pre-Mounted Euro Screws
Height adjustment via worm gear, Height 3.5 mm, model F058139764228
Adjustment facility: Height adjustment Via worm gear ±2 mm
Area of application: for Grass Tiomos concealed hinges
Color/finish: nickel plated
Distance: 3.50 mm
Drilling depth: 12.00 mm
Edge distance: 37.00 mm
Fixing method: clip system
For drill hole Ø: 5.00 mm
Material: Steel
Model: F058139764228
Model series: Tiomose
Mounting plate version: For screw fixing with pre-mounted Euro screws
Screw distance: 32.00 mm
Screw length: 13.50 mm
