Hafele 348.39.508 Wing Baseplate, Grass TIOMOS 2-Point Fixing with Euro Screws offers a reliable solution for mounting Grass Tiomos concealed hinges with precision and ease. This wing baseplate features a height adjustment mechanism via a worm gear, allowing for a flexible adjustment range of ±2 mm. With a height of just 19 mm, it seamlessly integrates into various cabinetry without compromising space or aesthetics. Constructed from durable steel and zinc alloy, the baseplate is nickel-plated for enhanced corrosion resistance and longevity. The clip system fixing method simplifies installation, making it ideal for professionals and DIY enthusiasts alike. The baseplate is designed for a drilling depth of 12 mm, with an edge distance of 37 mm, ensuring compatibility with a wide range of applications. The baseplate accommodates a drill hole diameter of 5 mm, with a screw distance of 32 mm and a screw length of 13.5 mm, all while being shipped conveniently via UPS. Model F058139875217 is perfect for achieving a sturdy and adjustable hinge setup, providing optimal functionality for modern cabinetry solutions. Choose the Hafele 348.39.508 for a blend of quality, durability, and user-friendly design.

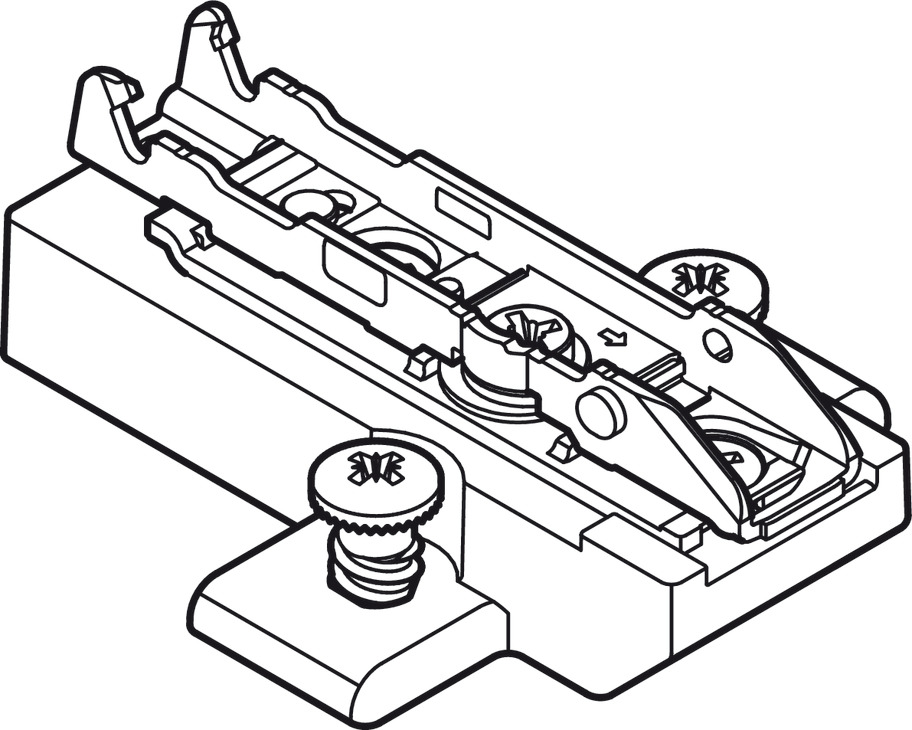

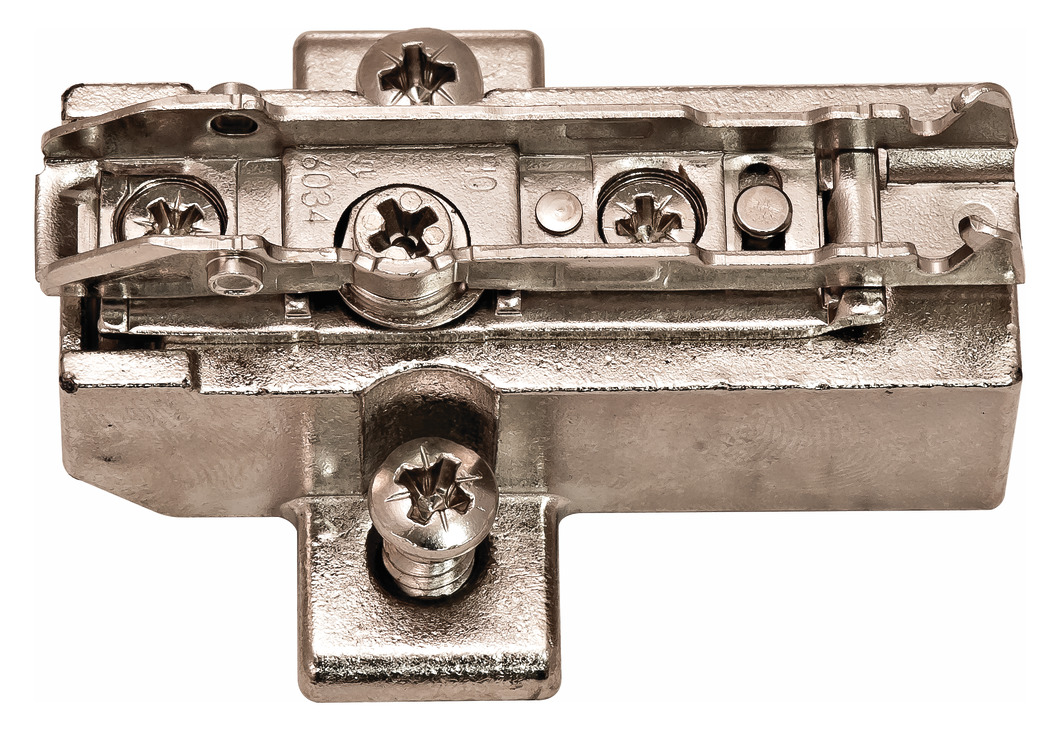

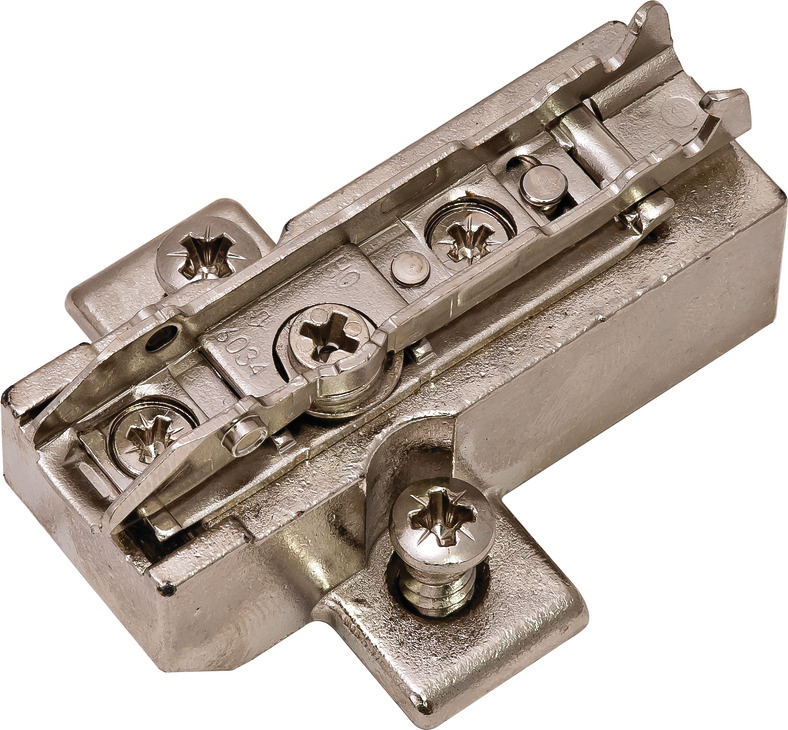

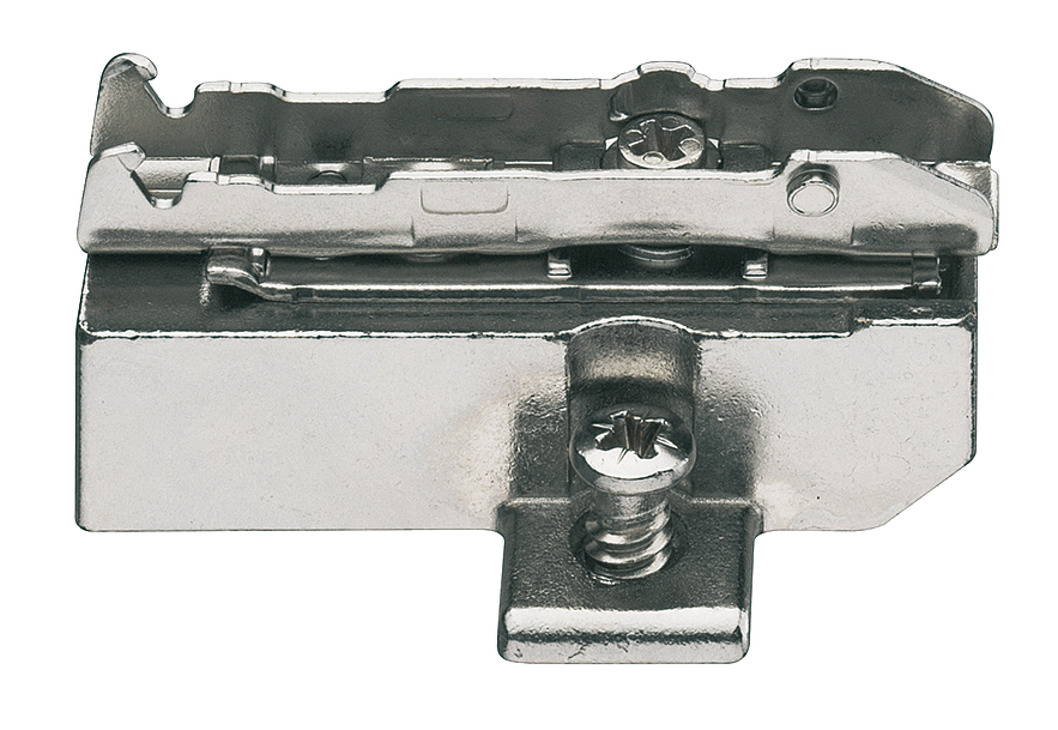

Grass - Wing Baseplate, Tiomos 2-Point Fixing with Euro Screws
Height adjustment via worm gear, Height: 19 mm, model F058139875217
Adjustment facility: Height adjustment Via worm gear ±2 mm
Area of application: for Grass Tiomos concealed hinges
Color/finish: nickel plated
Distance: 19.00 mm

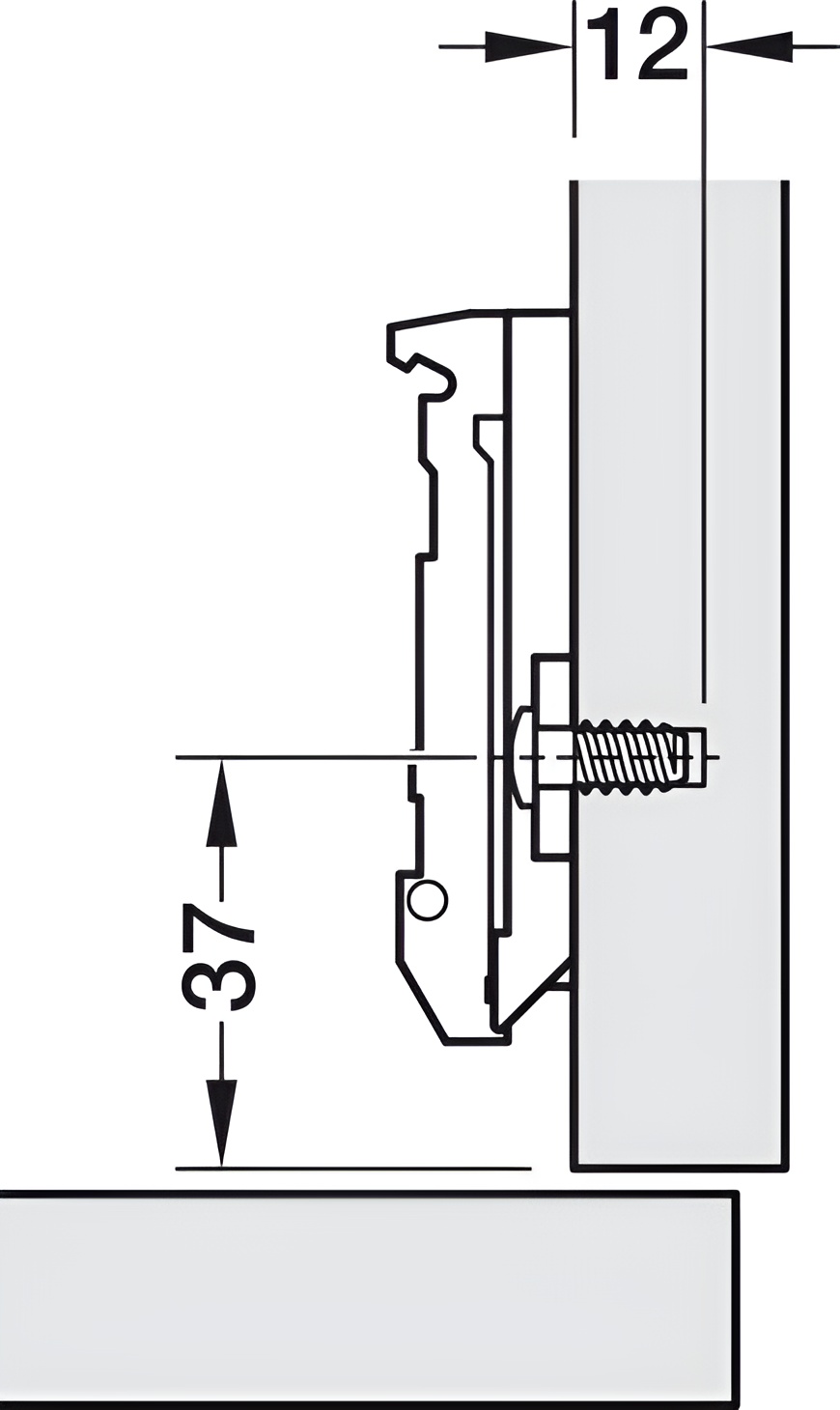

Drilling depth: 12.00 mm
Edge distance: 37.00 mm
Fixing method: clip system
For drill hole Ø: 5.00 mm
Material: Steel/Zinc ally
Model: F058139875217
Model series: Tiomos

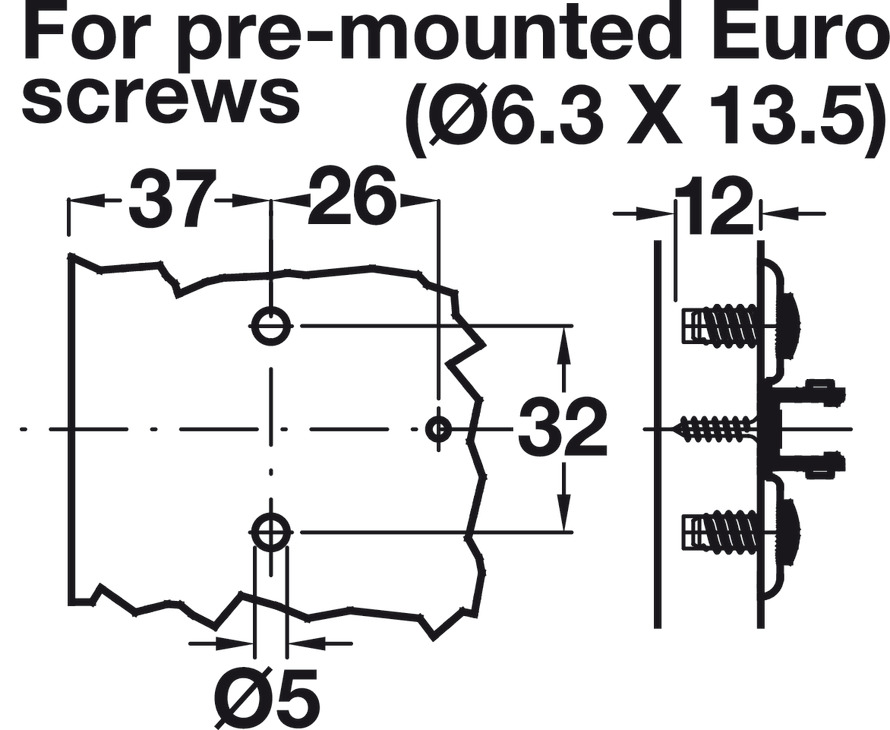

Mounting plate version: For screw fixing with pre-mounted Euro screws
Screw distance: 32.00 mm
Screw length: 13.50 mm
