Hafele 348.90.018 Concealed Face Frame Hinge offers a seamless blend of functionality and aesthetics for your cabinetry. Designed with a 1-1/2" overlay, this screw-on model (04549A-15) features a soft-close mechanism that is pre-mounted in the hinge cup, ensuring a gentle and quiet closing action. The hinge provides a generous 108° opening angle, allowing for easy access to your cabinets. Its one-piece hinge and base plate construction enhance durability while simplifying installation. With 3-dimensional adjustment capabilities, you can easily fine-tune the hinge to achieve the perfect alignment. The side adjustment facility offers a range of 1.5 mm, while height and depth adjustments provide flexibility from -2 to 2 mm and -5 to 2.5 mm, respectively. For installation, the hinge requires cup drilling with a depth of 10.70 mm and follows a drilling pattern of 45/9.5. The material is robust steel, ensuring long-lasting performance. The front and rear locating tabs assist in positioning the hinge accurately on the face frame, while flat head and pan head screws secure the hinge cup and base plate. Elevate your cabinetry with Hafele's reliable and adjustable hinge solution, designed for both professionals and discerning homeowners.

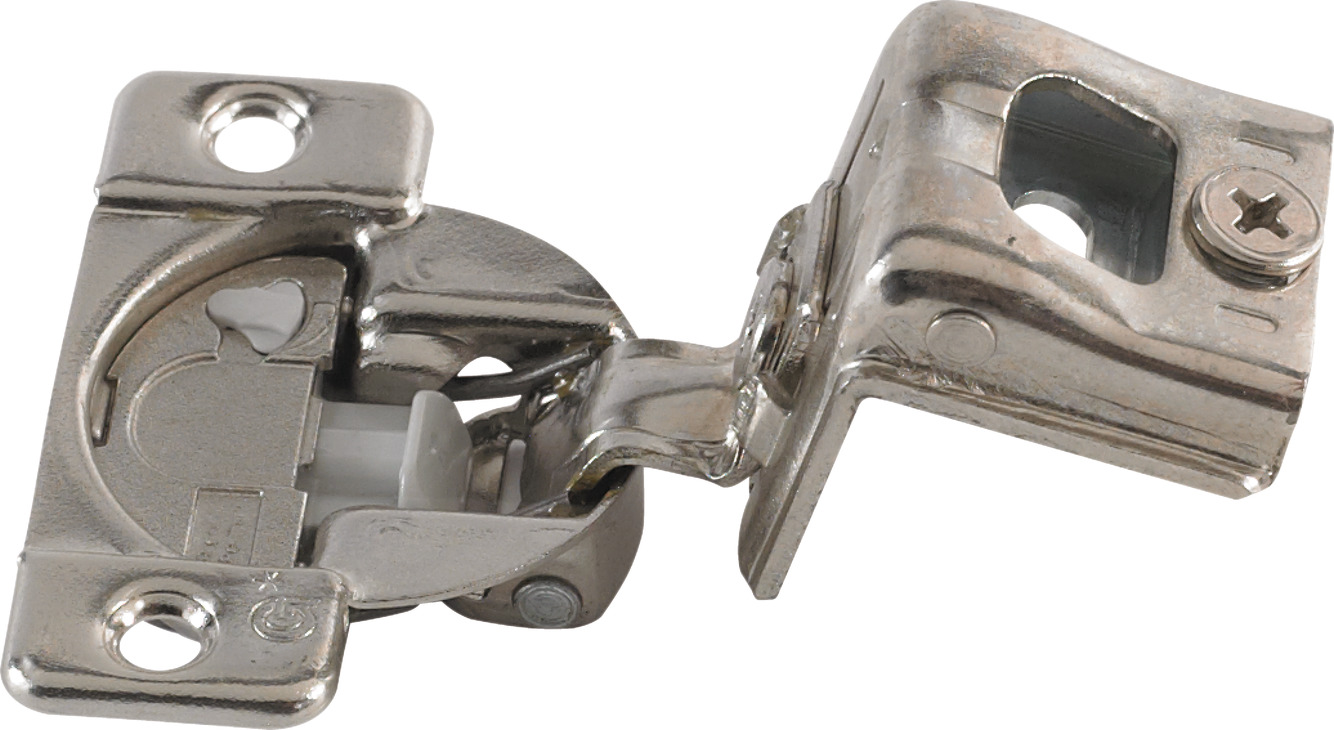

Grass - Concealed Face Frame Hinge, TEC Wrap Around, 108 Opening Angle, Soft-Close
1-1/2" Overlay, Screw-on Model 04549A-15
Adjustment facility: Side adjustment facility 1.5 mm, Height adjustment facility -2 – 2 mm, Depth adjustment facility -5 – 2.5 mm
Cup drilling depth: 10.70 mm
Door processing for assembly: with cup drilling
Drilling depth: Cup drilling depth: 7/16"
Drilling pattern: 45/9.5
Installation height: 1/4" – 1"
Material: Steel
Model No.: 04549A-15
Opening angle: 108°
