Hafele 354.65.300 Five-Knuckle Institutional Hinge offers exceptional durability and functionality for a variety of applications. Crafted from high-quality steel, this hinge is powder-coated in a sleek matt black finish, ensuring both aesthetic appeal and resistance to wear. Designed for universal usage, it accommodates 3/4" and 13/16" materials, making it an ideal choice for many projects. The hinge features knuckles that are broached for precision pin alignment, ensuring smooth operation and reliable performance. With a total width of 121.00 mm and a knuckle diameter of 10.00 mm, this hinge is built to handle rigorous demands. It boasts a remarkable opening angle of 270 degrees, providing excellent accessibility. Certified to ANSI/BHMA A-156.9-2001 Grade 1 standards, the Hafele Five-Knuckle Institutional Hinge guarantees strength and longevity. It includes pre-mounted 5 mm Euro screws for easy installation, and standard drilling equipment can be used for setup, enhancing convenience. The rounded flange shape and 2.50 mm thickness add to the hinge's robustness. With seven drill holes strategically placed, it ensures precise alignment, making it an excellent choice for both building professionals and knowledgeable homeowners seeking reliable hardware solutions.

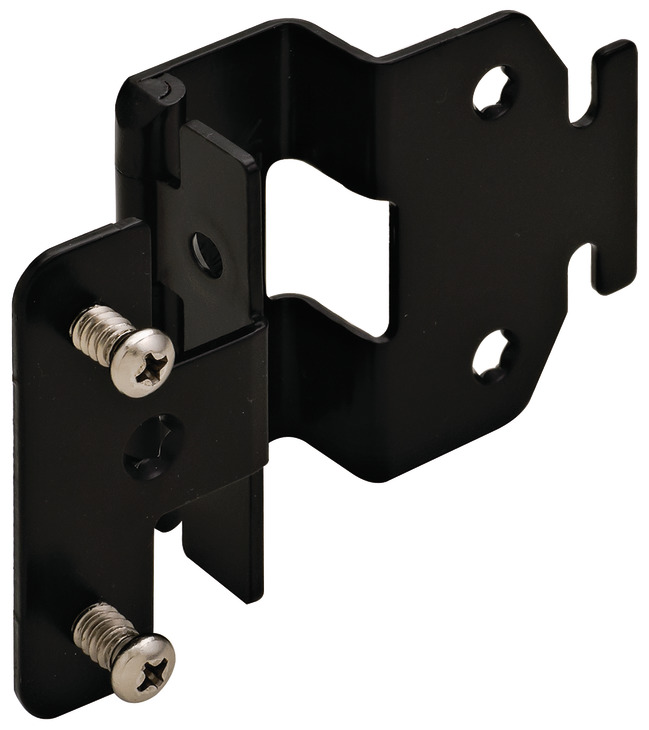

Five-Knuckle Institutional Hinge, Advantage 5 K, Grade 1, Opening Angle 270, Steel
Matt black, RAL 9005
Area of application: Universal usage on 3/4" & 13/16" materials
Color/finish: Black, matt, Powder coated
Flange shape: rounded
Flange thickness: 2.50 mm
Installation: Pre-mounted 5 mm (3/16") euro screws on door side
Knuckle diameter: 10.00 mm
Material: Steel
Number of drill holes: 7.00
Product type: Five-Knuckle Institutional Hinge
Screw Ø: 5.00 mm
Total width: 121.00 mm
Version: Pre-mounted 5 mm Euro Screws
