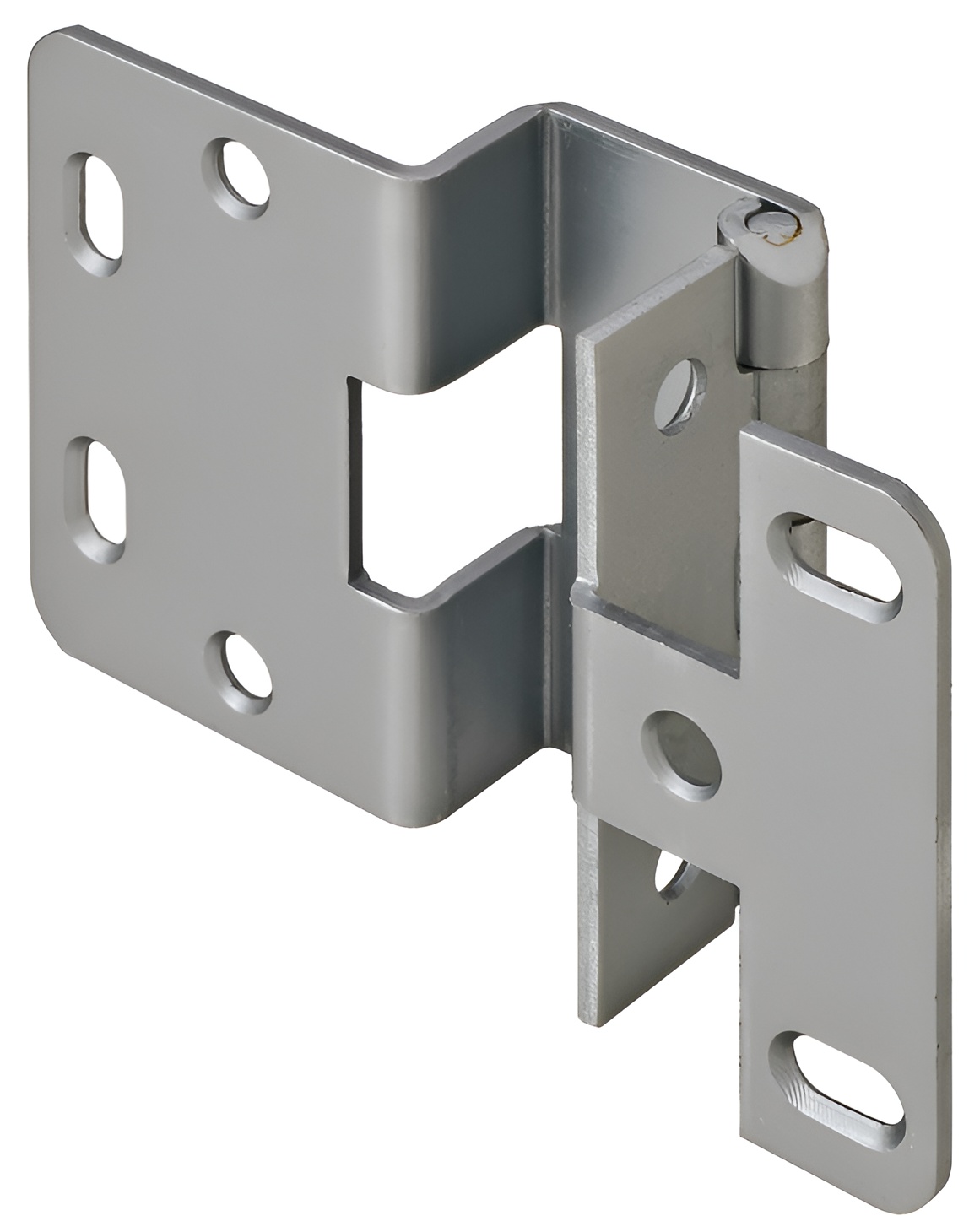

Hafele 354.65.440 Five-Knuckle Institutional Hinge, Grade 1, is designed for robust performance and exceptional durability in institutional settings. This hinge features a 270-degree opening angle, making it ideal for doors with a thickness of 13/16". Crafted from high-quality steel and finished in a sleek dull chrome plating, this hinge is tumbled to remove sharp edges, ensuring safety and longevity. Meeting industry standards, this 2 3/4" five-knuckle hinge has been rigorously tested in accordance with ANSI/BHMA guidelines, providing peace of mind for architects and builders. Its rounded flange shape not only enhances aesthetic appeal but also facilitates smoother operation, while the nine drill holes allow for secure and reliable installation. Designed with safety in mind, the hinge includes hospital tips and corners, along with a non-removable knurled tip that enhances security. Please note that screws are not included; the hinge requires #8 wood screws or 5 mm Euro screws with a 7.8 mm head for proper installation. Whether you're working on a healthcare facility, school, or other institutional projects, the Hafele 354.65.440 Five-Knuckle Institutional Hinge delivers the strength and reliability needed for high-traffic applications.
Five-Knuckle Institutional Hinge, Grade 1, Opening Angle 270 for 13/16" Door Thickness
Dull chrome plated
Crank type: L1
Flange shape: rounded
For door thickness min.: 13/16"
Material: Steel
Number of drill holes: 9.00
Product type: Five-Knuckle Institutional Hinge
Version: Hospital tips and corners for safety Non-removable knurled tip Tumbled tip to remove sharp edges
