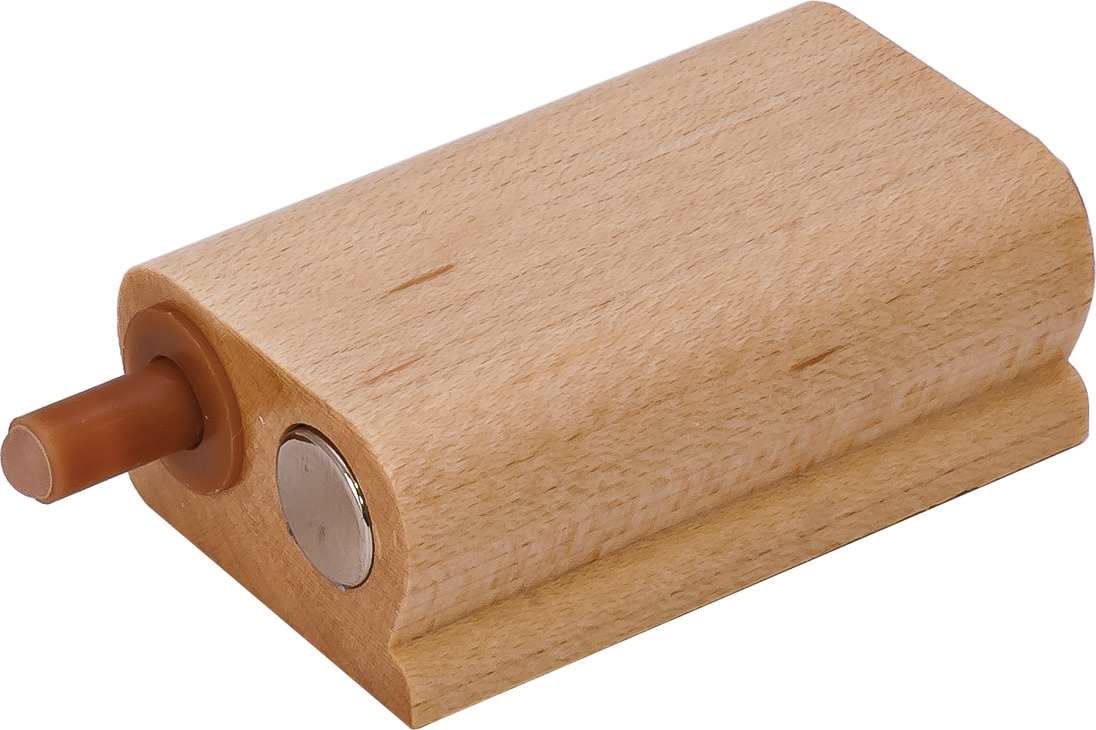

Hafele 356.31.110 Soft-Close Magnetic Catch for Single Doors offers an innovative solution for enhancing the functionality of inset doors with free-swinging hinges, ideal for high-end custom kitchen cabinets. Crafted from unfinished maple, this soft-close mechanism integrates Neodymium magnets and Smove shock absorbers to gently pull doors closed, ensuring a soft and silent operation. Designed to accommodate both frameless and face frame construction, the catch is effective even for warped doors, with the capability to handle warps up to approximately 1/4 inch. It is recommended to install two units per door-one at the top and one at the bottom-ensuring optimal performance and alignment. A rubber bumper separates the magnets, allowing for a quiet door closure. Installation is straightforward, featuring a keyhole slot that provides approximately 1/2 inch of front-to-back adjustment, accommodating the specific needs of your cabinetry. For best results, the pilot hole for the keyhole screw should be located 19 mm (3/4 inch) from the side panel and set back from the front edge by the door thickness plus 22 mm (7/8 inch). Each package includes left-hand and right-hand units with installed Smove mechanisms and magnets, along with necessary mounting screws and bumpers, making it an all-inclusive solution for your cabinetry needs.
Soft-Close Magnetic Catch for Single Doors
Maple, unfinished
Area of application: For single
Color/finish: Unfinished
Material: Unfinished maple
Soft closing mechanism installation: For screw fixing
Suitable for: Utilizes Neodymium magnets and Smove shock absorbers to gently pull doors closedMagnets are separated by a rubber bumper, so door closes quietlyAvailable for single or double-door applications2 units per door are recommended; 1 on top and 1 on bottomMagnets are strong enough to pull in warped doors (up to 1/4" approx.)Can be used on Frameless or Face Frame ConstructionFree-swinging hinges must be usedRecommended pilot hole location for keyhole screw: 19 mm (3/4") from side panel or edge of style on face frame cabinetsRecommended pilot hole location for keyhole screw: set back from front edge; door thickness + 22mm (7/8")Recommended pilot hole location for keyhole screw: for face frme construction; please provide your own shims
Supplied with: L/H & R/H with Smoves & magnets installed Mounting screws 2 door magnets with matching mounting screws 2 door bumpers
Version: Utilizes Neodymium magnets and Smove shock absorbers to gently pull doors closed Magnets are separated by a rubber bumper, so door closes quietly Available for single or double-door applications 2 units per door are recommended; 1 on top and 1 on bottom Magnets are strong enough to pull in warped doors (up to 1/4" approx.) Can be used on Frameless or Face Frame Construction Free-swinging hinges must be used Recommended pilot hole location for keyhole screw: 19 mm (3/4") from side panel or edge of style on face frame cabinets Recommended pilot hole location for keyhole screw: set back from front edge; door thickness + 22mm (7/8") Recommended pilot hole location for keyhole screw: for face frme construction; please provide your own shims
