Hafele 365.13.701 Flap Stay Fitting, Salice Pacta, is designed for seamless integration into cabinetry, providing both functionality and style. Crafted from durable zinc alloy with a sleek nickel-plated finish, this flap stay fitting boasts an automatic closing spring that ensures lids close smoothly and securely. The soft opening mechanism offers a gentle lift without the need for additional hinge connections, allowing the flap and base panel to align perfectly when open. This model accommodates lid heights of 280 to 400 mm and thicknesses ranging from 16 to 28 mm, making it versatile for various cabinet designs. With a maximum lid width of 900 mm, this fitting is ideal for larger applications. Installation is straightforward, as the fitting clips onto the cabinet, simplifying the assembly process for professionals and DIY enthusiasts alike. The Hafele 365.13.701 is supplied with all necessary components, including two hinges, two mounting plates, and screws. Please note that the Push magnetic push catch must be ordered separately. This flap stay fitting combines practicality with an elegant design, making it a perfect choice for enhancing modern cabinetry while ensuring reliable performance.
Salice - Flap stay Fitting, Pacta
Zinc alloy, nickel plated, Model B, with automatic closing spring
Color/finish: nickel plated

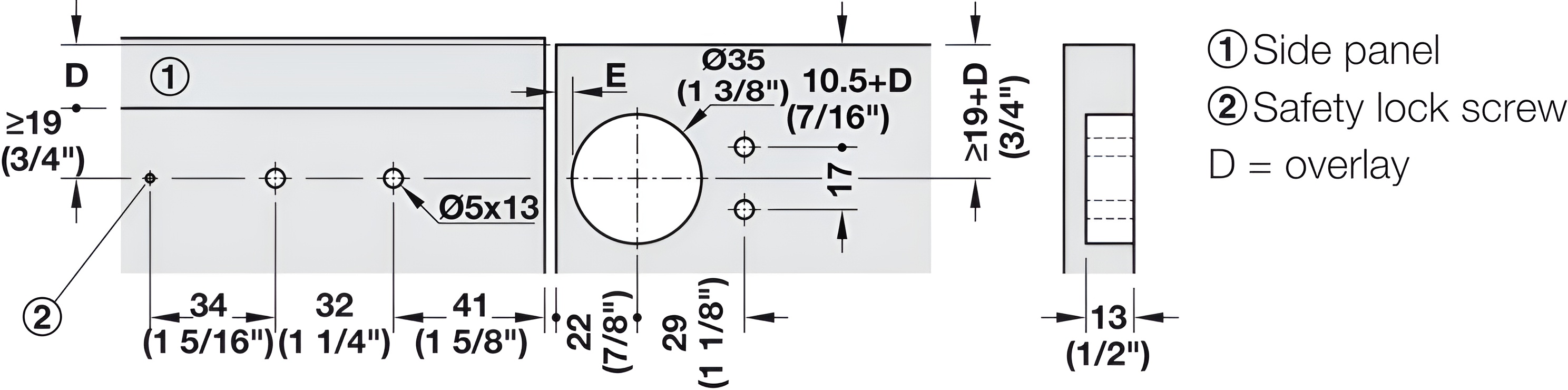

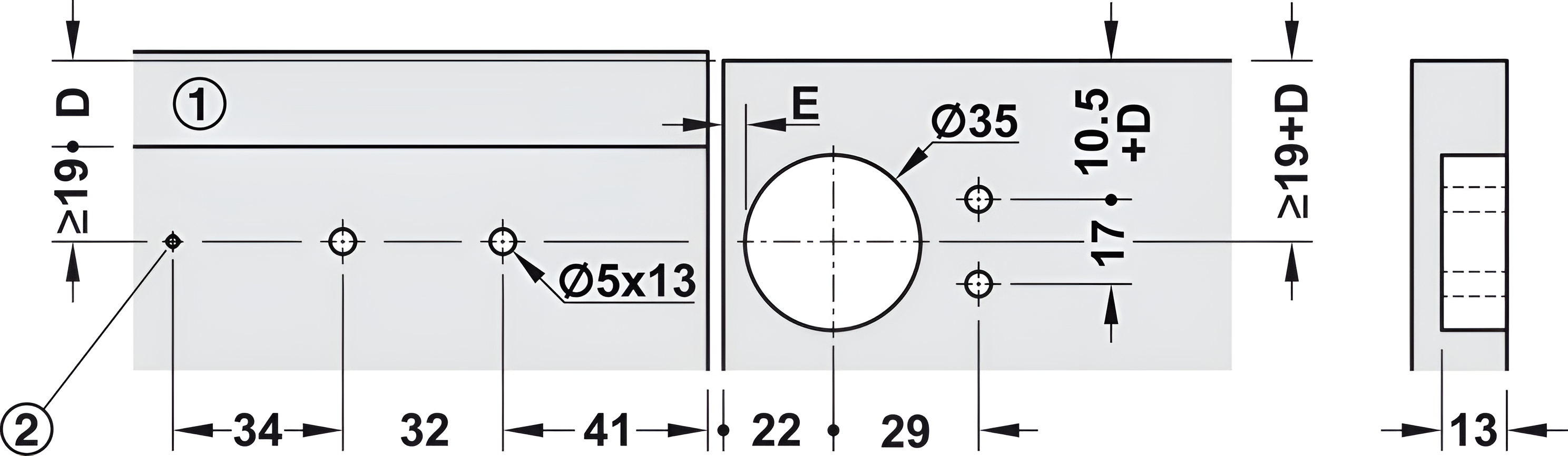

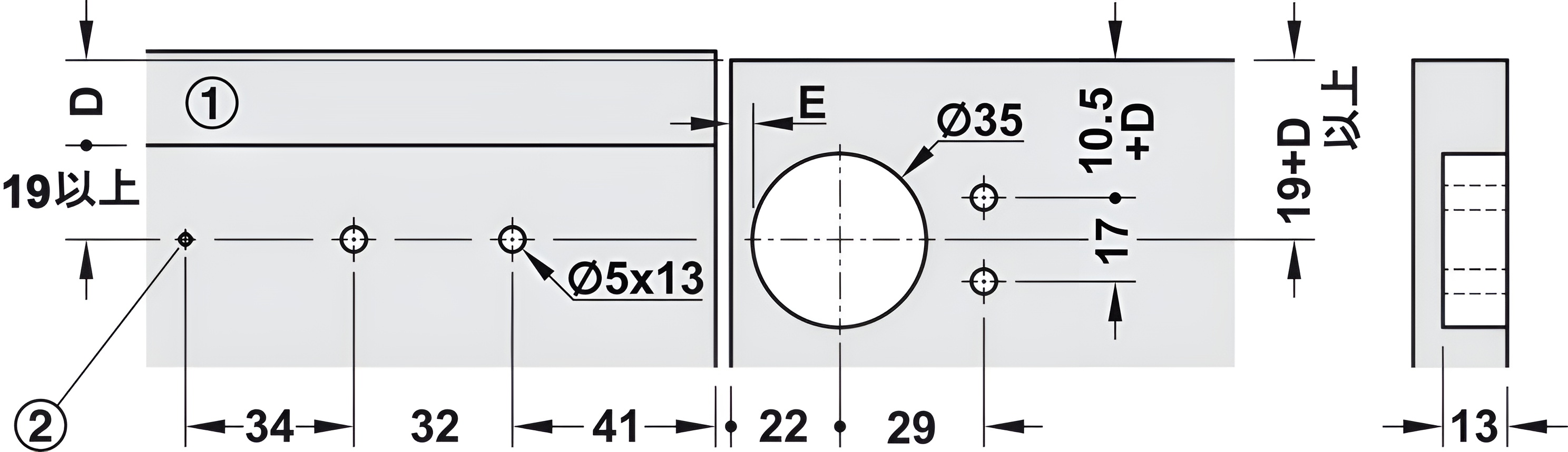

Cup drilling depth: 13.00 mm
Drilling depth: 1/2"
For door material: wood
For lid height: 280 – 400 mm

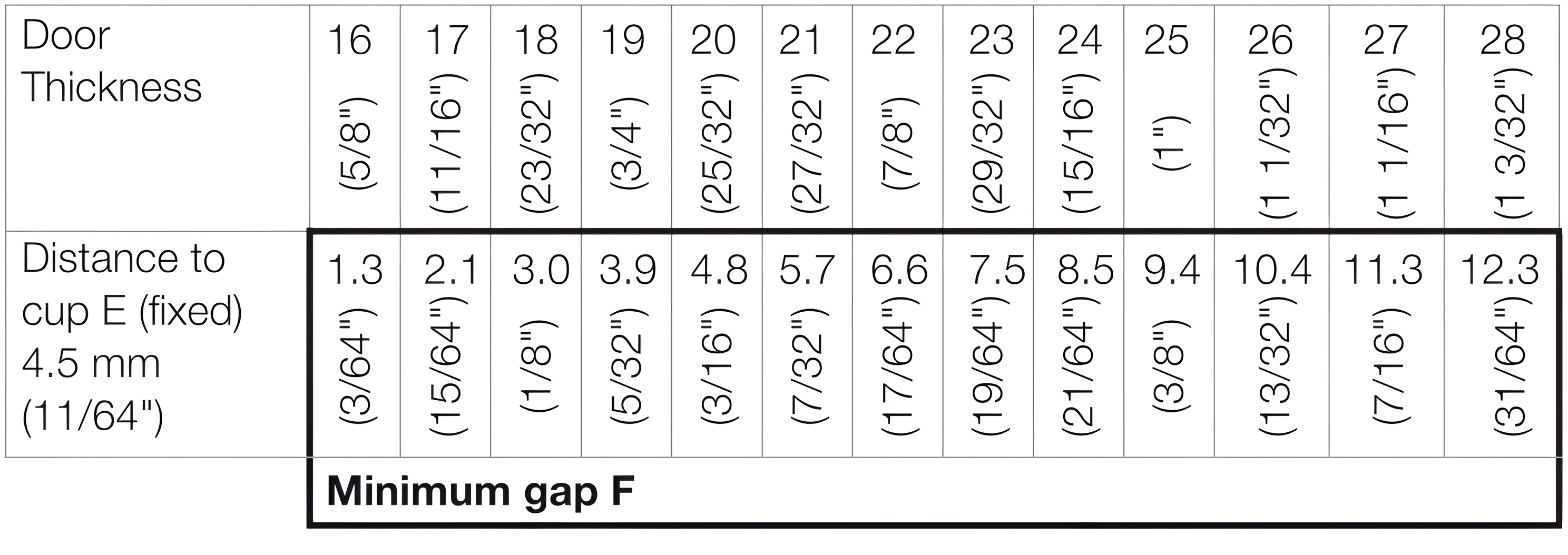

For lid thickness: 16 – 28 mm
For lid width: 900 mm
Installation: Clips onto cabinet
Lock function: With automatic closing spring
Material: Zinc alloy
Model: B
Order reference: Please order Push magnetic push catch separately.
Overlay distance: 17.00 mm
Supplied with: 2 Hinges 2 Mounting plates 2 Soft opening mechanisms Screws
