Hafele 372.33.050 Drilling Jig for Free Up, Side Wall offers an efficient solution for pilot drilling cabinet side components, specifically designed for the Häfele Free up flap fitting. This practical tool is essential for ensuring precise installation of your cabinetry, allowing you to achieve a perfect fit every time. Crafted from clear plexiglass, the jig provides visibility during the drilling process, enhancing accuracy while maintaining durability. The compact dimensions of 31 mm in length, 1 1/4" in width, and 5/8" in height make it easy to handle and store. With a drilling depth of 5/32", this jig is specifically tailored for the required pilot holes, ensuring compatibility with the base plate of your cabinetry. Positioning the jig in the left or right top corner of the cabinet enables straightforward alignment for your drilling tasks. For optimal use, it is recommended to order the depth gauge with a diameter of 5 mm (Cat. No. 001.25.792) separately. Designed to ship via UPS, the Hafele 372.33.050 Drilling Jig combines functionality and ease of use, making it a valuable addition to any professional or DIY woodworking project.

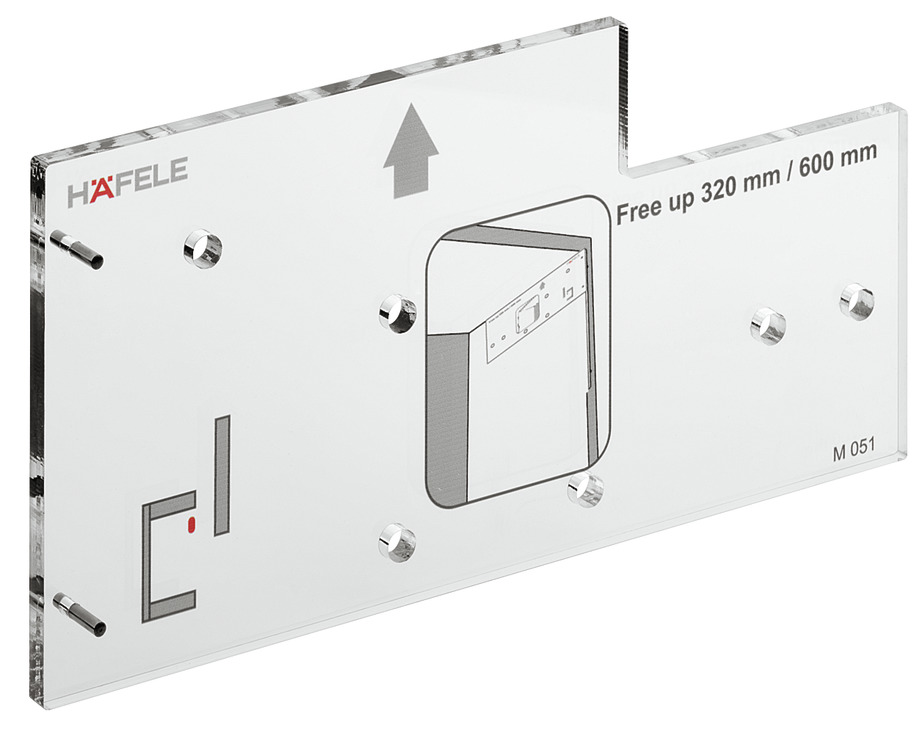

Drilling Jig for Free Up, Side Wall
for pilot drilling of the cabinet side components, Suitable for Free up flap fitting

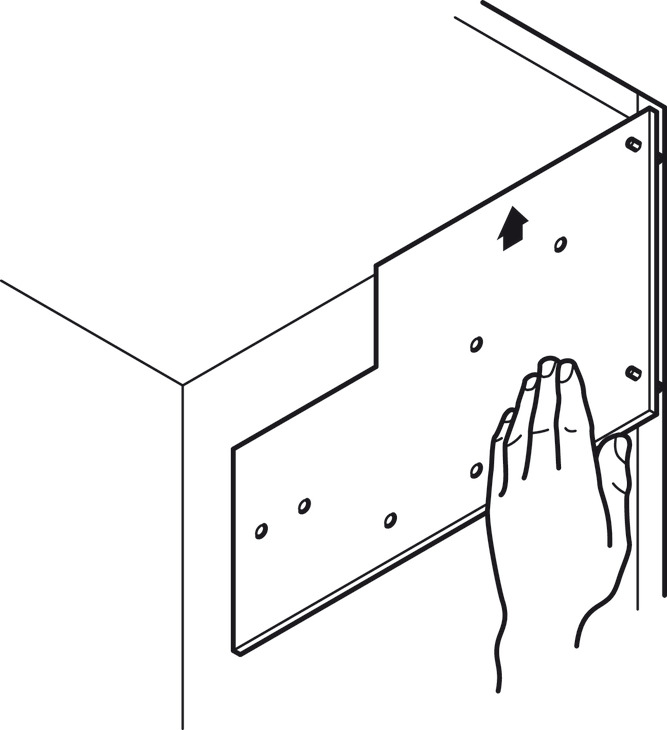

Drilling pattern, see installation instructions of the fitting. The drilling jig is positioned in the left or right top cabinet corner.
Area of application: For pilot drilling the cabinet side panels for the base plate
Depth (inch): 5/32"
Height (inch): 5/8"
Length: 31 mm
Material: Clear plexiglass
Order reference: Please order depth gauge diam. 5 mm (Cat. No. 001.25.792) separately.
Product type: Drilling Jig
Suitable for: Häfele Free up Flap fitting
Width (inch): 1 1/4"
