Hafele 372.93.100 Connecting Hinge for Connecting The Front Halves is designed for seamless integration of two-piece flaps made from wood and aluminum frames, specifically for applications with a frame width of 20 mm. This hinge ensures durability and functionality, crafted from robust steel and zinc alloy materials to withstand everyday use. Installation is straightforward, allowing for screw fixing with chipboard screws, making it a practical choice for both professional builders and skilled DIY enthusiasts. For cabinets wider than 900 mm, the recommendation is to use three center hinges, enhancing stability and support. One of the standout features of the Hafele 372.93.100 is its impressive 3-dimensional adjustment facility. Users can easily fine-tune the hinge with side adjustment of ±2 mm via an eccentric mechanism, gap adjustment ranging from -1 to +2 mm based on a standard gap size of 2 mm, and depth adjustment of ±1.8 mm. This versatility ensures that the flaps align perfectly, providing a polished and professional finish. Whether you're outfitting a new cabinet or upgrading existing hardware, the Hafele 372.93.100 Connecting Hinge is a reliable choice for achieving optimal functionality and aesthetic appeal in your furniture projects.

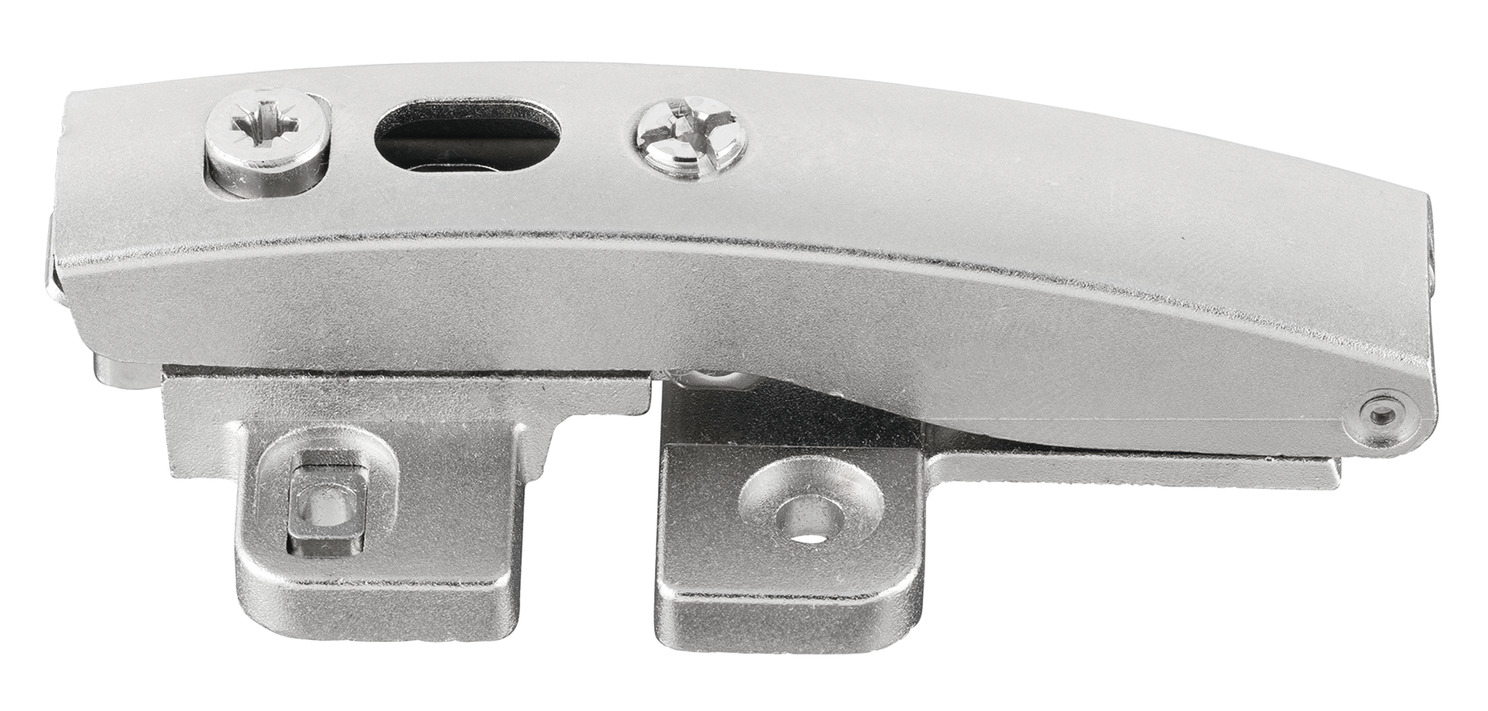

Connecting hinge for Connecting The Front Halves
For two-piece flaps made from wood and with aluminium frame, from frame width 20 mm, Installation: For screw fixing with chipboard screws
From a cabinet width of 900 mm, the use of three centre hinges is recommended.

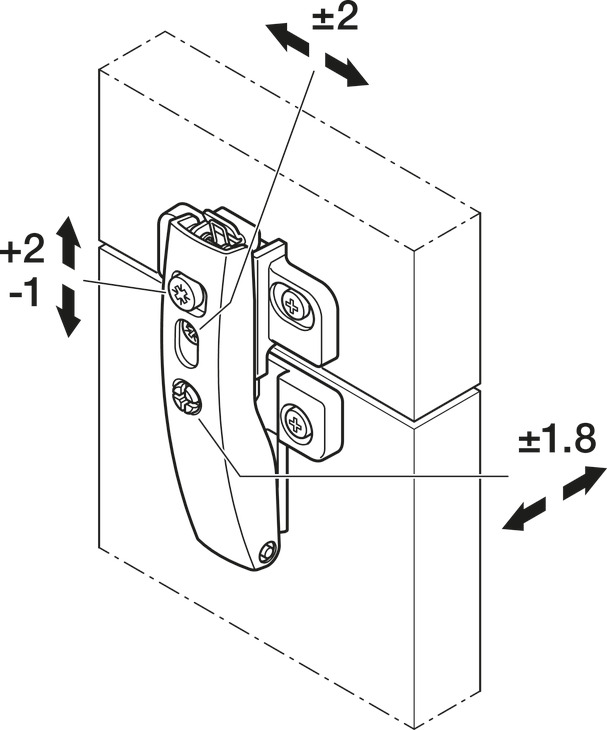

Adjustment facility: 3-dimensional, Side adjustment ±2 mm via eccentric, Gap adjustment -1 to +2 mm (based on standard gap size of 2 mm), Depth adjustment ±1.8 mm
Area of application: For two-piece flaps made from wood and with aluminium frame, from frame width 20 mm
Material: Steel/Zinc ally
