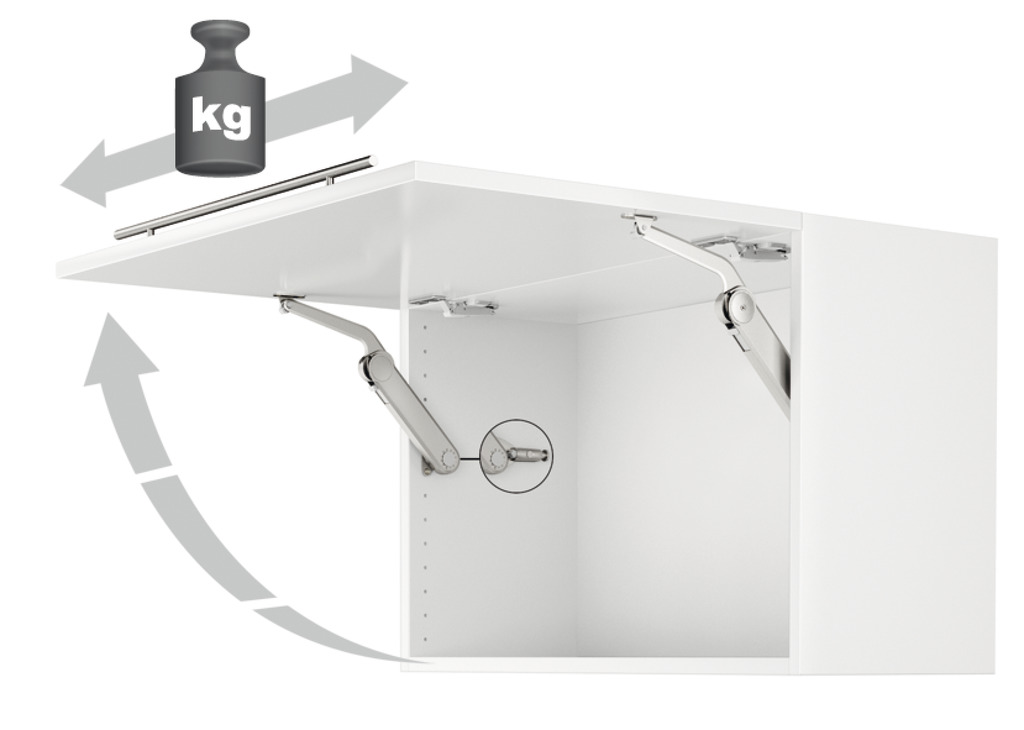

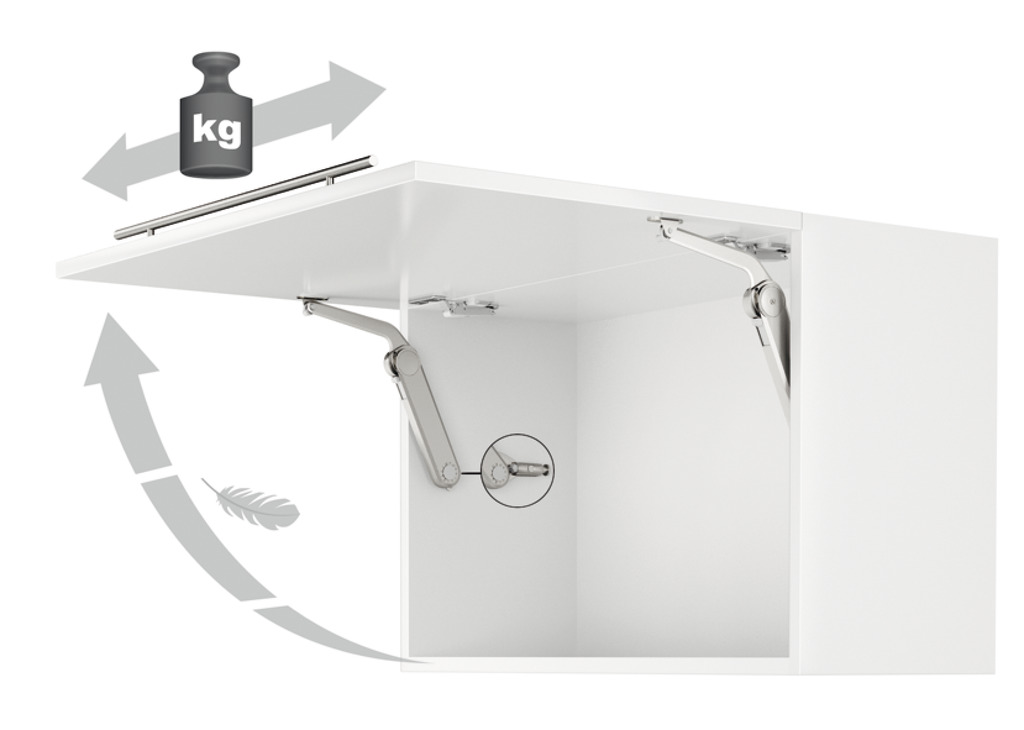

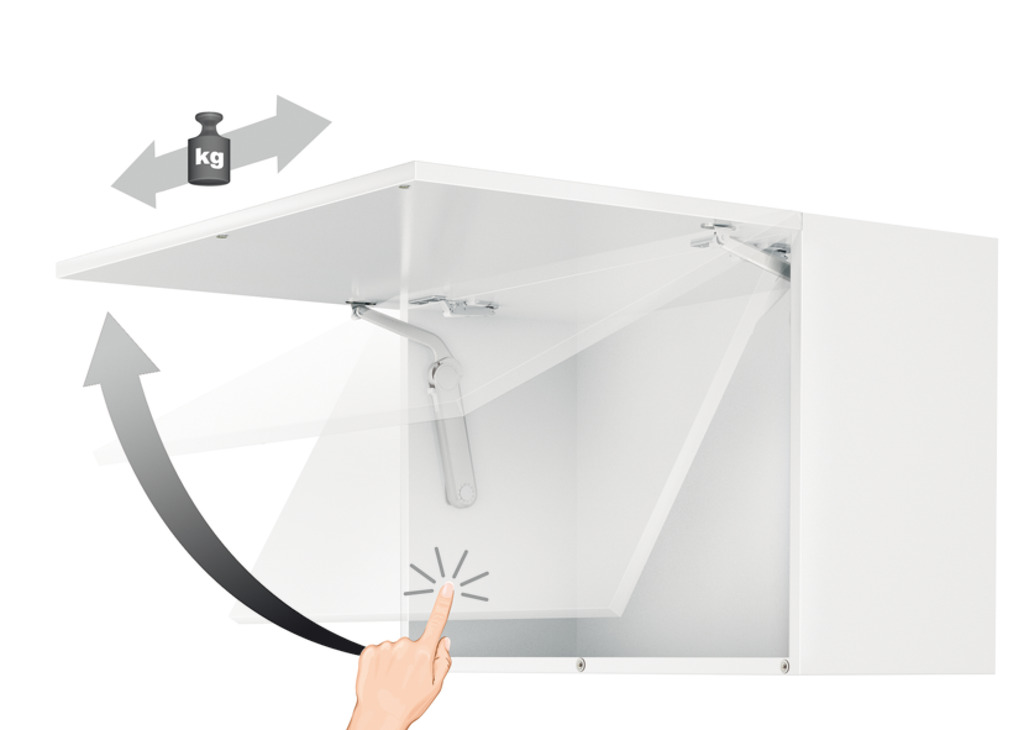

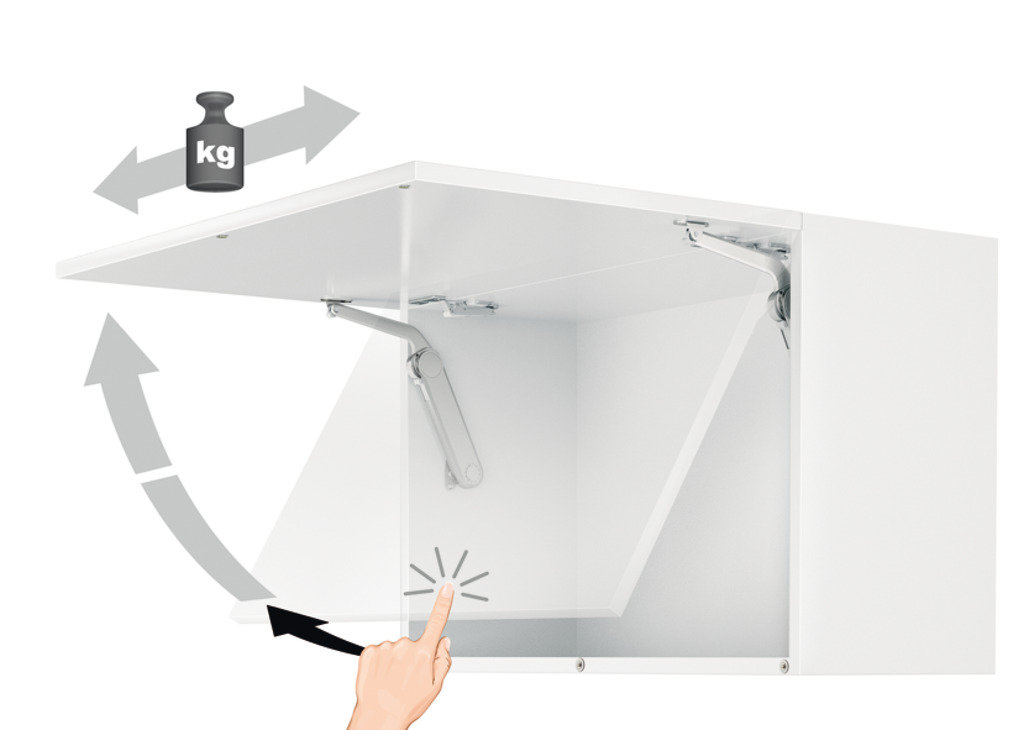

Hafele 373.69.502 Swing-Up Fitting, Maxi, Complete Set offers exceptional versatility for your cabinetry needs. Designed for wooden or glass flaps, including those with aluminum frames, this nickel-plated fitting supports effortless operation for large and heavy flaps weighing up to 50 kg, depending on the flap height and mounting situation. The innovative design features a multi-position stop function that allows the flap to rest in any desired position, adding functionality to your furniture. For enhanced user experience, a separate soft closing mechanism is available as an accessory, which can be paired with Hafele Metalla 510 Push self-opening concealed hinges or concealed hinges with an integrated soft-closing mechanism. Installation is a breeze with the tool-free clip system, enabling quick and hassle-free setup. The fitting allows for height adjustments of ±2 mm, side adjustments of +3/-1 mm, and tilting angles of ±1.5 mm, ensuring a precise fit. It is suitable for cabinet heights ranging from 300 to 1,000 mm and designed for flap widths of 600 mm (23 5/8") or more when two Maxi fittings are used. This complete set is an ideal choice for professionals seeking reliable and stylish solutions for modern cabinetry.

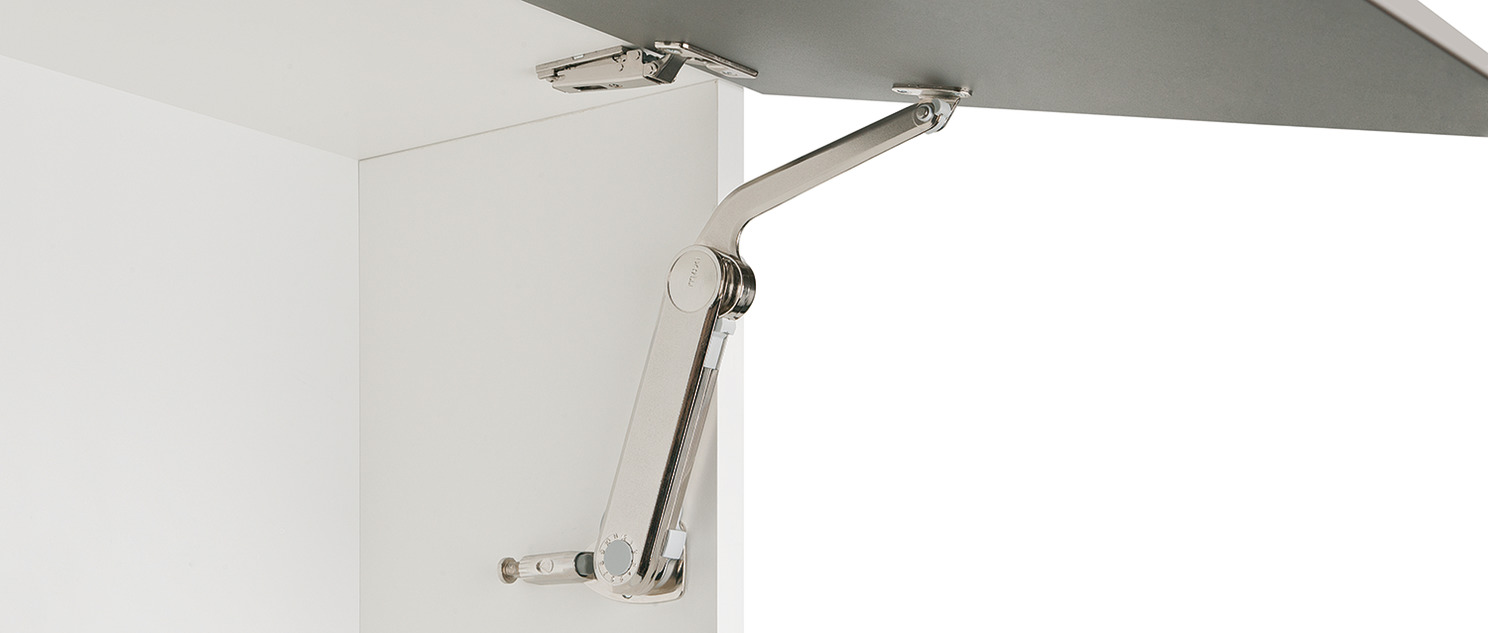

Swing-Up Fitting, Maxi, Complete Set
For wooden or glass flaps or flaps with aluminum frame, Model A, nickel-plated
Adjustment facility: height adjustment ±2 mm, side adjustment +3/-1 mm, tilting angle ±1.5 mm and adjustment facility for holding power with SW10 hex key

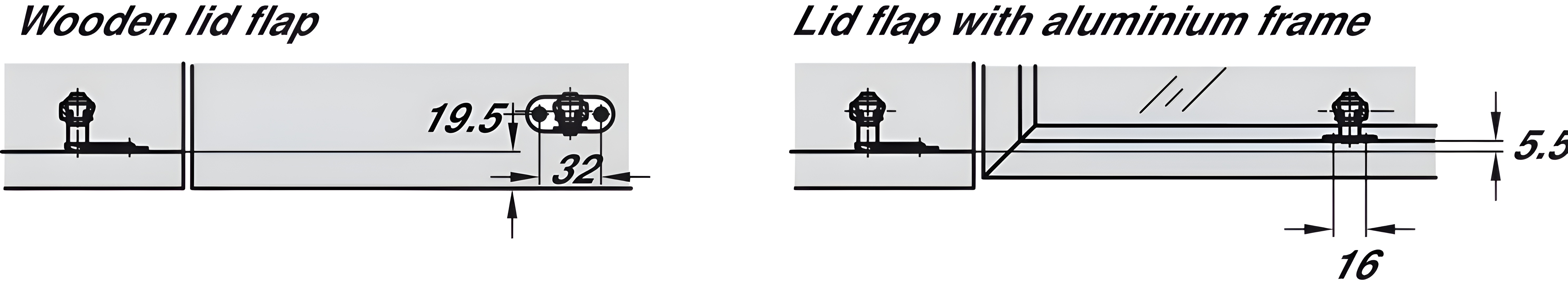

Area of application: for flaps with aluminium frame 20 mm
Color/finish: Nickel plated

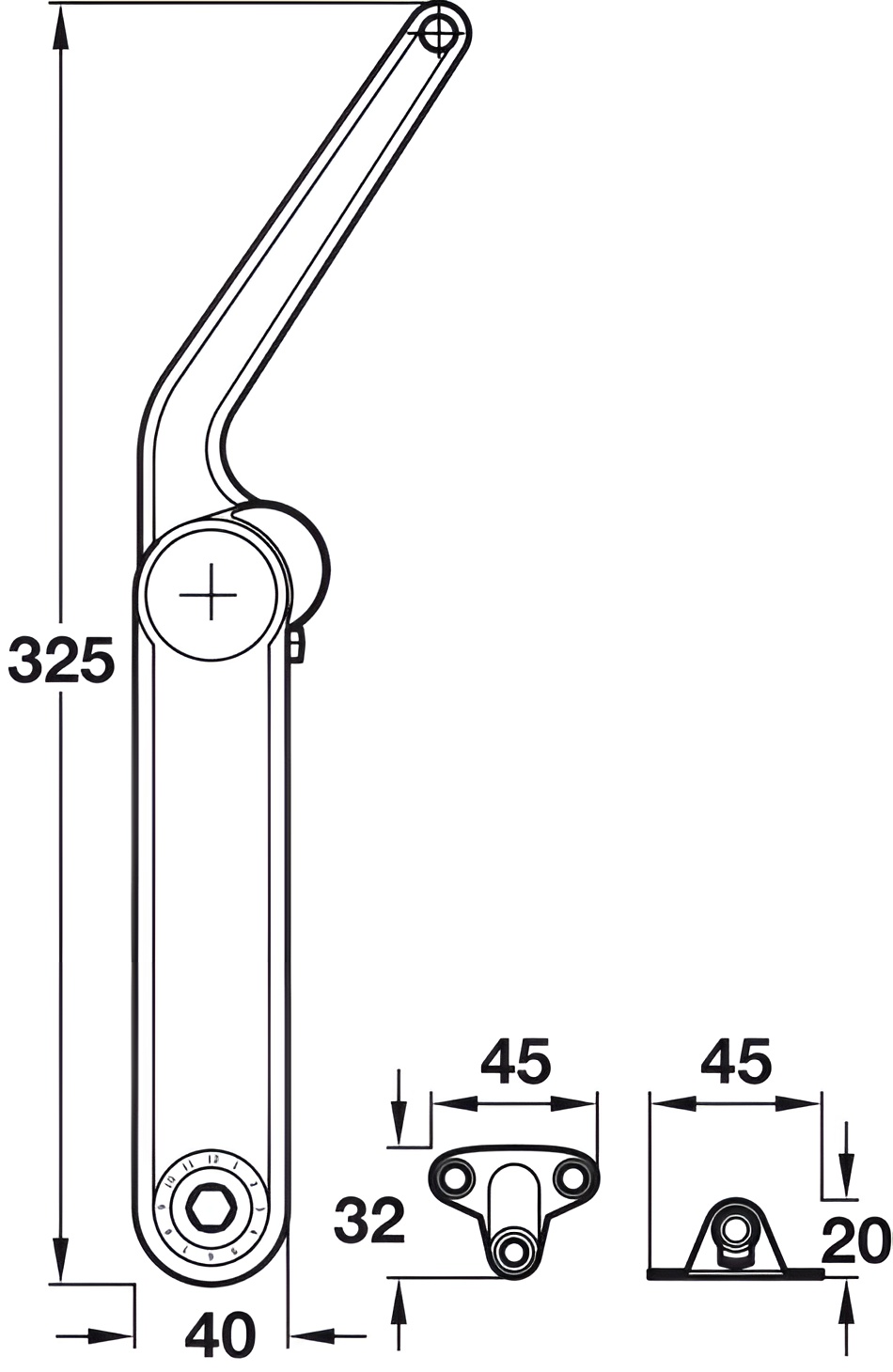

Edge distance: 37.00 mm
For cabinet height: 300 – 1,000 mm
For lid weight: ≤27.3 kg, note sample measurements table

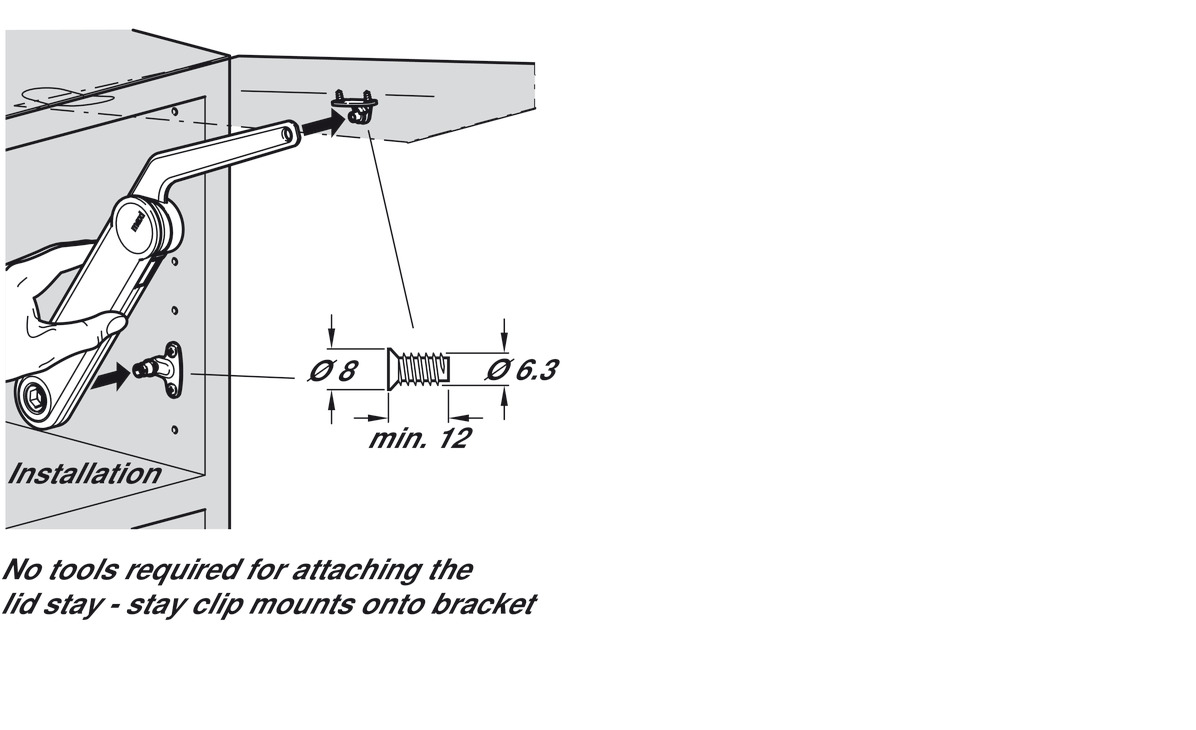

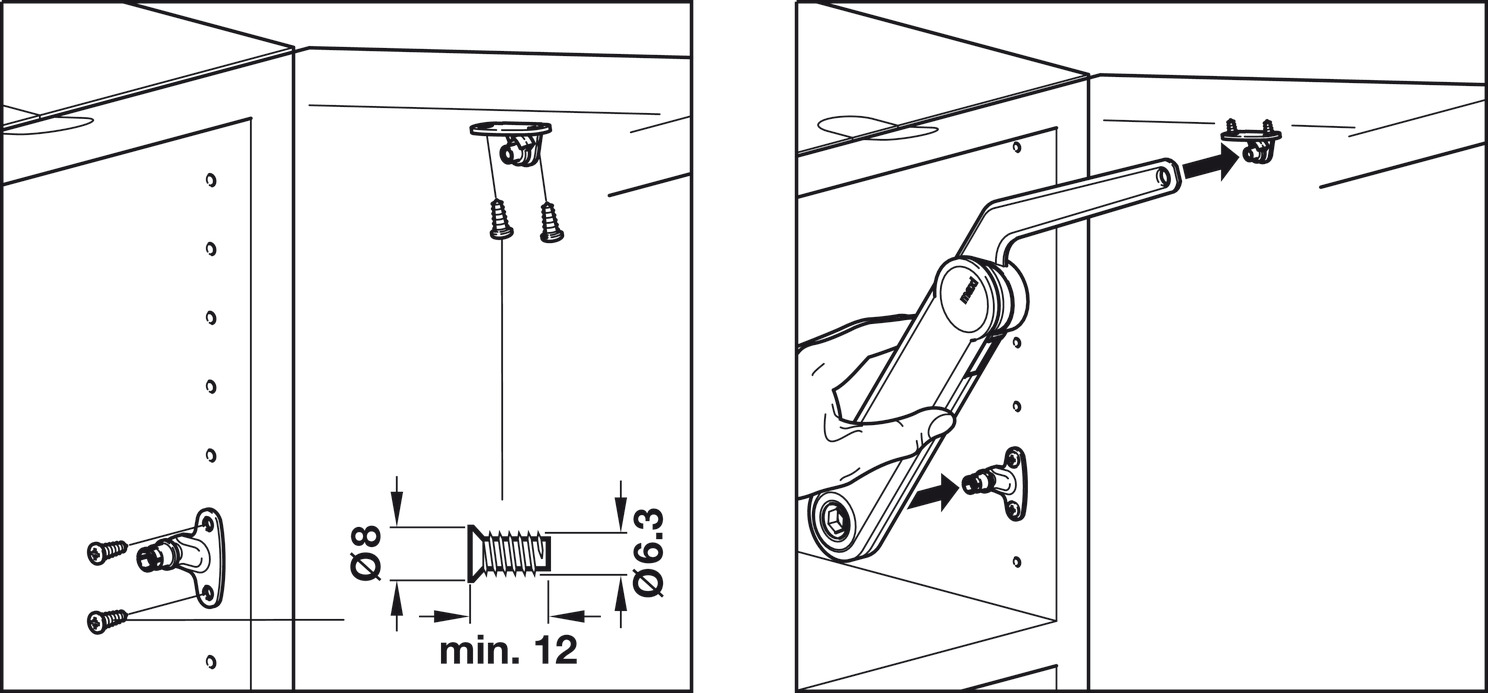

Installation: Without tools (clip system)
Lid material: Aluminum frame
Material: Zinc alloy
Model: A
Mounting: right and left hand use
Order reference: Use two Maxi fittings for flap widths from 600 mm (23 5/8") and above.

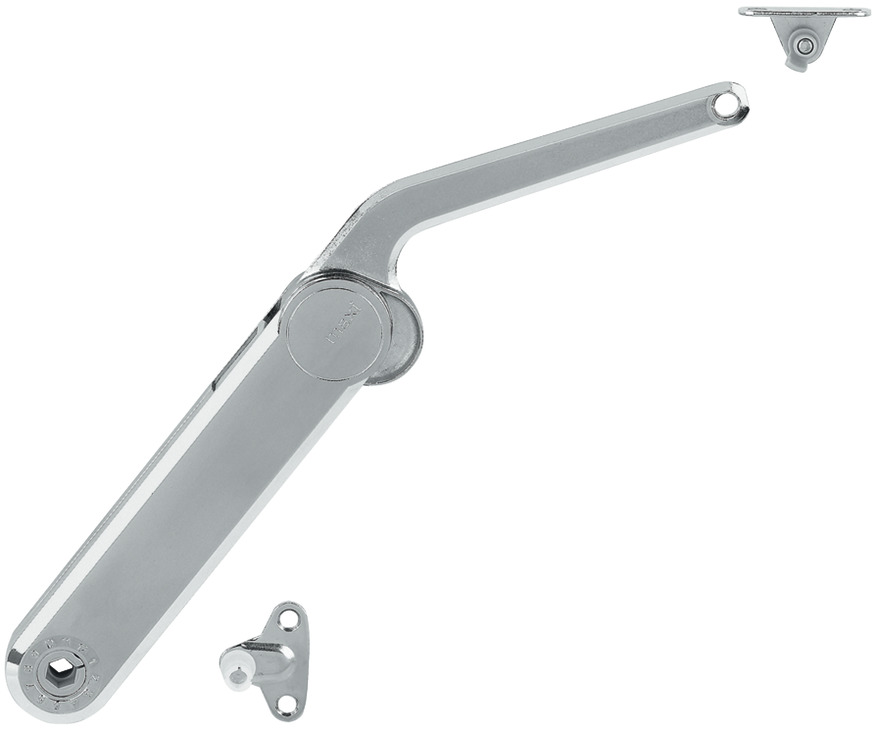

Supplied with: 1 lid stay 1 mounting bracket for cabinet 1 screw-on bracket for flap (for Euro screws)
Version: Complete set
Width (inch): Frame: From 13/16"
