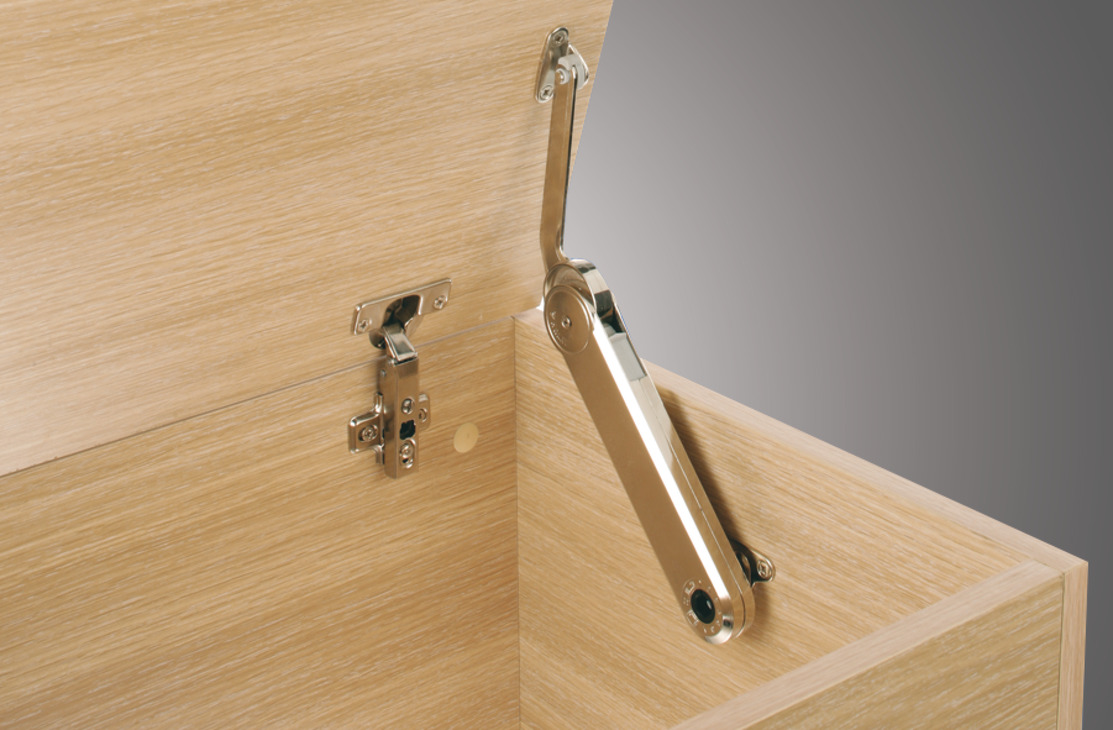

Hafele 373.85.700 Maxi Chest Stay is an essential fitting designed for use with wooden lids or aluminum frames, providing a reliable solution for cabinet applications. This individual fitting requires separate ordering of the cabinet and door brackets, making it customizable to your specific needs. With a striking nickel-plated finish and a grey safety cap, this chest stay not only performs well but also adds a touch of elegance to your cabinetry. Engineered for a one-piece flap type, the Maxi Chest Stay boasts an impressive opening angle of 75 degrees, ensuring easy access to contents. It is compatible with System 32 series drilled holes, and installation requires concealed hinges and mounting plates, which are sold separately. For optimal performance, particularly with lids wider than 600 mm (23 5/8"), it is recommended to use two fittings along with two soft-closing mechanisms. Additionally, the installation process is straightforward, with adjustment made using a 10mm hex key. The suggested use of a soft-closing mechanism enhances the user experience by ensuring a gentle, controlled lid closure. With trial mounting recommended, the Hafele Maxi Chest Stay is a practical choice for both building professionals and discerning homeowners seeking quality and functionality in their furniture fittings.
Maxi Chest Stay, Maxi up for lids made of wood or with aluminum frame
Individual fitting, order cabinet bracket and door bracket separately, Version F
Piano or other hinges are not recommended.
Area of application: For wood or aluminum doors
Color/ Finish cover: Adjusting screw: Blue
Color/finish: Nickel plated, safety cap: Grey
Flap type: one-piece
For cabinet depth: 400 – 600 mm

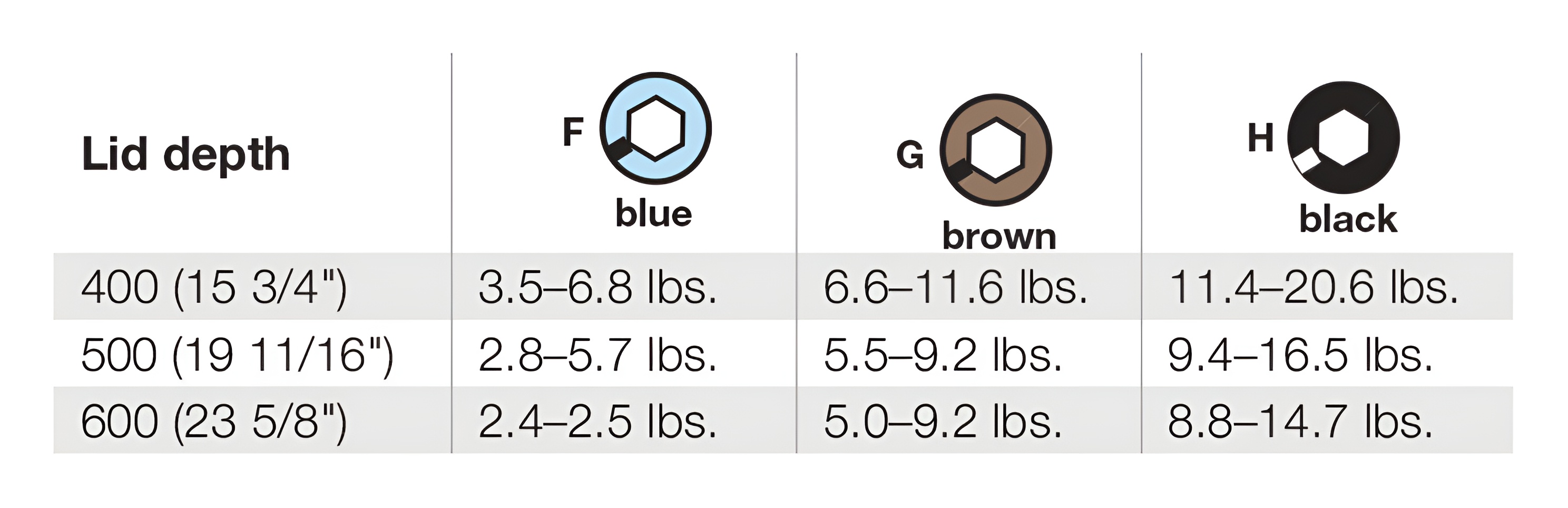

For lid weight: ≤18.8 kg, Note sample measurements table
For series drilled holes: System 32
Installation: Concealed hinges and mounting plates are required for installation. Soft-closing mechanism is recommended. For lids over 600 mm (23 5/8") wide, use 2 fittings and 2 soft closing mechanisms. Adjust with a 10mm hex key.
Installation reference: Trial mounting is recommended.
Lid material: Wood, Aluminum frame
Material: Zinc
Model: F
Mounting: right and left hand use
Opening angle: 75 °
Order reference: Cabinet mounting bracket, soft closing mechanism, 10mm hex key, concealed hinges and plates are sold separately.
