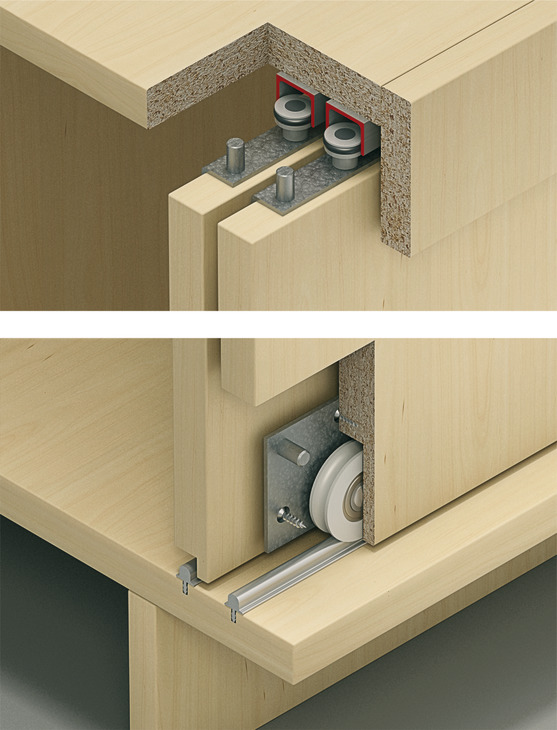

Hafele 402.23.002 Sliding Door Hardware, Slido F-Line15 55A, set offers a robust solution for bottom running wood doors, accommodating weights up to 121 lbs. This versatile set is designed for two doors, making it ideal for both residential and commercial applications. The hardware features outstanding running characteristics, thanks to large diameter rollers that ensure smooth and reliable operation. One of the key advantages of this system is its separate running and guide tracks, which eliminate any restrictions related to door thickness. Suitable for doors with a thickness of 16 to 19 mm, the system includes an easy height adjustment facility, allowing for fine-tuning within a range of ±2 mm. The installation process is straightforward, with a clear emphasis on drilling patterns as specified in the instructions. This set includes all necessary components, such as four running gears, buffers, anti-derailment devices, guides, and a door stopper, though the top guide and bottom running tracks must be ordered separately. With a maximum capacity of two to three doors per system and ball-bearing guided running gear, the Hafele Slido F-Line15 ensures durability and performance, making it a reliable choice for enhancing any space with stylish sliding doors.
Sliding Door Hardware, Slido F-Line15 55A, set
For Bottom Running Wood doors, for Door Weights up to 121 lbs., for 2 doors, with height adjustment

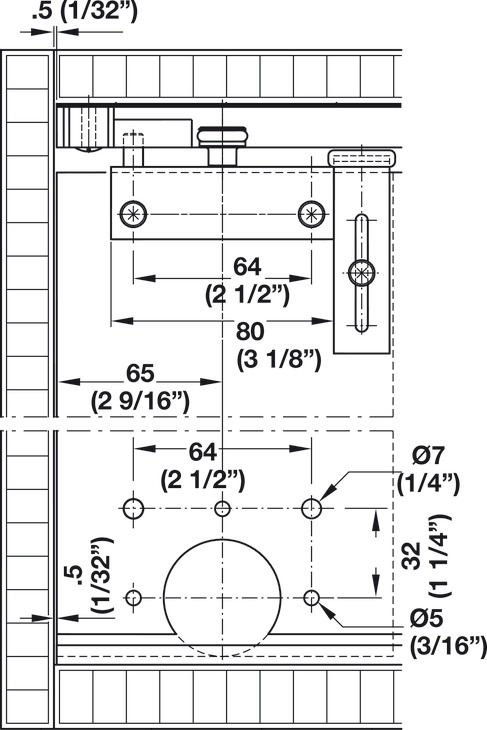

The position of the running gears depends on the choice of running tracks. Please note the drilling patterns in the installation instructions.
Adjustment facility: Height adjustment facility: -2 – 2 mm, Height ±2 mm
Area of application: For door weights up to (121 lbs.) 55 kg
Cabinet version: with bottom running door wings

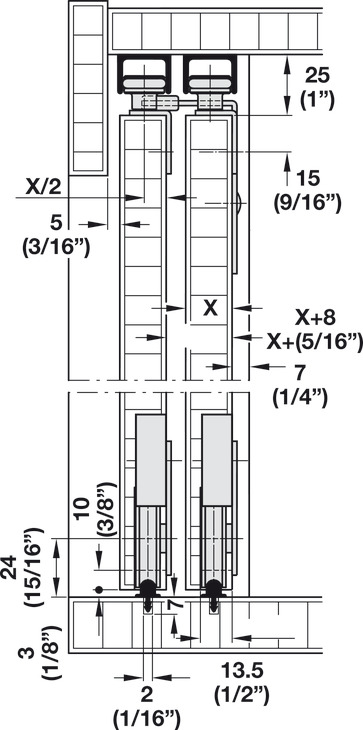

For door thickness: 16 – 19 mm
For door weight: ≤55 kg
Height adjustment: -2 – 2 mm
Height adjustment facility: ±2 mm
Material/finish: Rollers: PlasticAxis: Steel
Number of doors: 2.00
Number of doors per system max.: 2 to 3
Number of rollers: 1.00

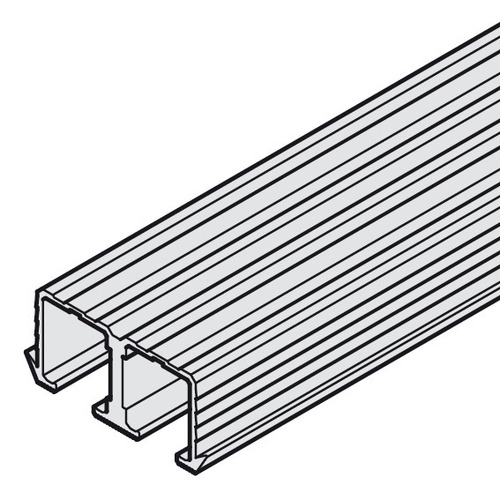

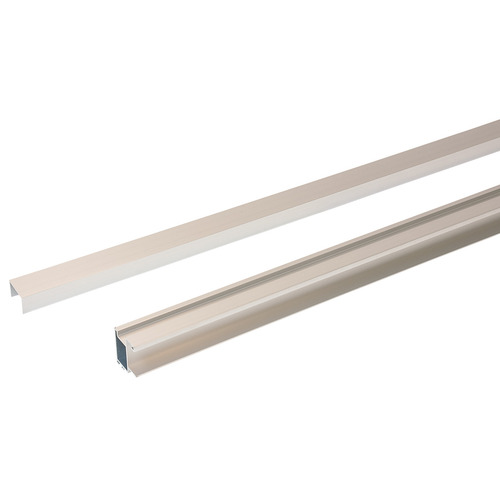

Order reference: The top guide and bottom running tracks are not included in the set. Please order separately.
Running gear guided by: Ball bearing
Running position: Bottom
Set: Set without tracks

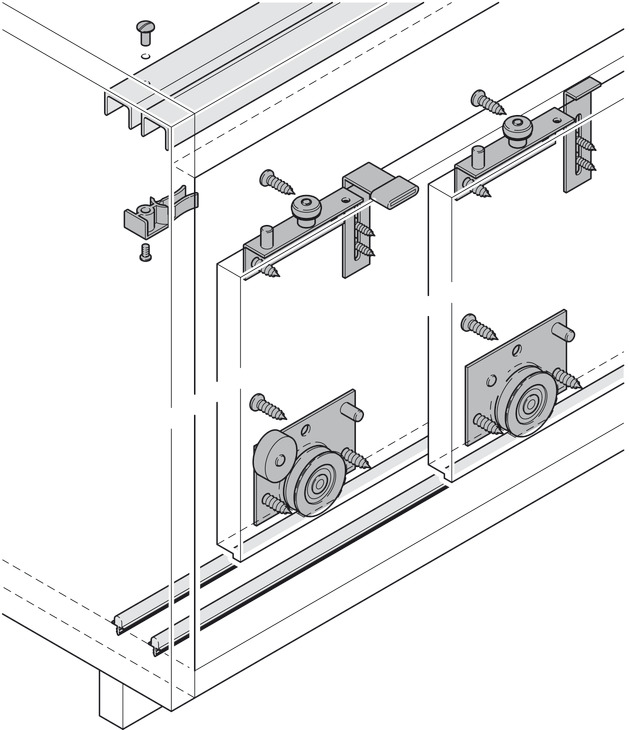

Supplied with: 4 running gears 2 height adjustments 2 buffers 4 anti-derailment devices (1 for rear door/3 for front door) 4 guides 1 door stopper
Type of opening: linear
Version: with height adjustment
