Hafele 402.23.803 Single Upper Guide is a robust solution designed for top-mounted sliding doors in the Hafele Slido F-Line system. With a length of 3,500 mm (11' 5 13/16"), this single-track upper guide supports doors weighing up to 121 lbs (55 kg), making it ideal for a variety of applications in both residential and commercial settings. Crafted from high-quality aluminum, the guide boasts a sleek, un-drilled design, allowing for seamless integration into your existing door system. It accommodates door thicknesses starting from 16 mm, ensuring versatility for different project requirements. The guide’s dimensions of 22 mm in width and 16 mm in height provide a discreet yet sturdy support structure. This product is specifically suited for the Hafele Slido F-Line series, ensuring compatibility and reliability in performance. With its top position installation, the guide is designed to enhance the overall operation of sliding doors, offering smooth and quiet movement. Whether you’re a building professional or a knowledgeable homeowner, the Hafele 402.23.803 Single Upper Guide combines functionality with quality craftsmanship, making it an essential component for your next project. Plus, it ships conveniently via UPS, ensuring prompt delivery.

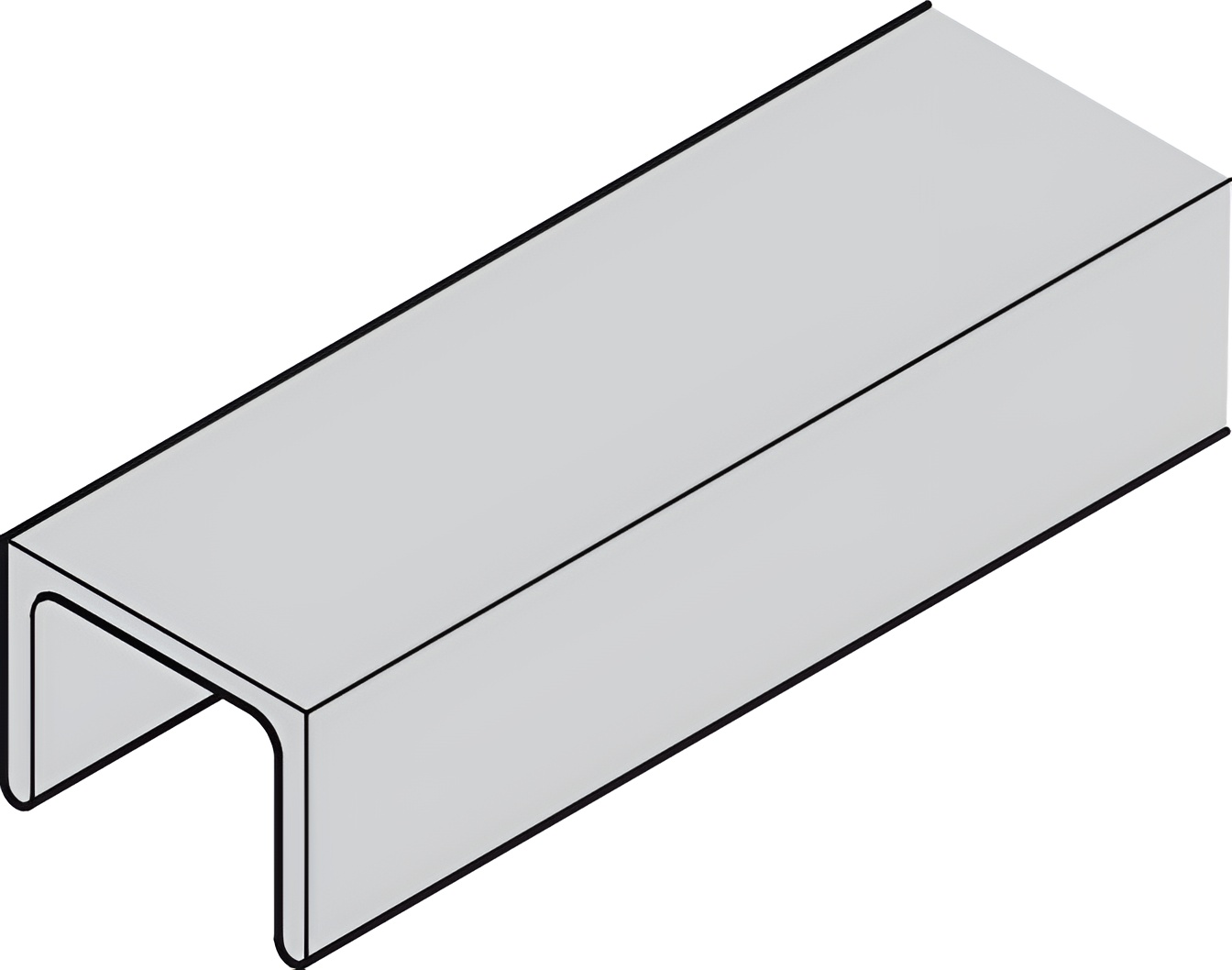

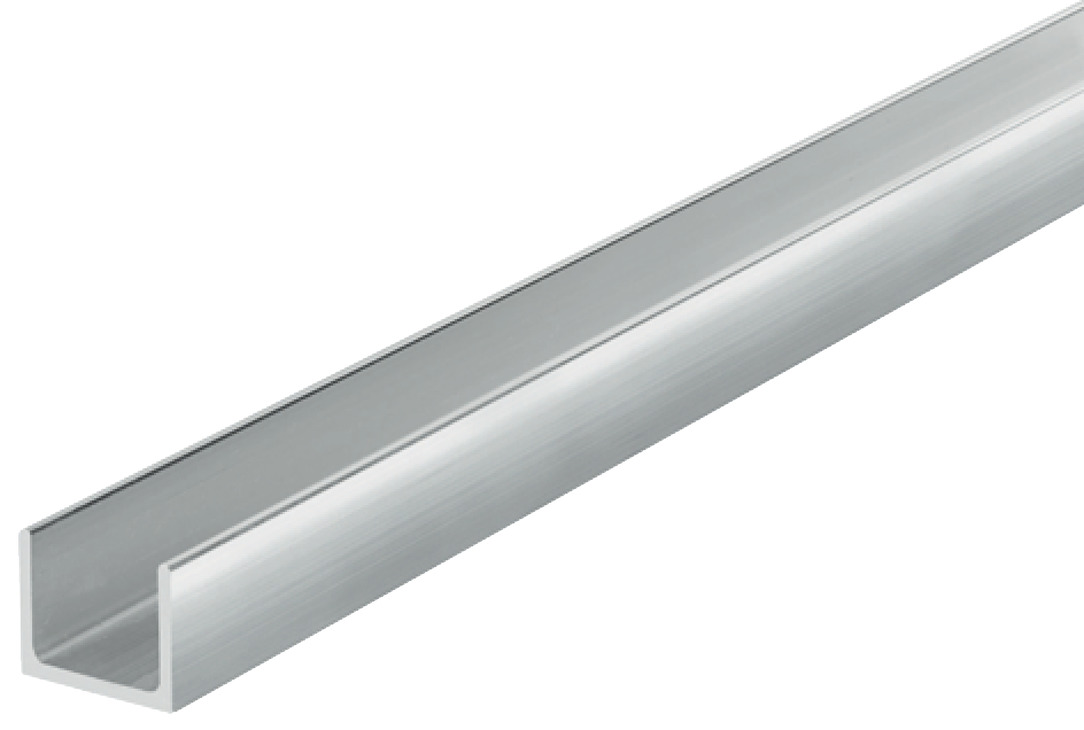

Single Upper Guide, top, single-track, un-drilled
Hafele Slido F-Line15 55A, 11' 5 13/16" 3.5 m
Area of application: Top
Color/finish: blank

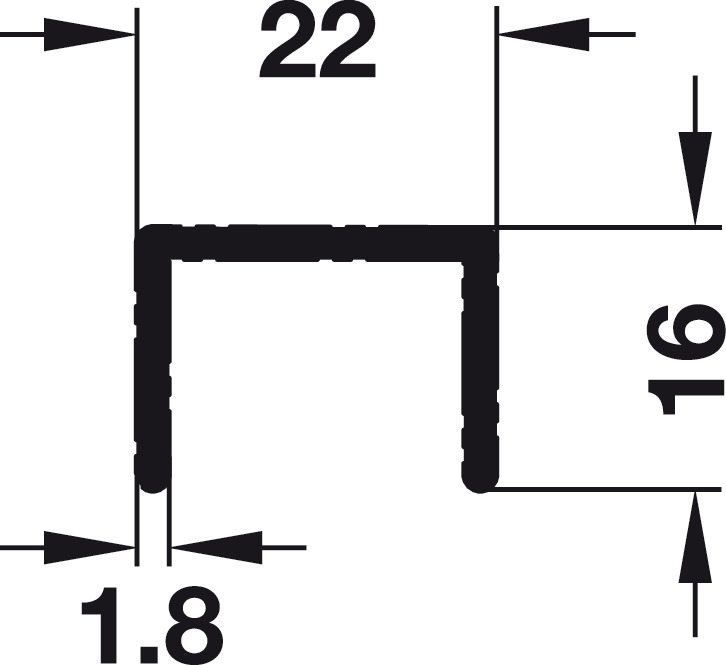

Dim. ( W x H): 22 x 16 mm
Door weight max.: 121 lbs
For door thickness: ≥16 mm
For door weight: ≤55 kg
Length: 3,500 mm
Length (inch): 11' 5 13/16"
Material: Aluminum
Position: top
Product type: Single Upper Guide
Suitable for: Häfele Slido F-Line
Track version: Single
Version: single running non-perforated
