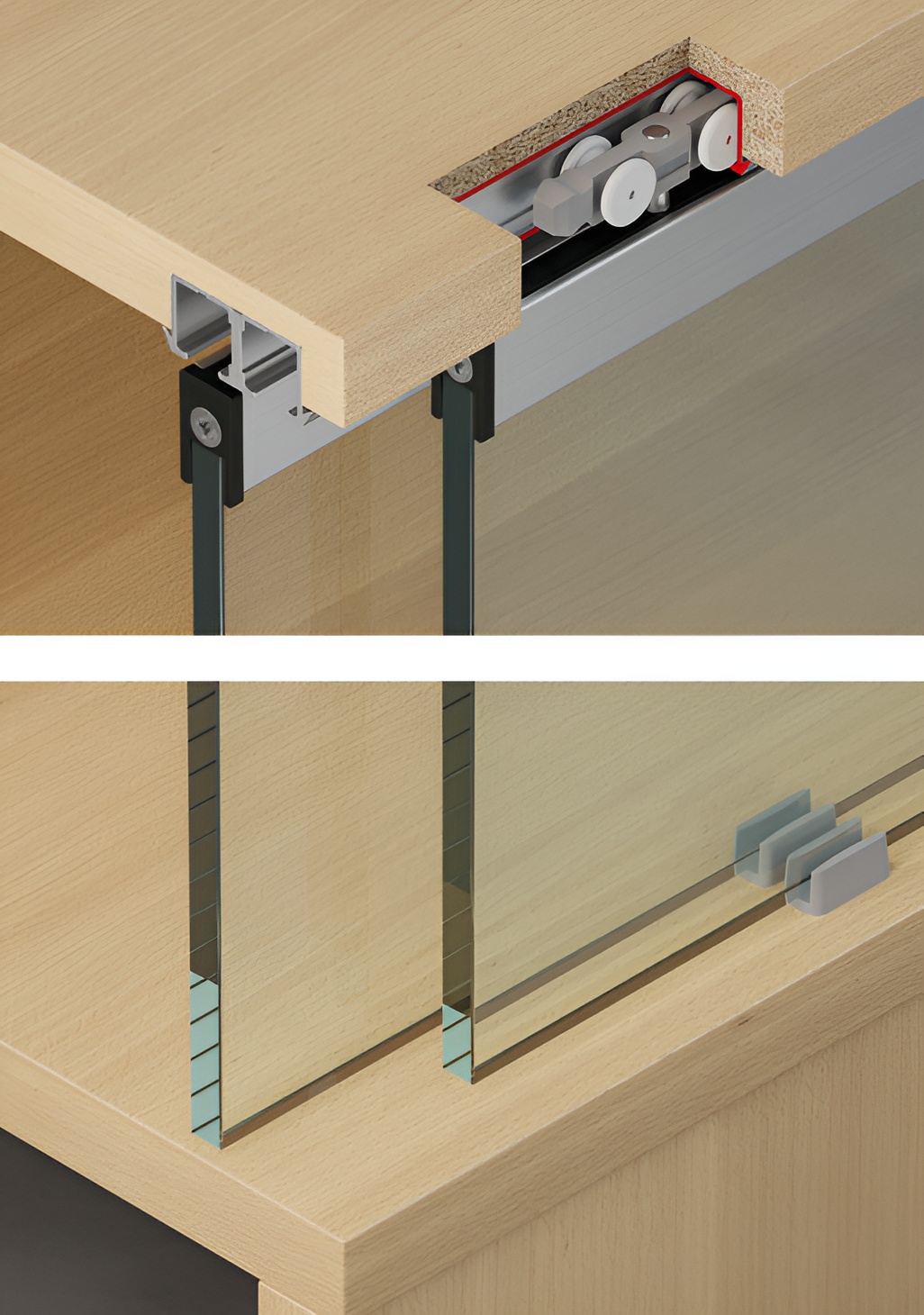

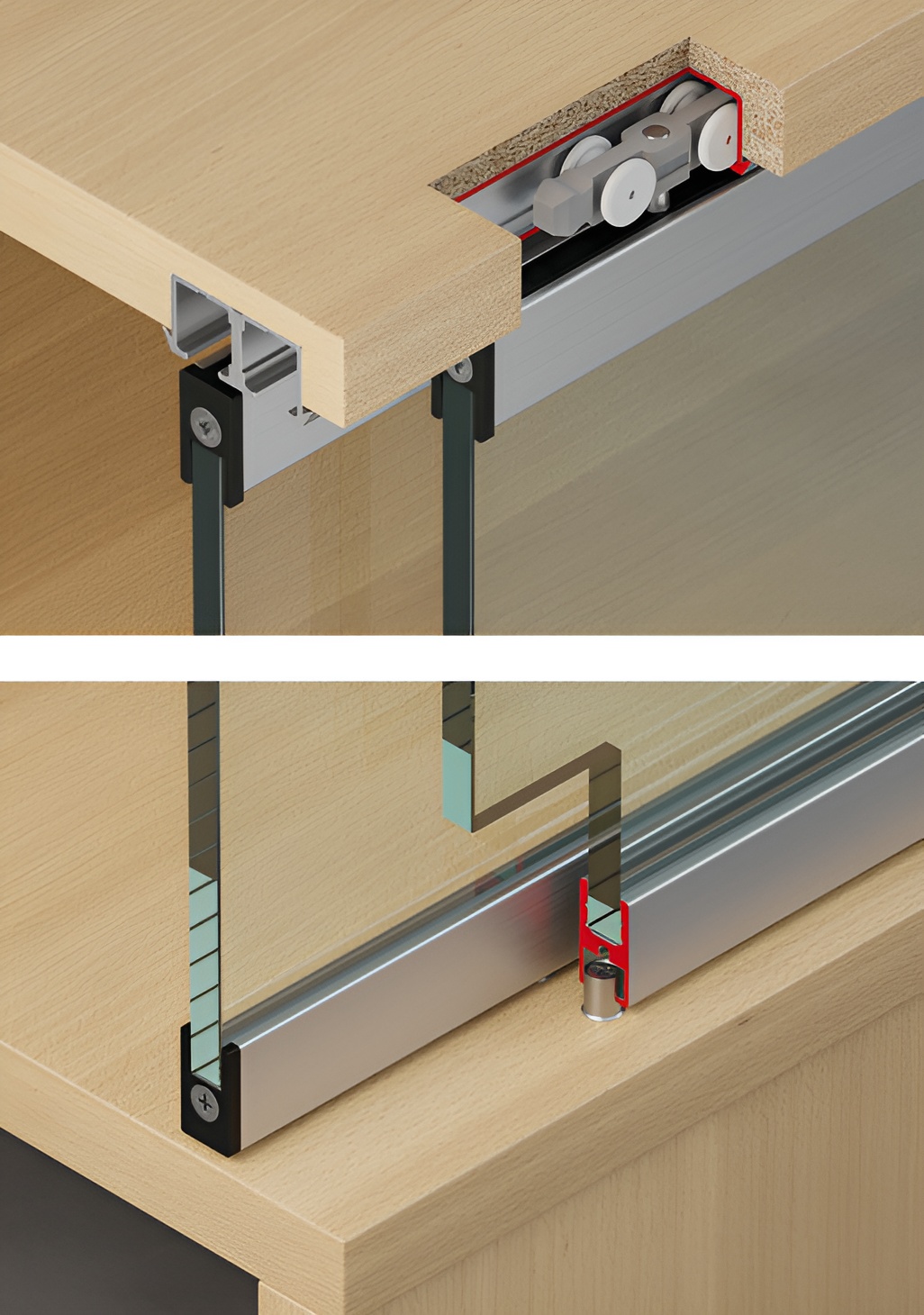

Hafele 402.33.039 Sliding Door Hardware, Slido F-Line21 12D/20D, Set offers an efficient solution for your sliding door needs, designed specifically for two doors. This set is equipped with a sophisticated soft and self-closing mechanism on both sides, ensuring smooth operation while minimizing wear and tear over time. It accommodates doors weighing up to 12 kg, making it ideal for a variety of residential and commercial applications. Installation is straightforward, with pitch lengths of running gears requiring a minimum of 245 mm for one soft-closing side, and 425 mm when utilizing the soft-closing mechanism on both sides. The adjustment facility allows for a ±2 mm adjustment on the running gear using a hexagonal nut, providing flexibility during installation. Included in the set are four running gears, four door stoppers, one door follower, and two sets of runners, along with cover caps and a mounting aid for ease of assembly. It is important to note that running and guide tracks must be ordered separately, and for cabinets with three doors, specific sets should be purchased accordingly. With its blend of functionality and design, the Hafele Sliding Door Hardware is a reliable choice for enhancing your space.
Sliding Door Hardware, Slido F-Line21 12D/20D, Set
Infront, for 2 doors, with soft and self closing mechanism on both sides, 12 kg

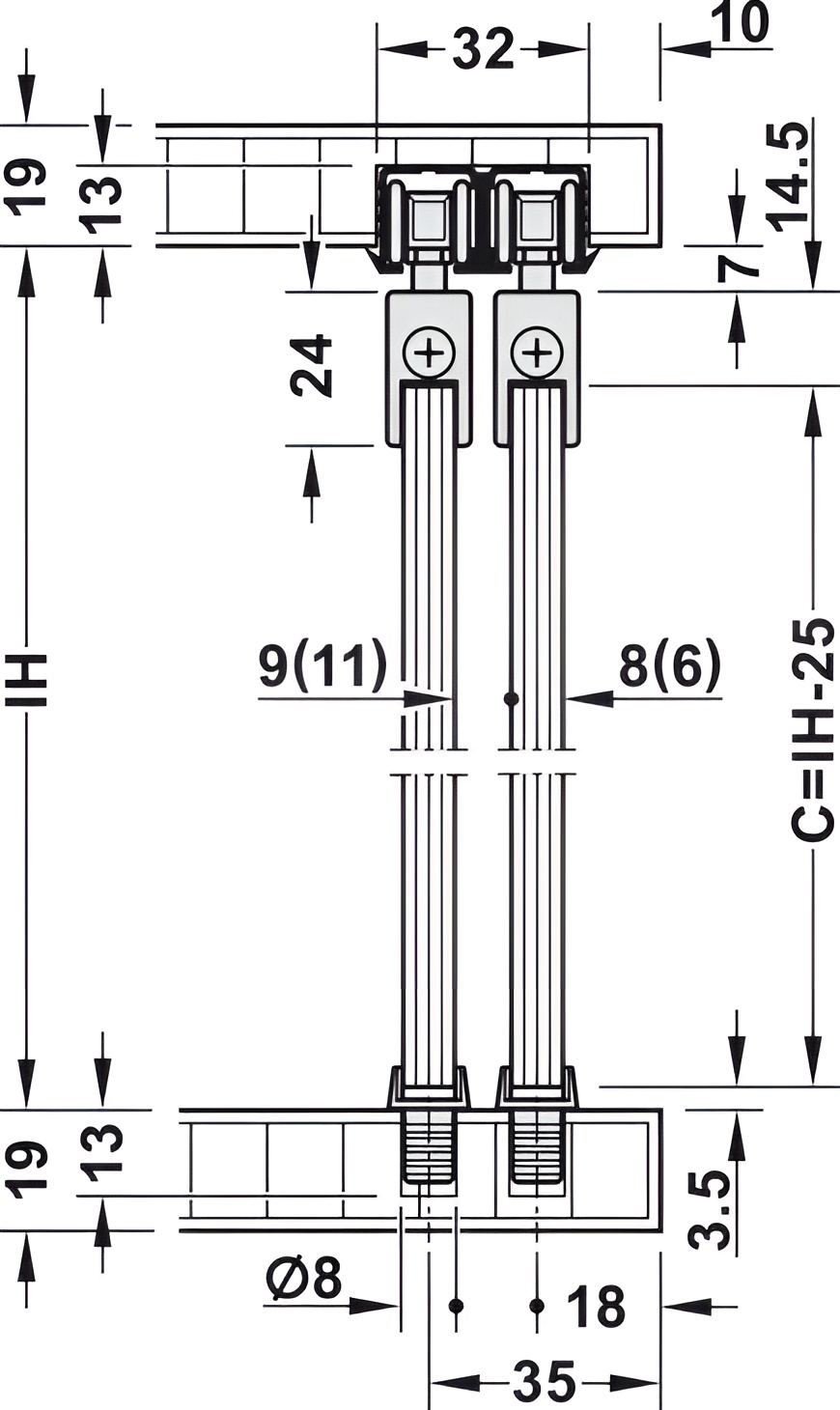

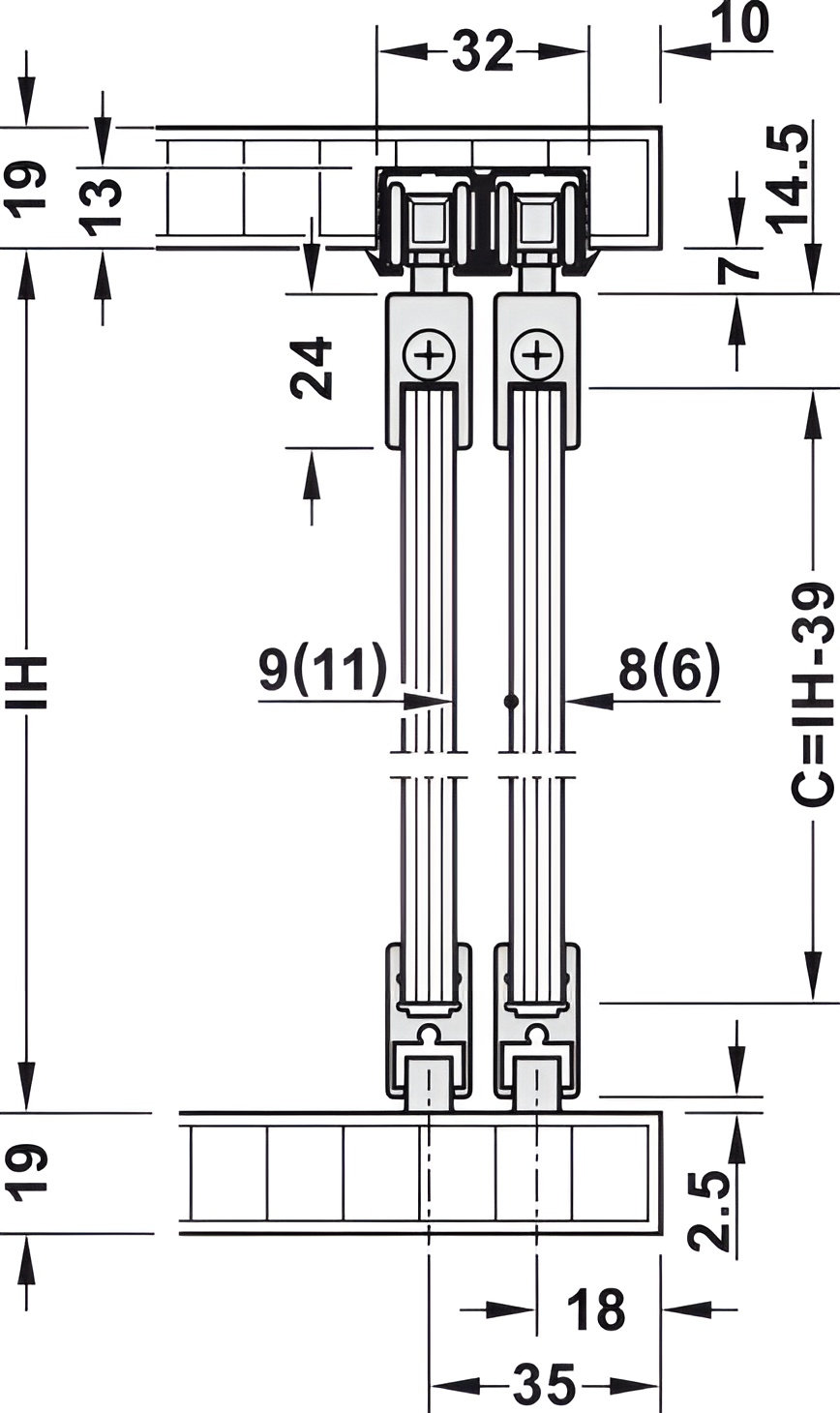

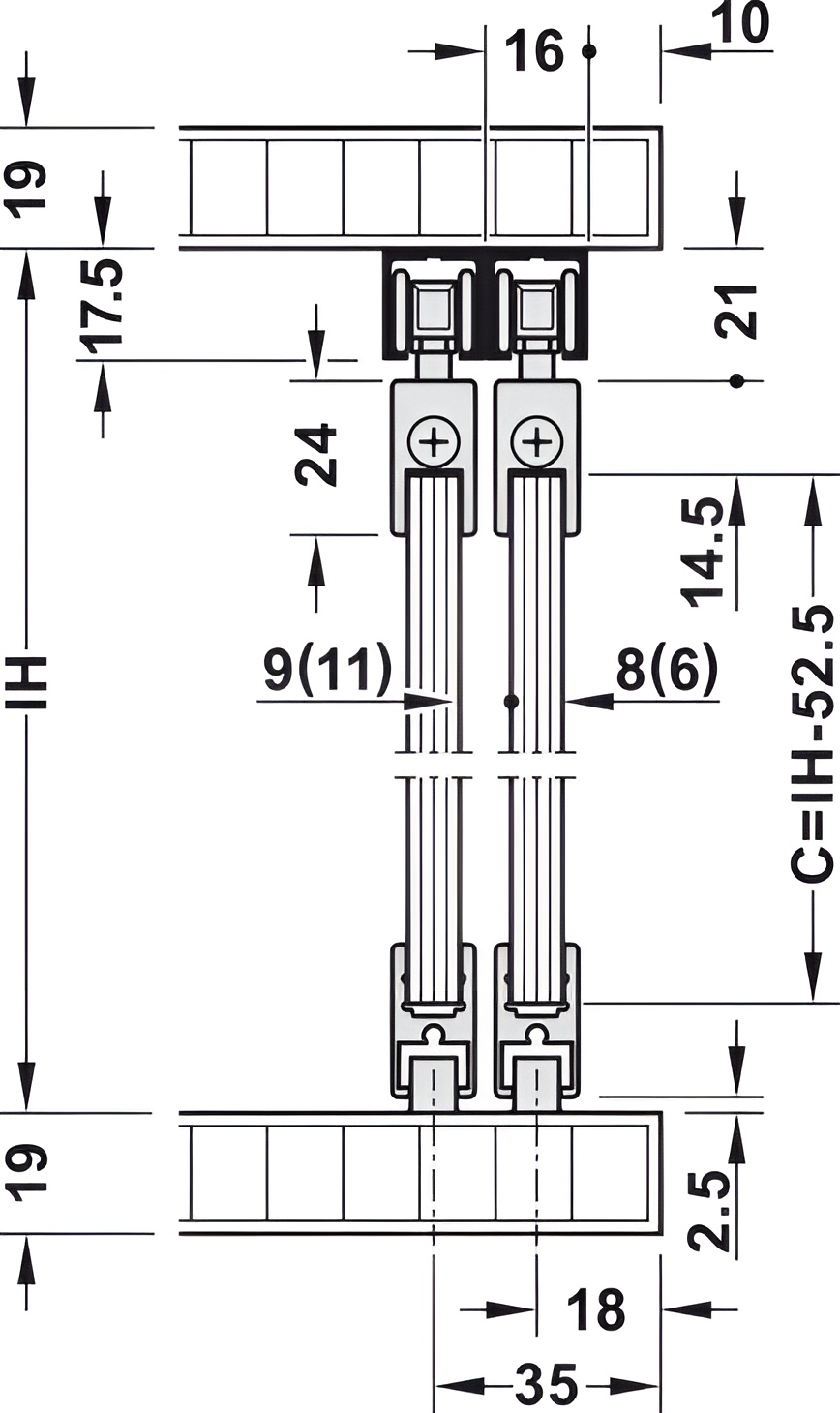

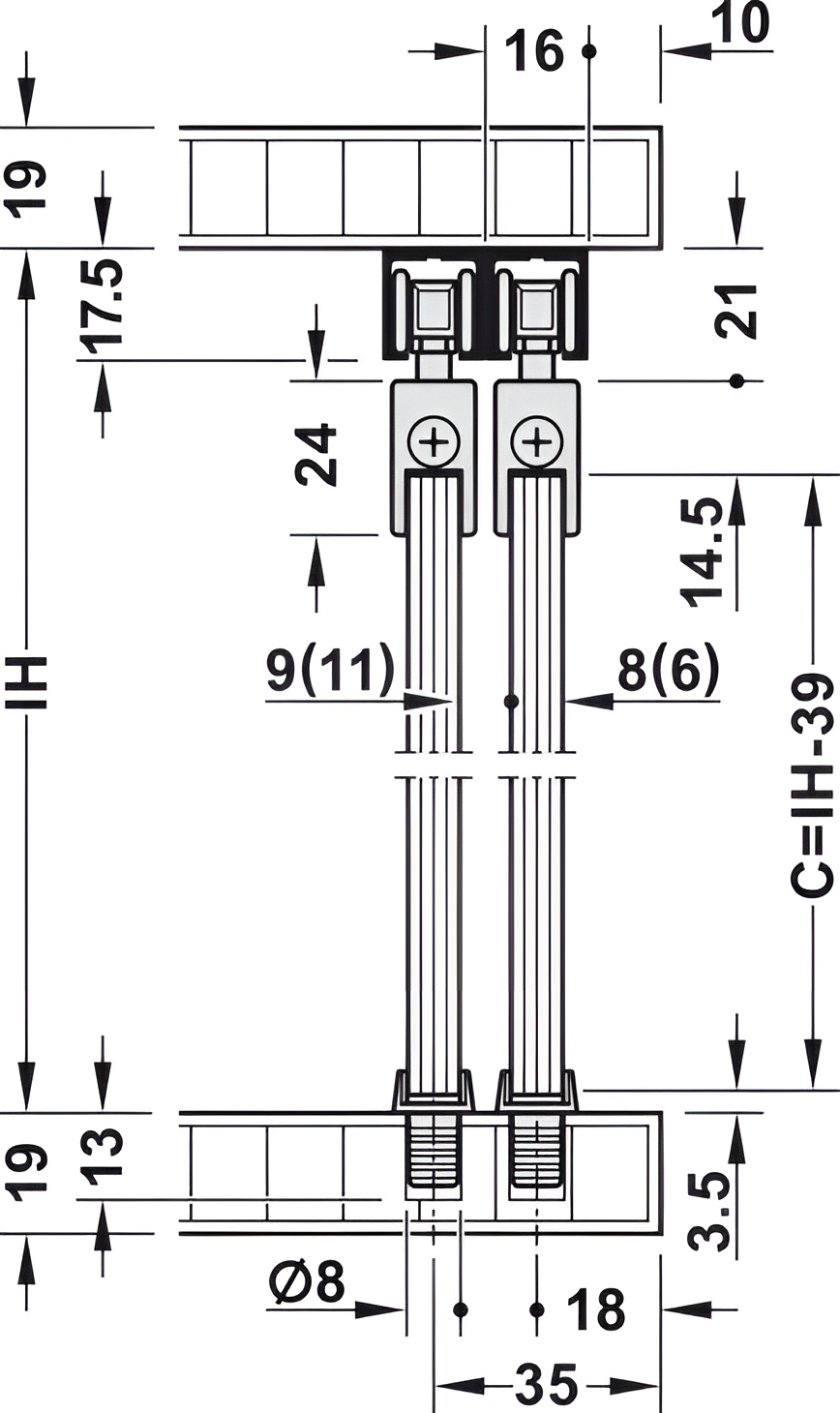

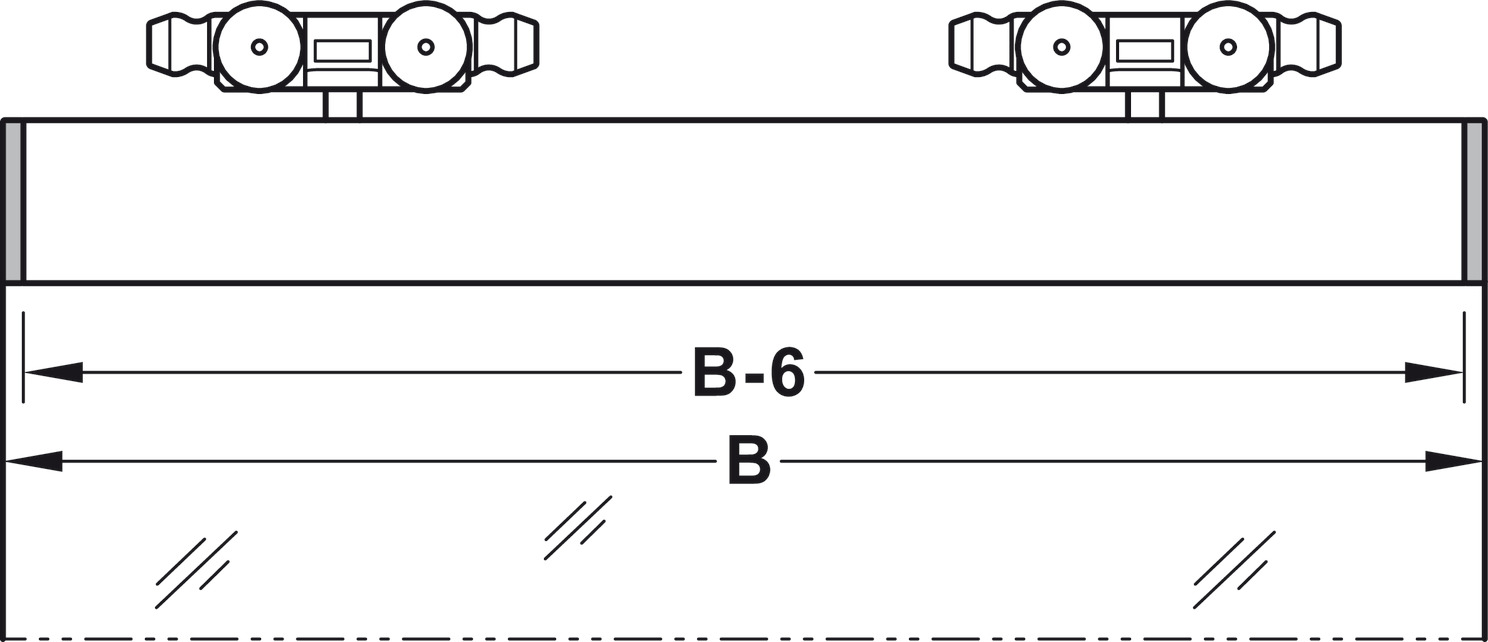

Pitch length of running gears must be min. 245 mm with soft closing mechanism on one side, min. 425 mm with soft closing mechanism on both sides.

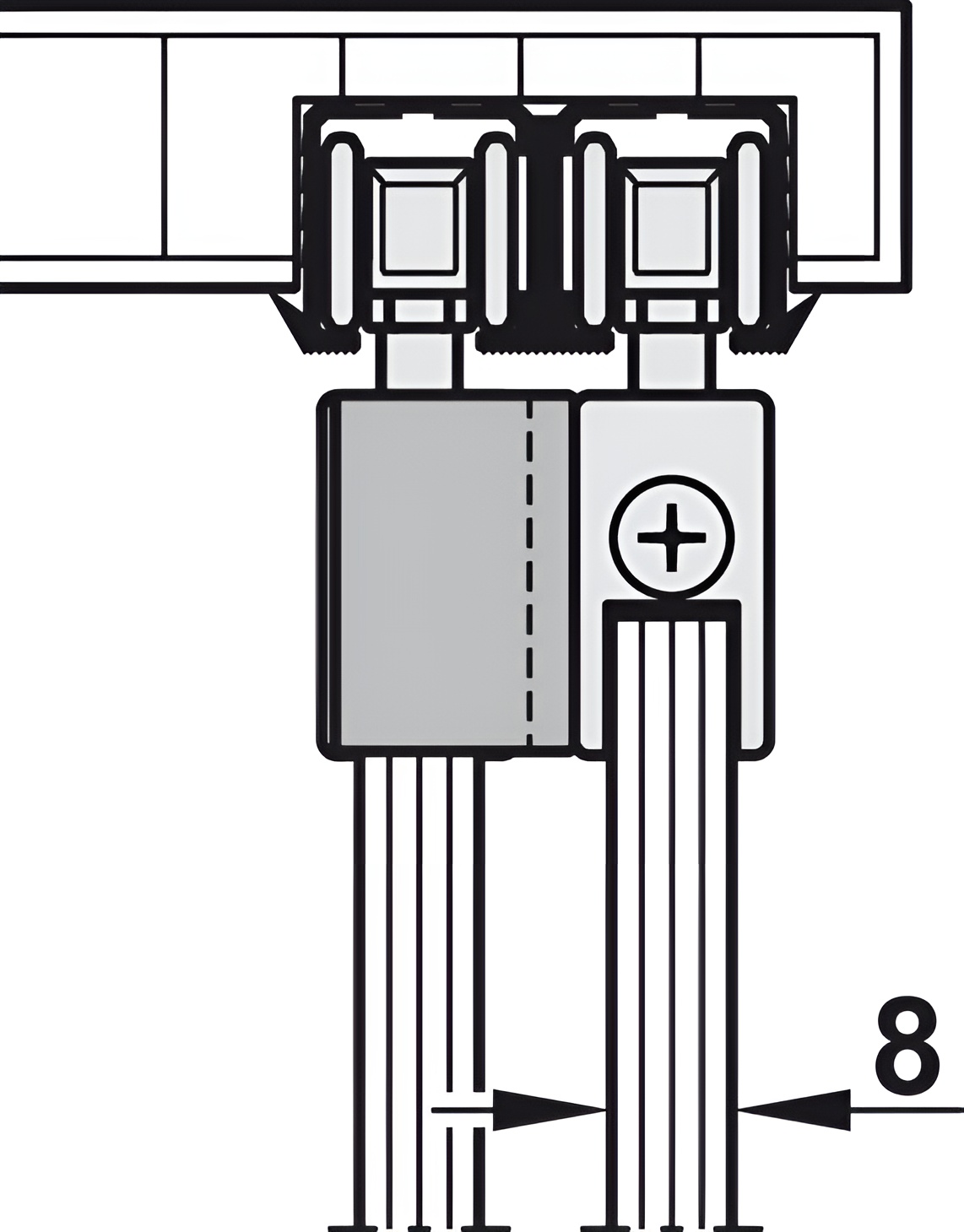

Adjustment facility: ±2 mm on running gear using hexagonal nut
Area of application: For 2 doors
Door stopper: With soft closing mechanism on both sides
Installation reference: Pitch length of running gears must be min. 245 mm with soft closing mechanism on one side, min. 425 mm with soft closing mechanism on both sides.
Order reference: Please order running and guide tracks separately. Please order the following sets for cabinets with 3 doors: 1 set for 1 door and 1 set for 2 doors.
Supplied with: 4 running gears with soft and self closing mechanism 4 door stoppers for soft and self closing mechanism 1 door follower 2 sets of runners, cover caps and mounting aid
Version: For 2 doors; With soft and self closing and opening mechanism, 12 kg
