Hafele 405.35.830 Door Straightening Fitting, Hawa offers an effective solution for maintaining the integrity of sliding and pivoting doors. This fitting adds rigidity to doors and panels, helping to prevent warping and twisting over time. With a mill finish and a length of 1900 mm (74 31/16"), it is designed to accommodate door heights ranging from 1215 mm to 2850 mm (47 13/16" to 112 3/16") and door thicknesses between 16 mm and 50 mm. The tensioning profile is cleverly recessed and can be secured with screws, although gluing is an optional installation method. This fitting is adjustable via pre-mounted hex screws using an 8 mm (5/16") open-ended wrench, making it user-friendly for installers. It is recommended to use two alignment fittings per door for optimal performance, particularly when dealing with lacquered panels-note that milling may be visible on the front in such cases. Constructed from aluminum for the tensioning profile and plastic for the tensioners and retaining plates, this product is designed for durability. Each kit includes two door alignment fittings, complete with all necessary components except for the fastening screws, ensuring a comprehensive solution for your door alignment needs.
Door Straightening Fitting, Hawa
Adds rigidity and helps prevent warping and twisting of doors and panels, mill finish, 1900 mm length (74 31/16")
Two alignment fittings per door are recommended. Not suitable for hardwood. When using this product in combination with lacquered panels, please note that the milling may show on the front.
Area of application: For sliding and pivoting doors
Color/finish: Mill finish
Dim. A: 1900 mm (74 13/16")
Distance to cup: 1,900 mm
For door height: 1215 – 2,850 mm
For door height (inches): 47 13/16"–112 3/16"
For door thickness: 16 – 50 mm
Installation: For recess mounting and screw fixing (for glue fixing optional)
Material: Tensioning profile: Aluminum Tensioners and retaining plates: Plastic

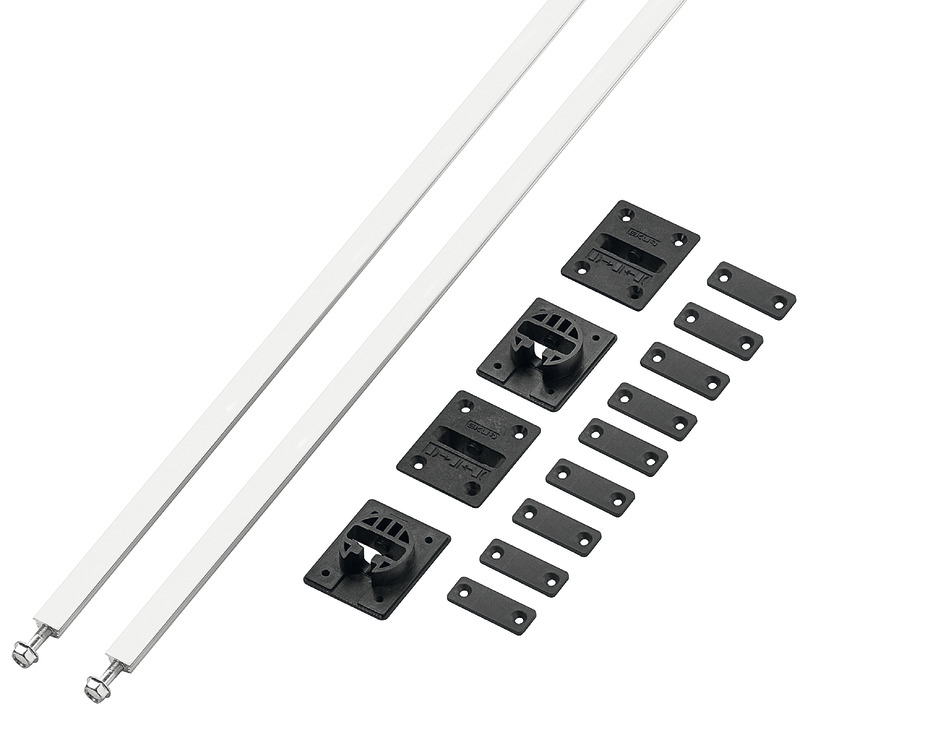

Supplied with: Each kit consists of 2 door alignment fittings including all components except the fastening screws for the tensioners and the retaining plates
