Hafele 405.35.831 Door Straightening Fitting, Hawa enhances the stability of sliding and pivoting doors while effectively preventing warping and twisting. This fitting boasts a clear anodized finish and measures 2100 mm (82 11/16"), making it suitable for a range of door heights from 1215 mm to 2850 mm (47 13/16" to 112 3/16"). Designed for door thicknesses between 16 mm and 50 mm, it is an ideal solution for maintaining the integrity of your doors. The recessed tensioning profile is securely screwed in place, with an option for glue fixing, allowing for a clean installation. Adjustments are made effortlessly using pre-mounted hex screws compatible with an 8 mm (5/16") open-ended wrench. For optimal performance, it is recommended to use two alignment fittings per door, ensuring maximum rigidity. It’s important to note that this fitting is not suitable for hardwood applications, and users should be aware that milling may be visible on lacquered panels. Each kit includes two alignment fittings along with all necessary components for installation, excluding the fastening screws for the tensioners and retaining plates. Elevate your door functionality with Hafele’s reliable and robust solution.
Door Straightening Fitting, Hawa
Adds rigidity and helps prevent warping and twisting of doors and panels, clear anodized, 2100 mm length (82 11/16")
Two alignment fittings per door are recommended. Not suitable for hardwood. When using this product in combination with lacquered panels, please note that the milling may show on the front.
Area of application: For sliding and pivoting doors
Color/finish: Clear anodized

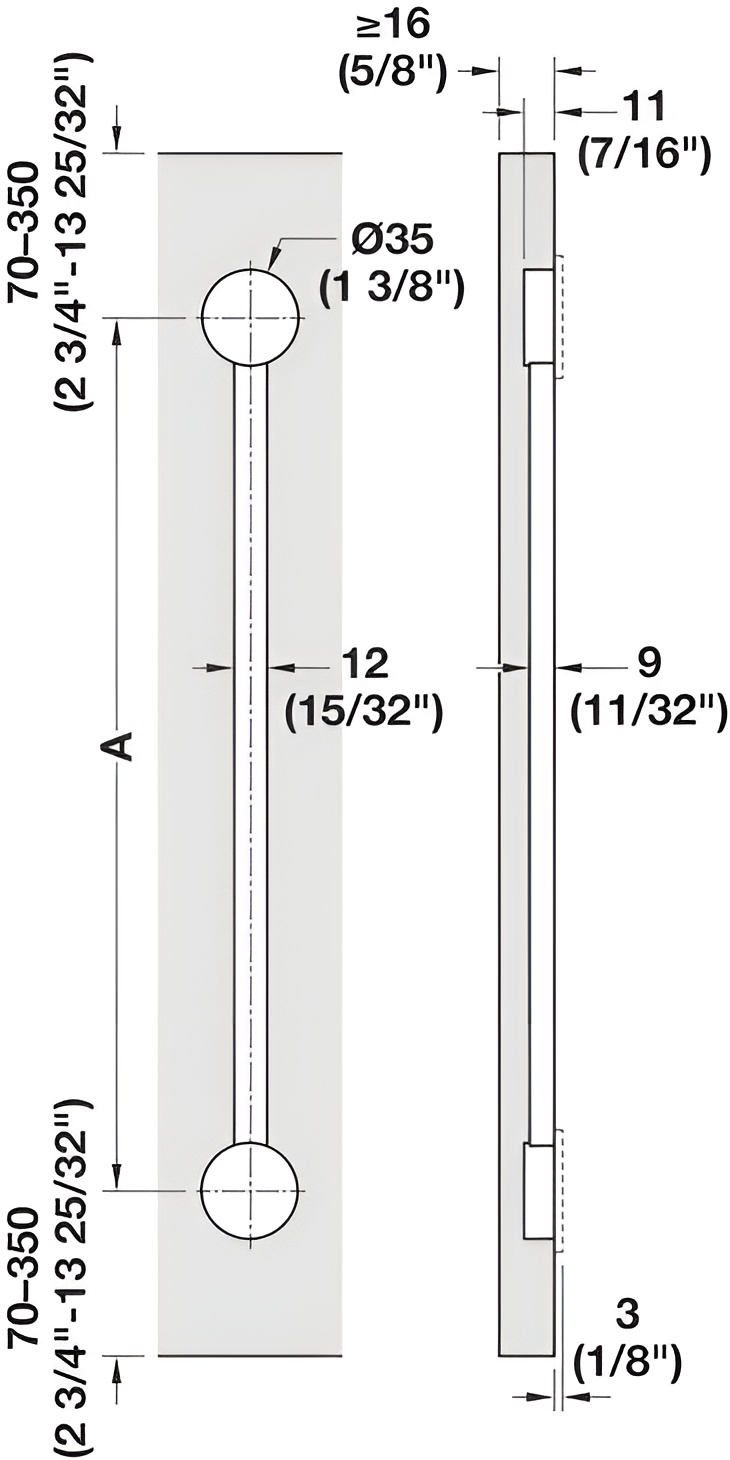

Dim. A: 2100 mm length (82 11/16")
Distance to cup: 2,100 mm
For door height: 1215 – 2,850 mm
For door height (inches): 47 13/16"–112 3/16"
For door thickness: 16 – 50 mm

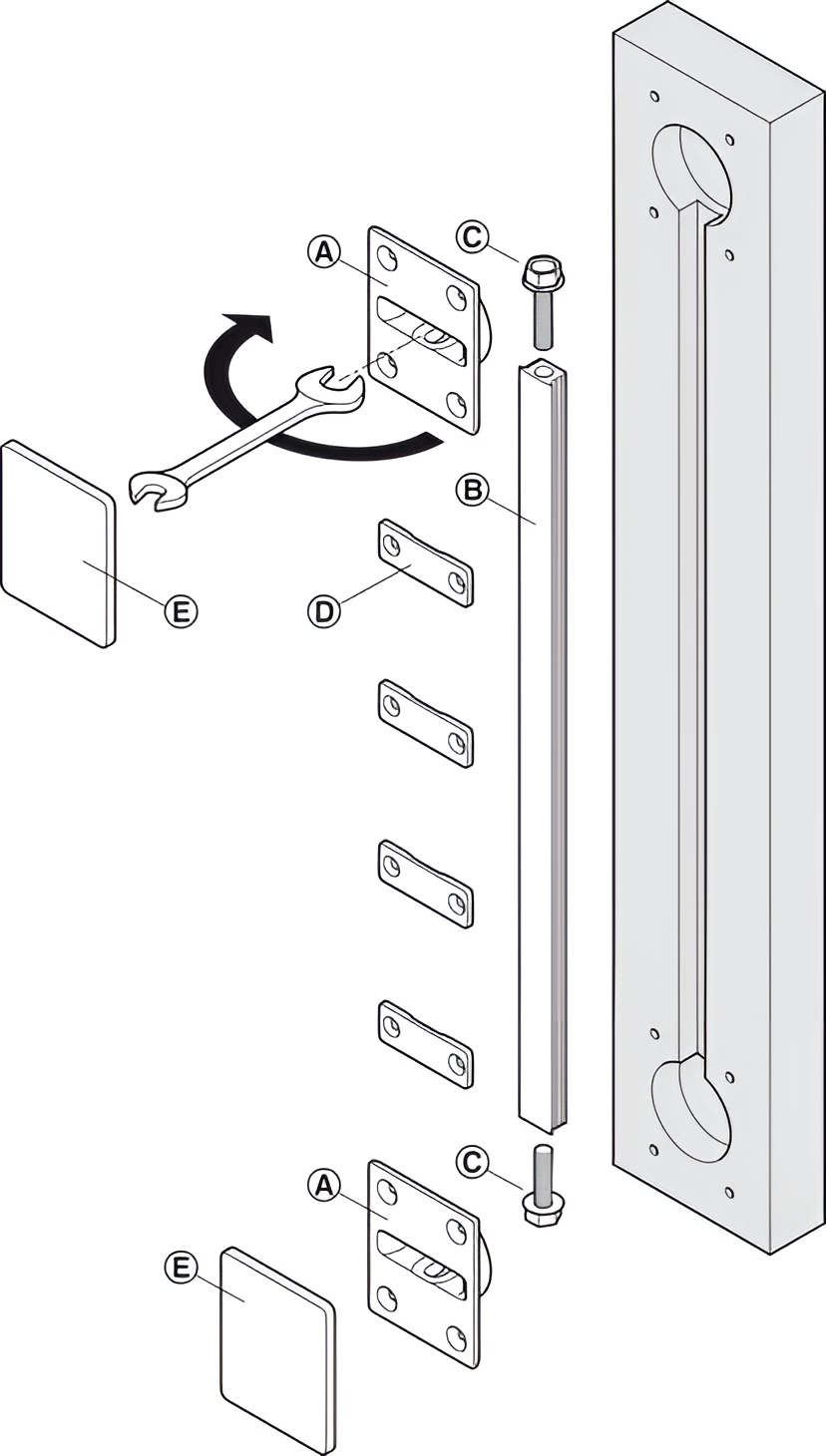

Installation: For recess mounting and screw fixing (for glue fixing optional)
Material: Tensioning profile: Aluminum Tensioners: Zinc, die-cast Retaining plates: Plastic

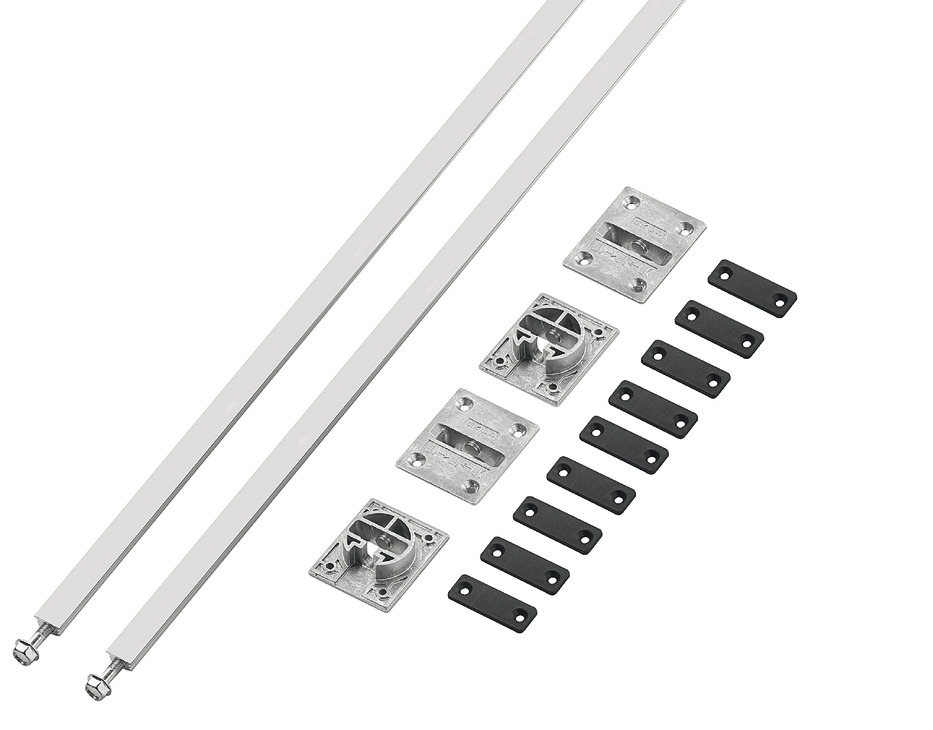

Supplied with: Each kit consists of 2 door alignment fittings including all components except the fastening screws for the tensioners and the retaining plates
