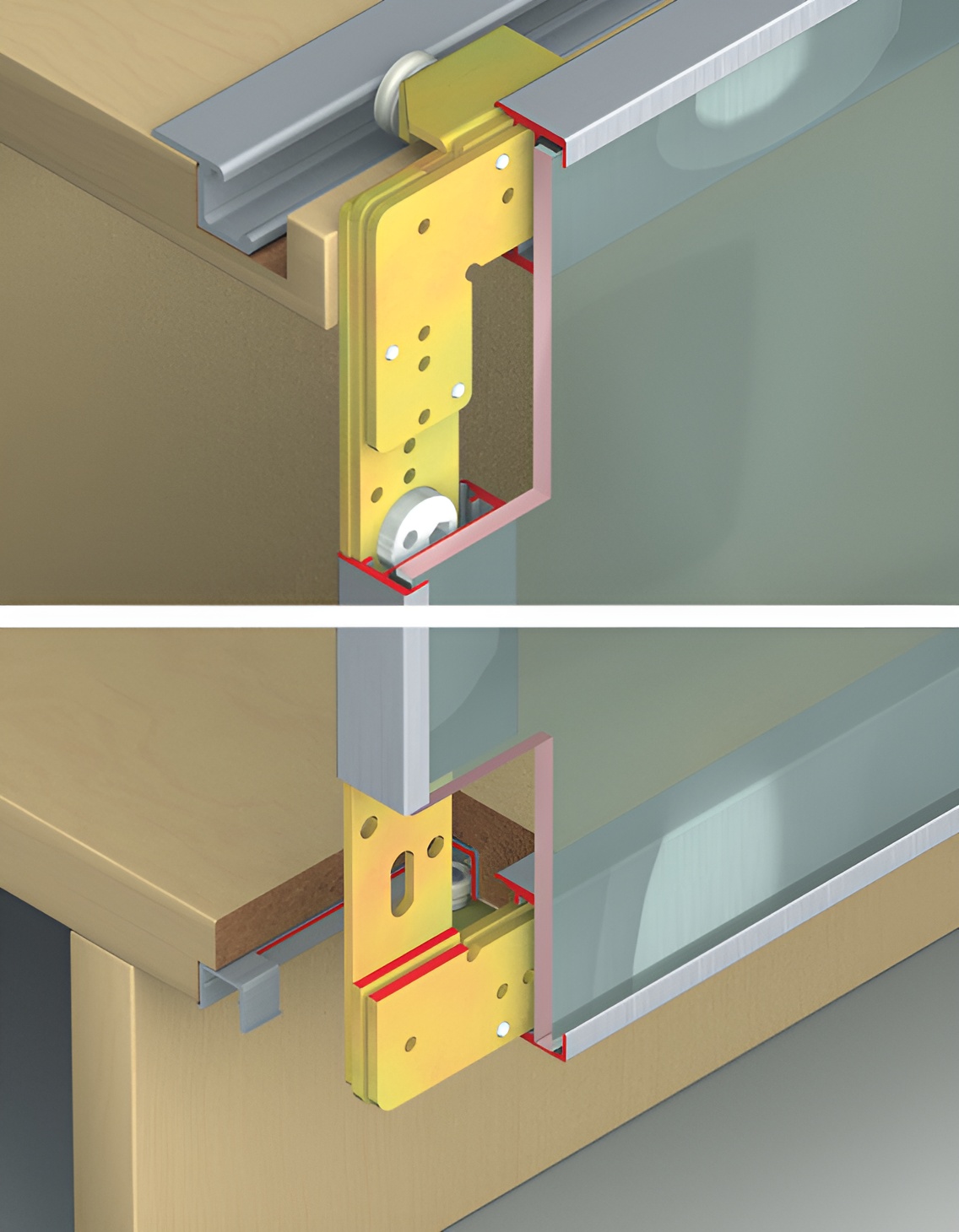

Hafele 405.55.111 Hawa Regal A 25 GR VF Sliding Door Hardware SetHafele 405.55.111 Sliding Door Hardware, Hawa Regal A 25 GR VF, set is designed for effortless integration in modern spaces with aluminum frame sliding doors. Capable of supporting door weights up to 55 lbs and heights up to 86 5/8", this system is perfect for sleek, contemporary interiors. The simple construction of the aluminum frame door utilizes miter profiles, eliminating the need for additional shaping. Assembly is straightforward, using angle connectors for a secure fit, with rails that remain concealed for a clean aesthetic. The system is equipped with an eccentric screw for height adjustments, allowing for fine-tuning of ±1.5 mm on the running gear, making installation adaptable and user-friendly. This hardware set is suitable for a single door and offers a maximum door width of 47 1/4" and a minimum glass thickness of 5/32". With its robust ball-bearing guided running gear, the door glides smoothly along the top running track, ensuring durability and reliability. Supplied components include one running gear, one guide, and frame mounting set, as well as left and right stoppers and guide buffers. Please note that running tracks, guide rails, aluminum profiles, and glass gaskets must be ordered separately, ensuring a tailored fit for your specific project needs.
Sliding Door Hardware, Hawa Regal A 25 GR VF, set
For one aluminum frame sliding door, for door weights up to 55 lbs for door heights up to 86 5/8", For 1 door

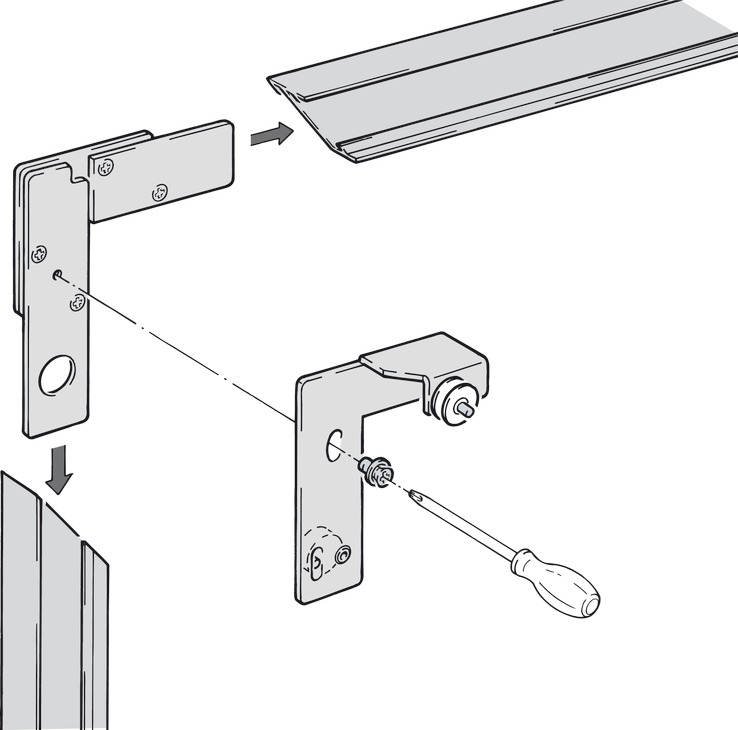

Simple construction of aluminum frame door - miter profile (no further shaping required), put together with angle connectors, screw-mount and install fittings Rails not visible Aluminum frame profile
Attributes
Adjustment facility: Height adjustment facility: -2 – 2 mm, Eccentric height adjustment of ±1.5 mm (± 1/16") on running gear
Area of application: For door weights up to 25 kg, for sliding doors with aluminum frame 40/22
Cabinet version: shelves
Door adjustment via: eccentric screw
Door height min.: 86 5/8"
Door stopper: Top stopper, with retainer for sliding into single top running track
Door width max.: 47 1/4"
For door height: ≤2,200 mm
For door weight: ≤25 kg
For door width: ≤1,200 mm
For min. glass thickness (inches): 5/32"
Height adjustment: -2 – 2 mm
Height adjustment facility: ±2 mm
Installation: Running gear and guide for screw fixing
Load bearing capacity: 55 lbs.
Material/finish: Rollers: Plastic
Max. door weight: 55 lb
Number of doors: 1.00
Number of rollers: 1.00
Order reference: Please order running tracks, guide rail, aluminum profile and glass gasket separately.
Running gear guided by: Ball bearing
Running position: Top
Set: Set without tracks

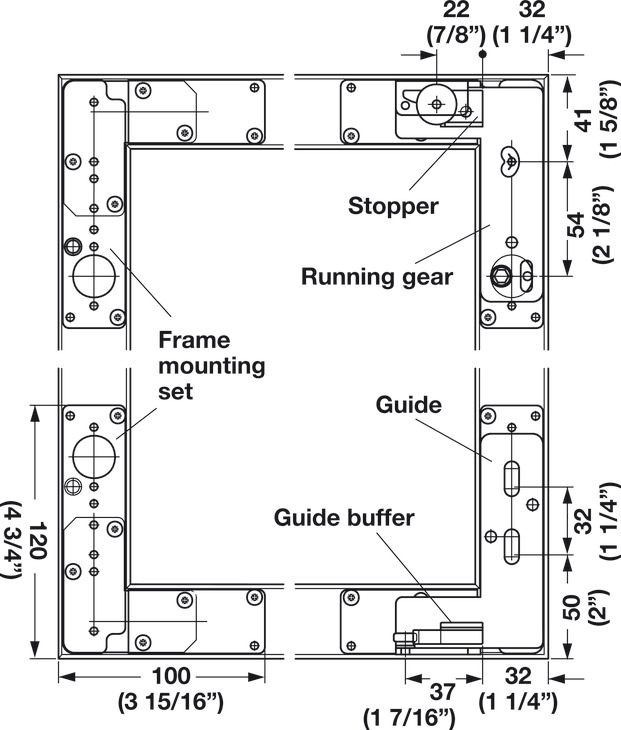

Supplied with: 1 Running gear 1 guide 1 frame mounting set 2 stoppers (left & right) 2 guide buffers
