Hafele 405.82.215 Hawa Clipo 15 H Sliding Door Hardware SetHafele 405.82.215 Sliding Door Hardware, Hawa Clipo 15 H, set is designed for seamless operation of straight or curved wooden doors weighing up to 15 kg. Ideal for doors with heights up to 1,400 mm, this versatile system accommodates two doors, making it perfect for a range of applications. Featuring a clever clip-mounting mechanism, the running gears allow for quick and easy door installation without the need for guide rails on the floor. The housing is screw-mountable, eliminating the requirement for a wood cover panel. Height adjustment is a breeze with a facility that allows for adjustments of ±1.5 mm using a simple adjusting wheel. This system is tailored for wooden doors with a thickness between 16 mm and 19 mm and a maximum width of 1,000 mm. It operates with a top-running position and features a top stopper with a retainer for smooth sliding. Constructed from durable plastic components, including rollers with metal axles, the Hafele Hawa Clipo ensures longevity and reliability. Ideal for both building professionals and discerning homeowners, this sliding door hardware set combines functionality with ease of use, enhancing the overall aesthetic and utility of any space.
Sliding Door Hardware, Hawa Clipo 15 H, set
For straight or curved wooden doors, for door weights up to 15 kg, for door heights up to 1,400 mm, Infront, for 2 door

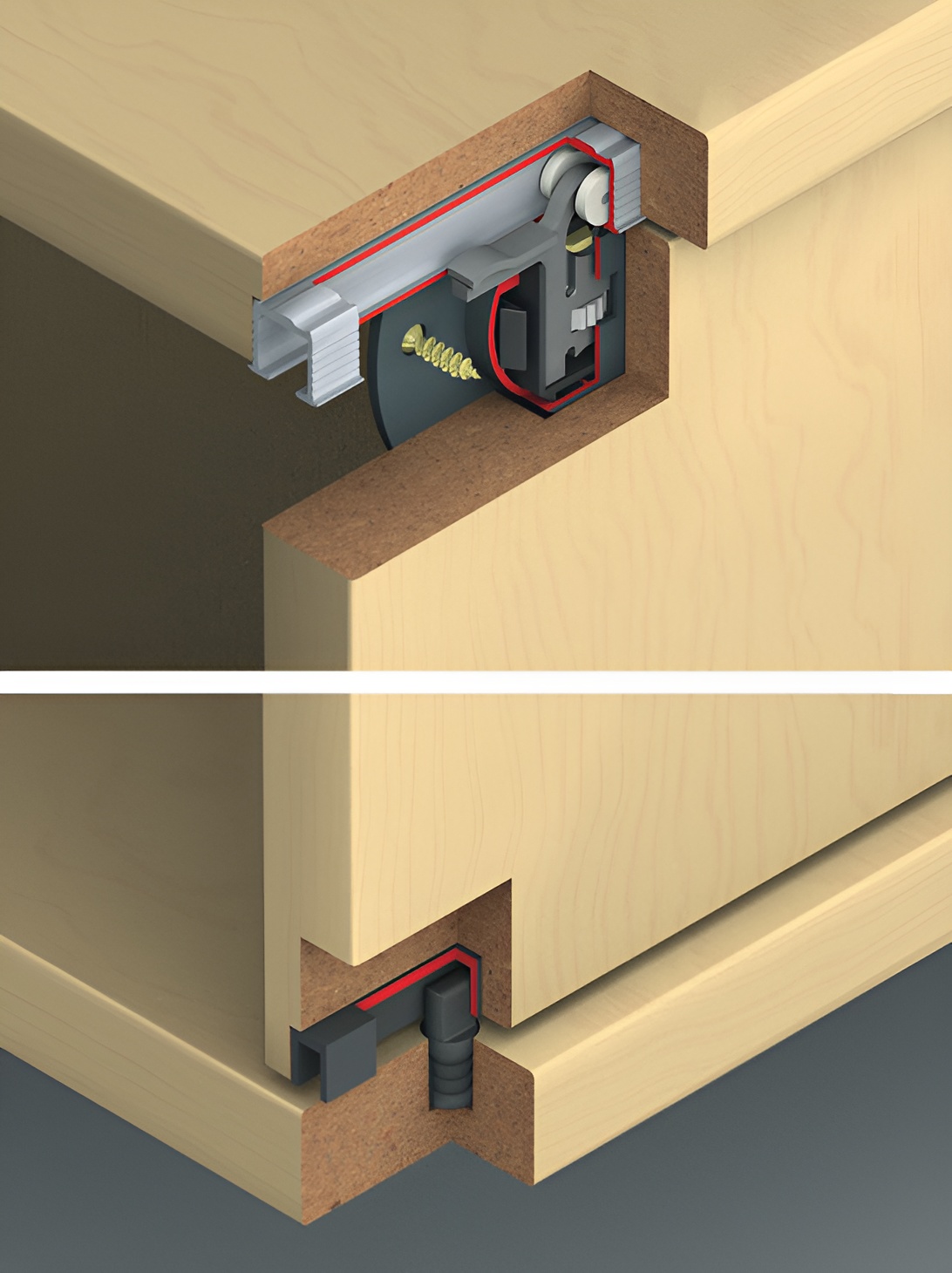

Running gears with clip-mounting, plastic rollers with metal axles Quick door mounting No guide rails in the floor Housing suitable for screw-mounting A wood cover panel is not needed
Attributes
Adjustment facility: Height adjustment facility: -1.5 – 1.5 mm, Height: ±1.5 mm on running gear using adjusting wheel
Area of application: For door weights up to 15 kg
Cabinet version: with straight and curved door leaves
Door adjustment via: adjusting wheel
Door height min.: 55 1/8"
Door stopper: Top stopper, with retainer for sliding into single top running track
Door width max.: 39 3/8"
For door height: ≤1,400 mm
For door material: wood

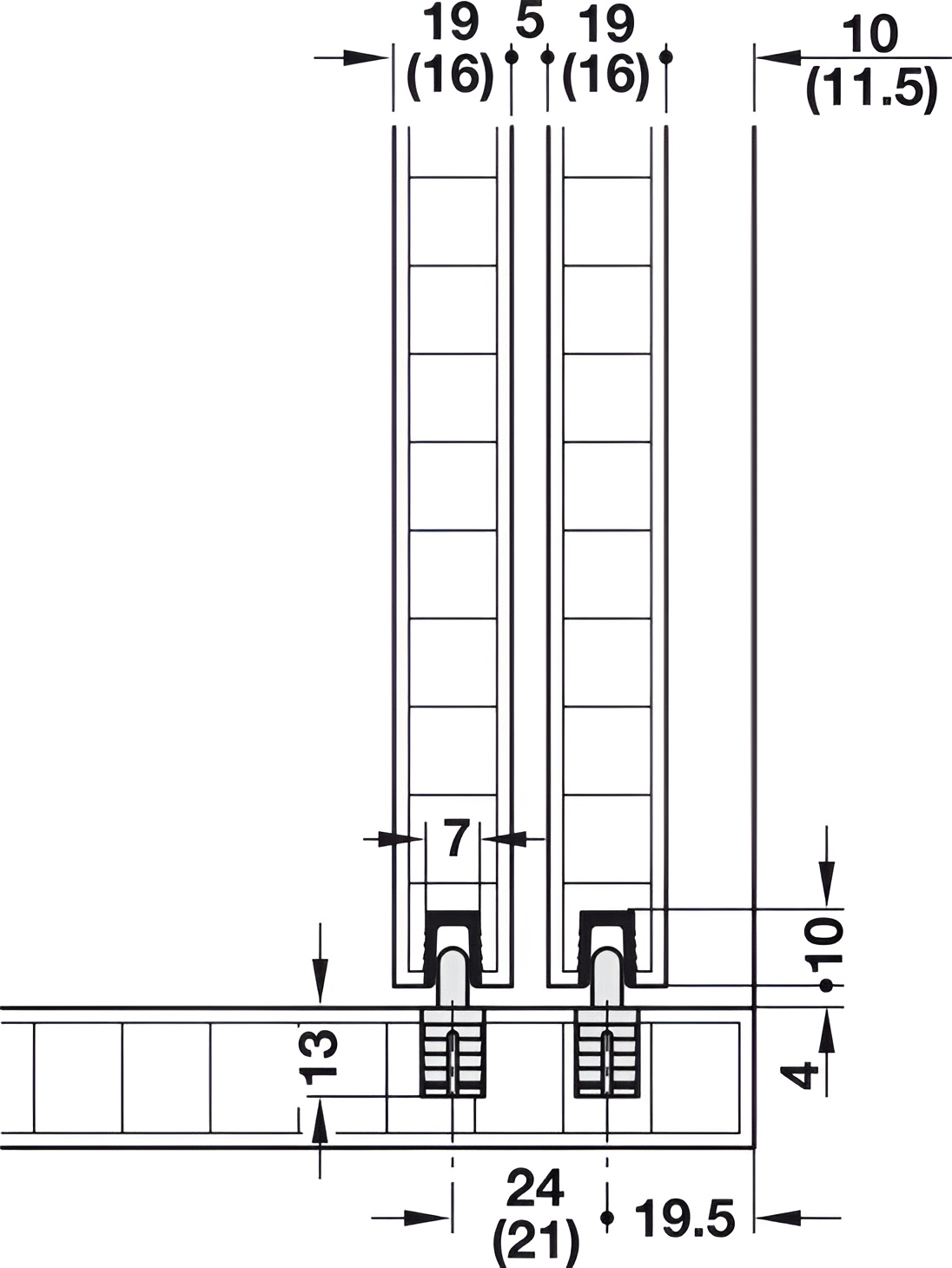

For door thickness: 16 – 19 mm
For door thickness min.: 5/8" and 3/4"
For door weight: ≤15 kg
For door width: ≤1,000 mm
Height adjustment: ±1/16"
Height adjustment facility: ±1.5 mm

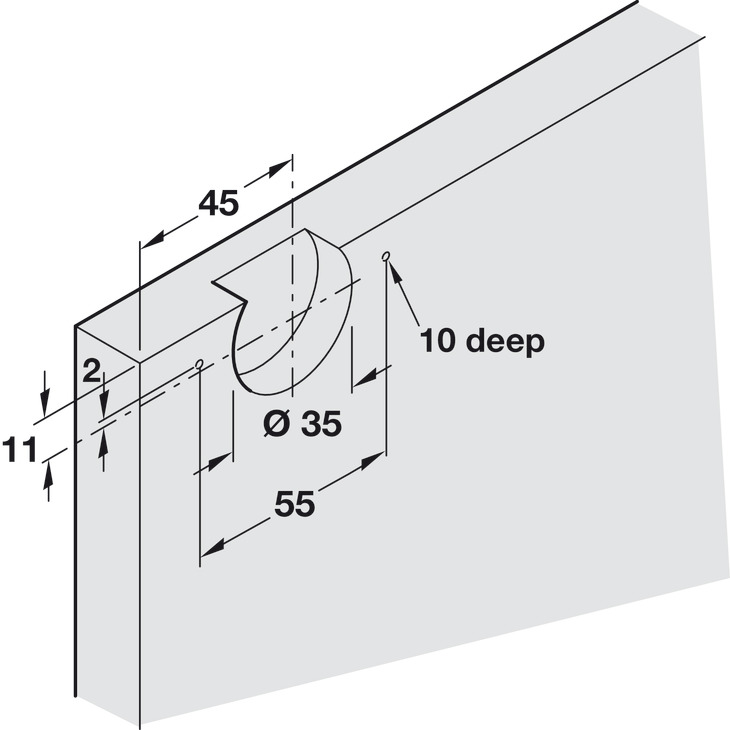

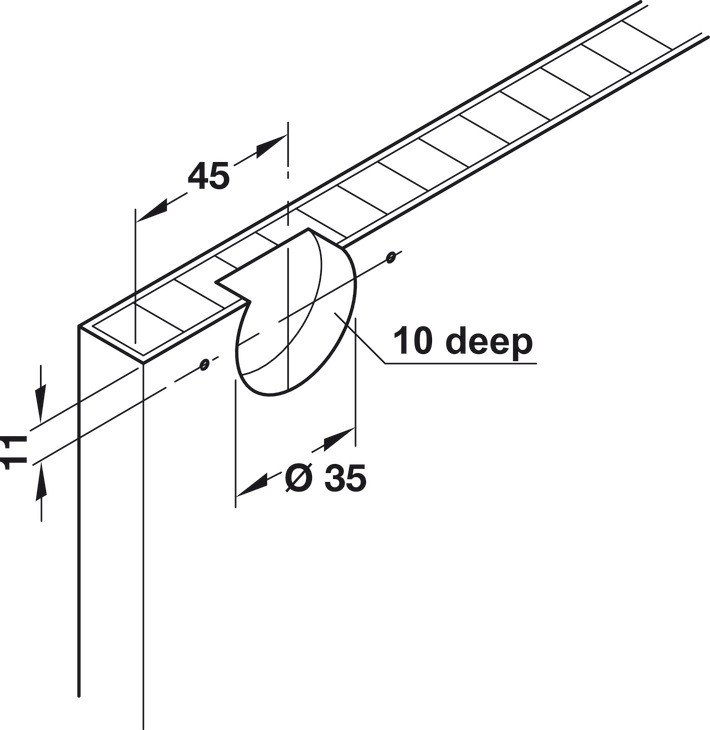

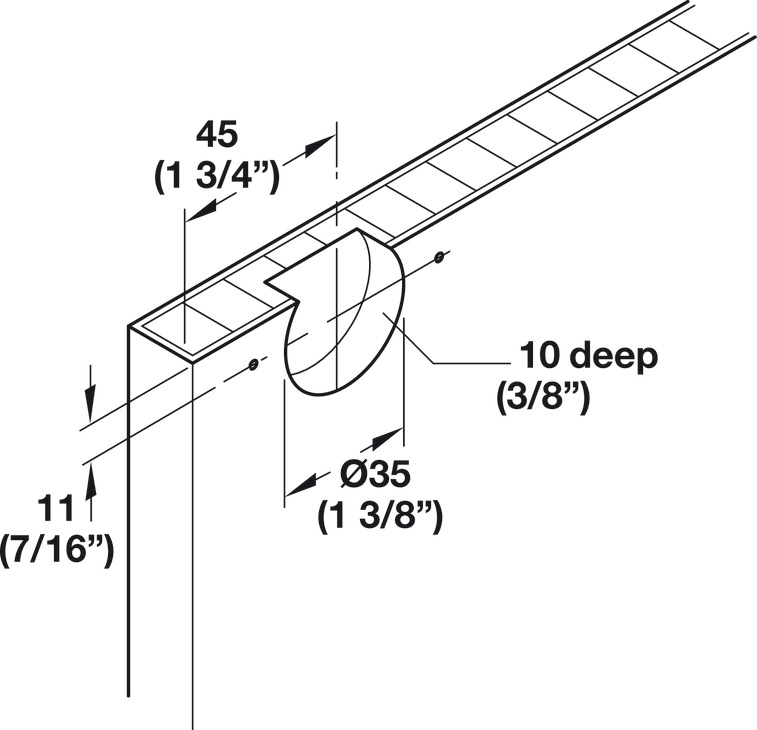

Installation: Guide for press fitting into a drill hole, Screw-on housing, Running gear without tools (quick fixing system)
Material/finish: Housing: PlasticRunning gear: PlasticGuide: PlasticRollers: PlasticAxis: Steel
Number of doors: 2.00
Number of doors per system max.: 2
Number of rollers: 1.00
Running gear guided by: Friction bearing
Running position: Top
Set: Set without tracks
Type of opening: linear
