Hafele 407.40.091 Hafele Slido F-Flush52 Sliding Door HardwareHafele 407.40.091 Sliding Door Hardware, Hafele Slido F-Flush52 20A is designed for seamless integration in modern cabinetry, accommodating two symmetrical wooden doors for a sleek, flush appearance. This system supports door weights of up to 20 kg and heights reaching 1,600 mm, making it ideal for base units and sideboards. The silver-colored anodized finish not only adds a contemporary touch but also ensures durability. Installation is straightforward, utilizing an internal running and guide track that fits into the body, with a mandatory center panel for stability. The adjustment facility allows for a ±2 mm tweak without the need for tools, ensuring precise alignment. This system is compatible with door thicknesses ranging from 18 to 22 mm and can handle a maximum door width of 750 mm (29 1/2"). Included in the package are two running tracks, four running gears, bottom guide parts, and top spacer plates for various door thicknesses. The design also allows for recessed grip profiles or inset handles, enhancing both functionality and aesthetics. Hafele's attention to detail ensures that each component is crafted for ease of use and long-lasting performance, making this sliding door hardware an excellent choice for stylish and efficient storage solutions.
Sliding Door Hardware, Hafele Slido F-Flush52 20A

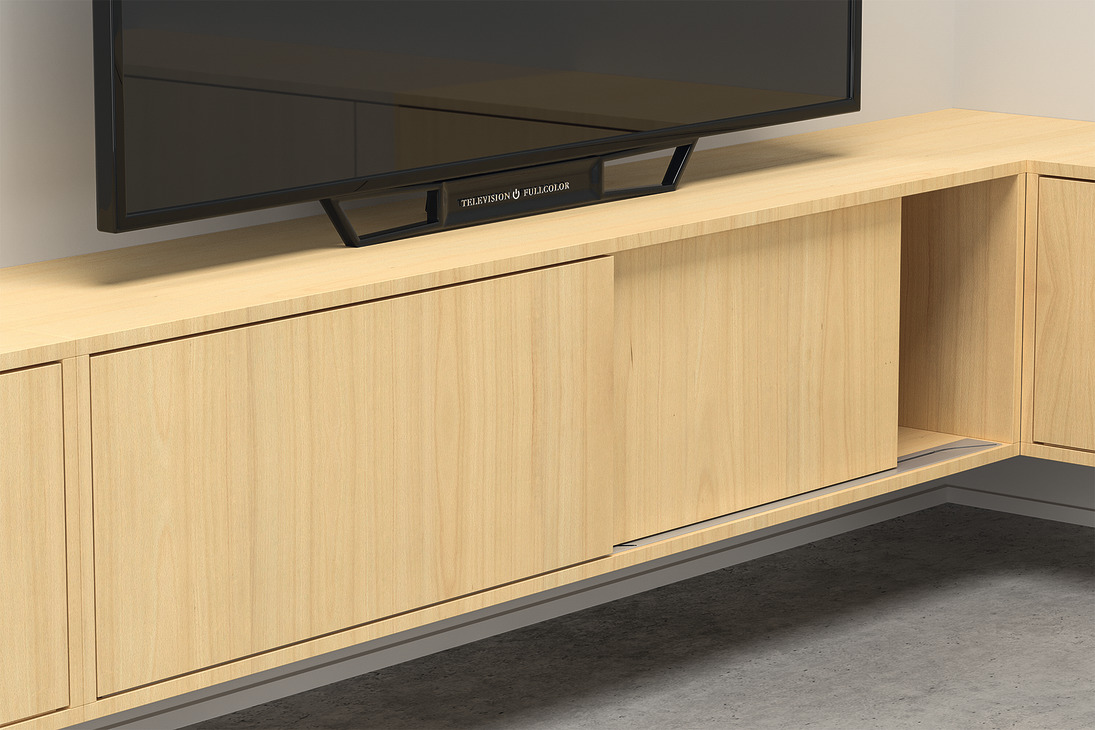

for base unit/sideboard with 2 symmetrical wooden doors, flush, inset door, door weight up to 20 kg, door height up to 1,600 mm, Silver colored anodized, For internal cabinet width 1508 mm
Exclusive: For flush, inside running doors

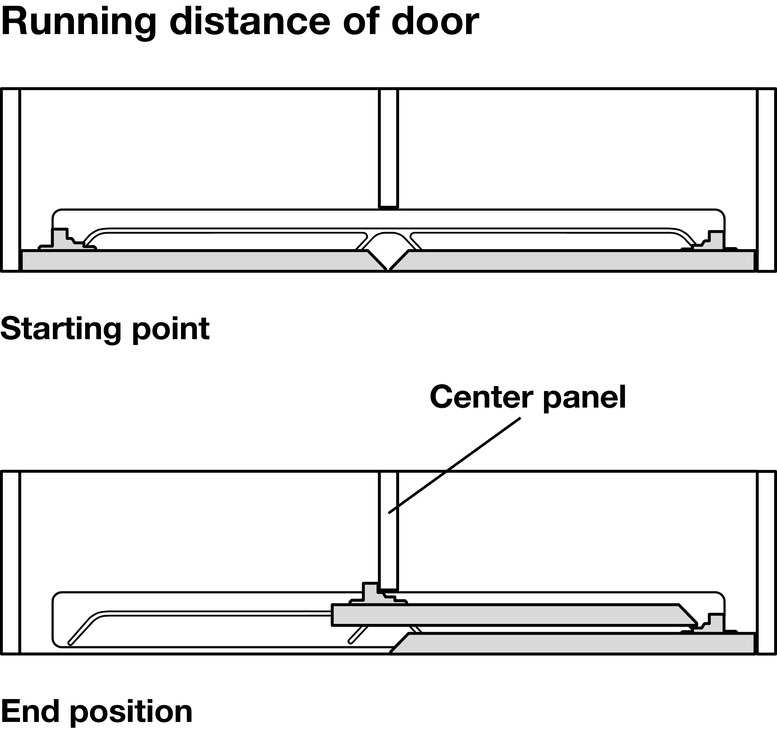

A center panel is mandatory.
Attributes
Adjustment facility: ±2 mm (±1/16")
Area of application: For 2 symmetrical doors
Door adjustment via: Knurled nut (without tools)

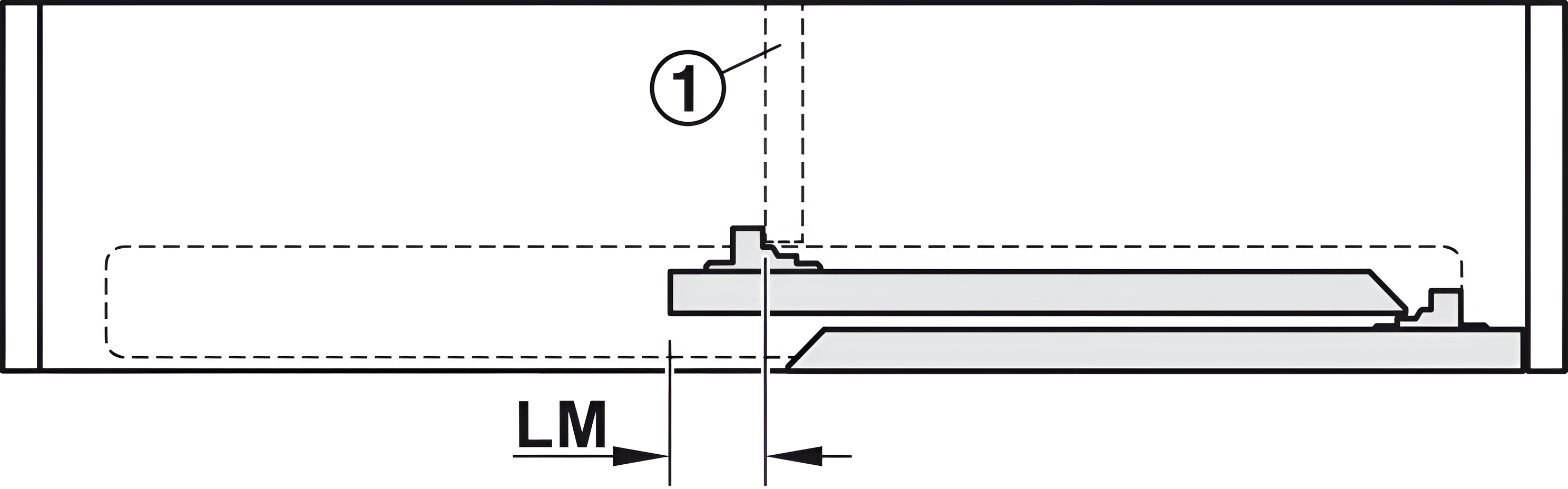

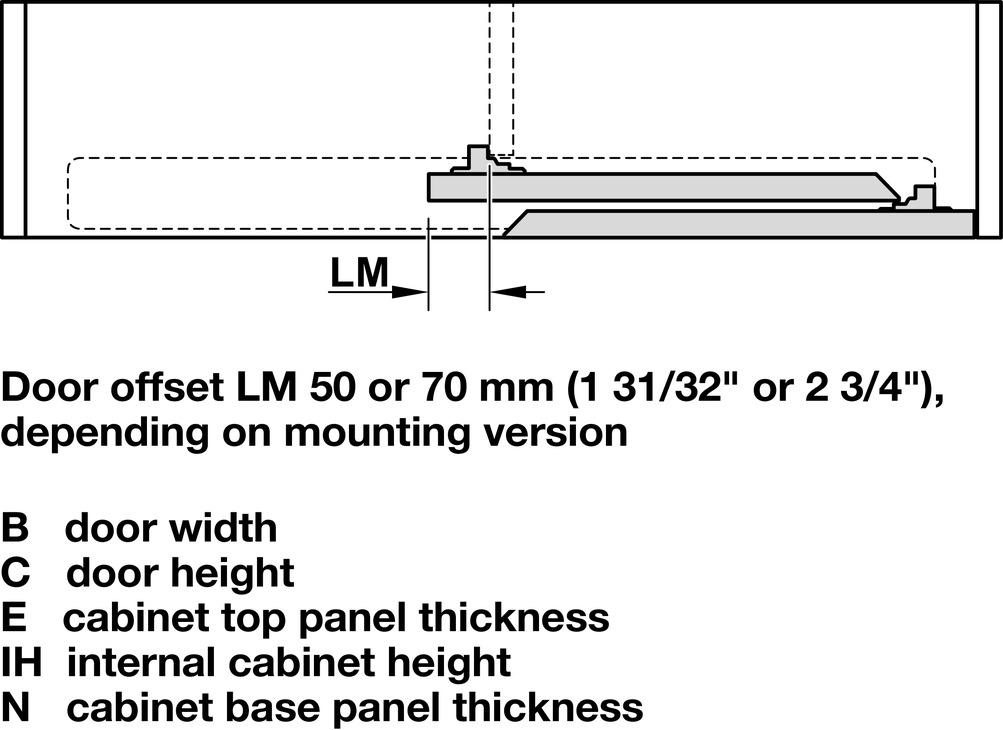

Door offset: 70 mm

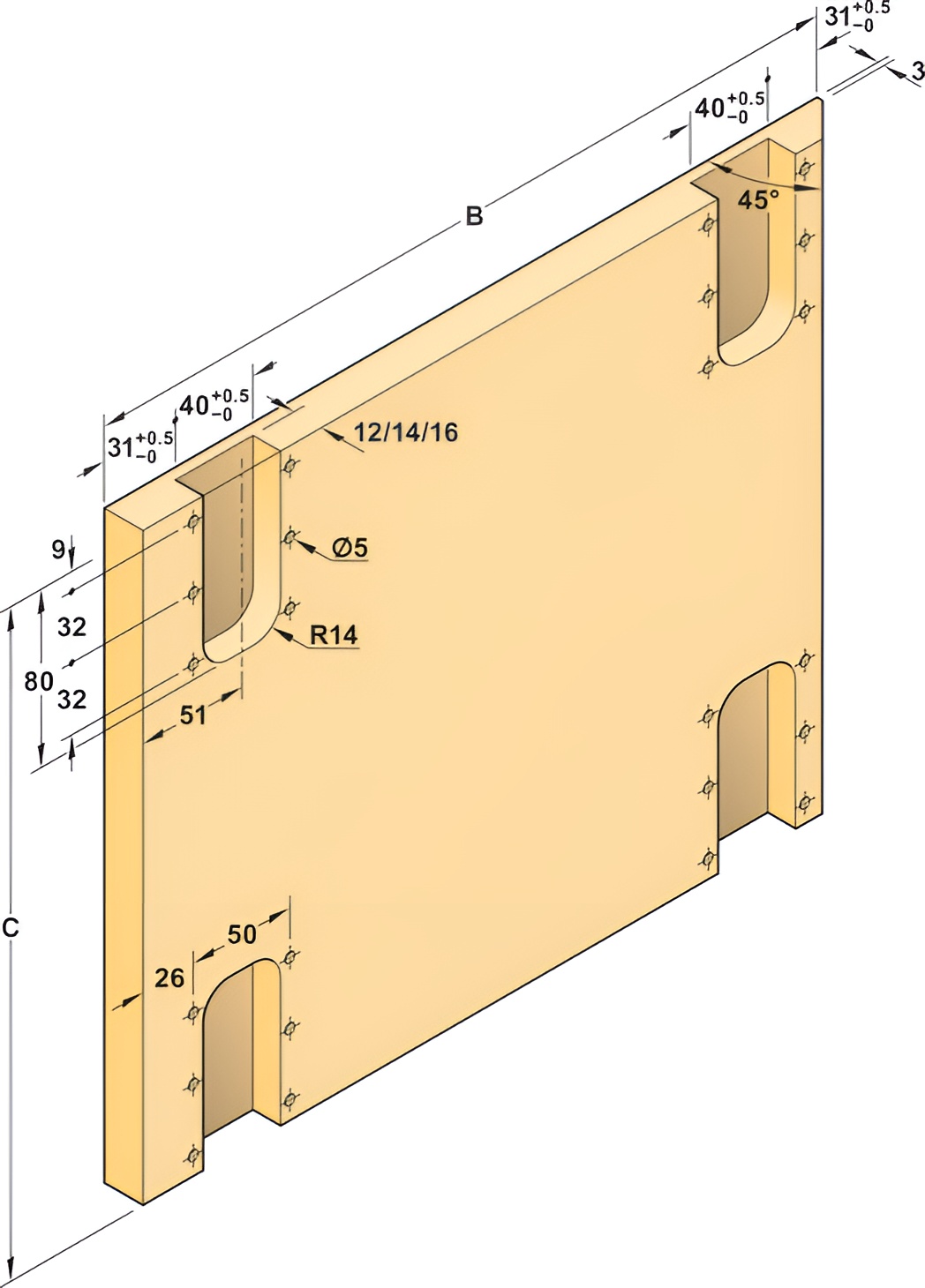

Door processing: With recess
Door thickness max. including handle: 45.00 mm
Door width max.: 7/8"
For door height: ≤1,600 mm
For door thickness: 18 – 22 mm
For door weight: ≤20 kg
For door width: 750 mm
For door width (inches): 29 1/2"
For internal cabinet width: 1,508 mm

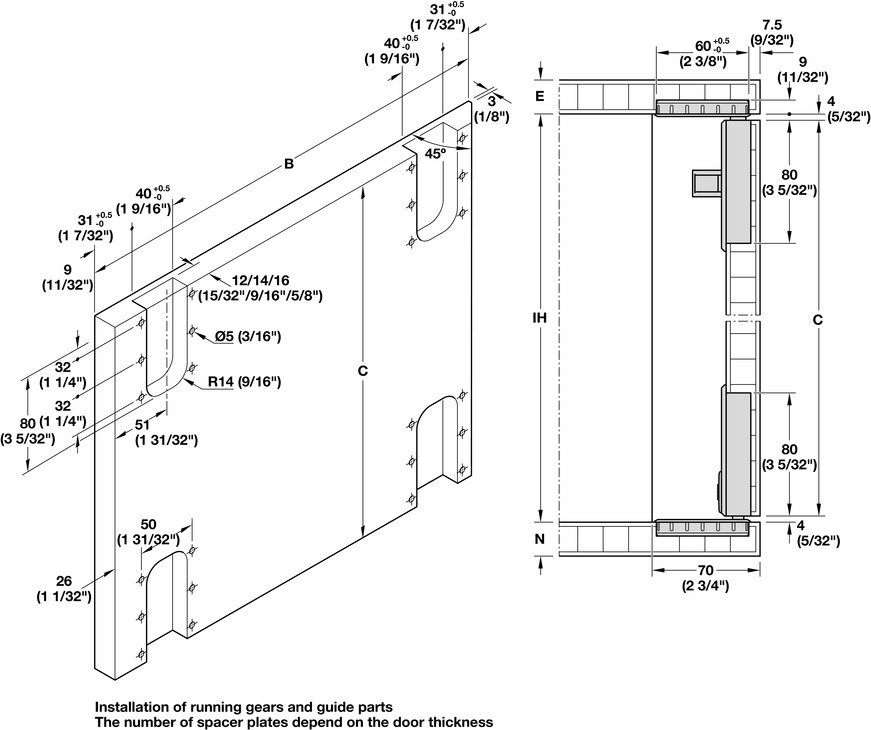

Installation: Running and guide track inside the body for groove in

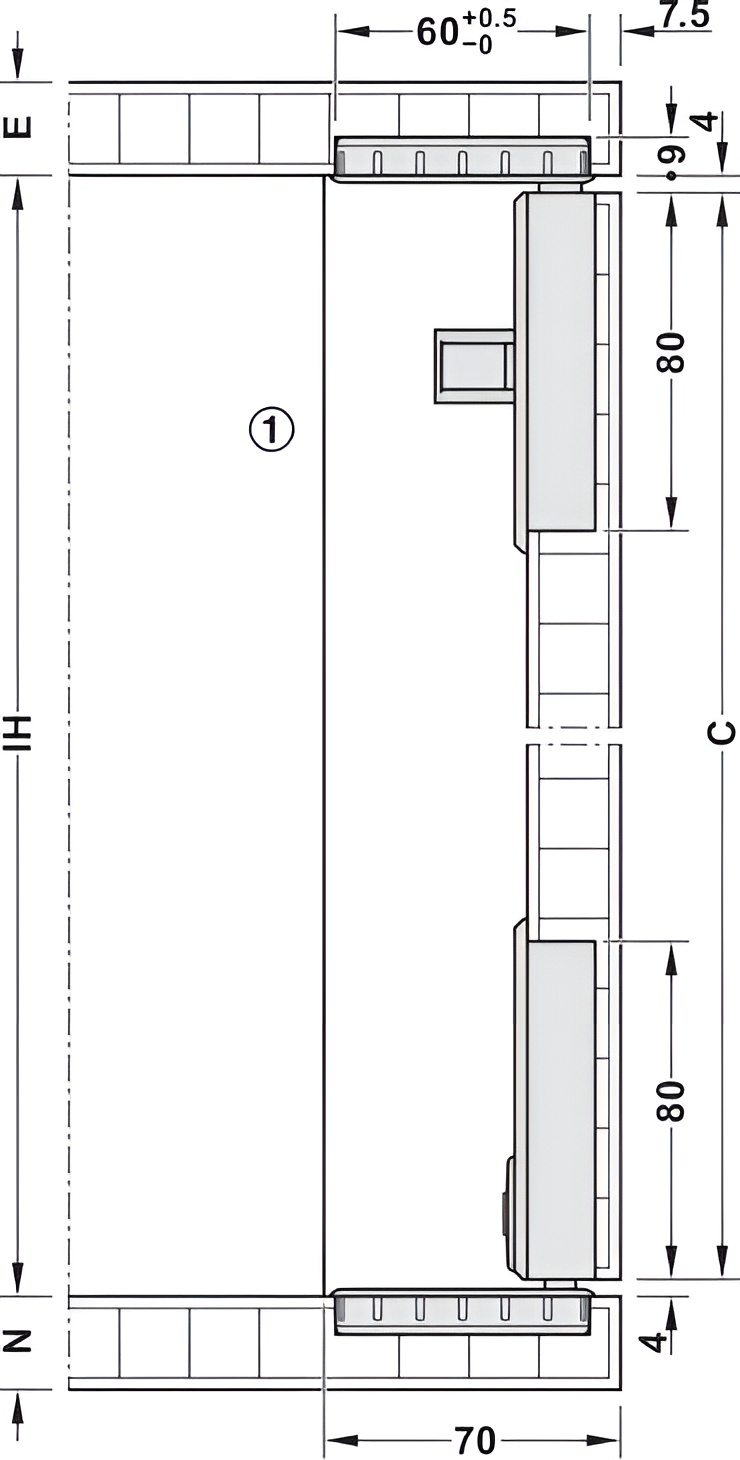

Installation depth, bottom: 70.00 mm
Installation reference: A center panel is mandatory.
Internal cabinet width: 59 3/8"
Length (inch): 2' 1 19/32"
Note on door height: 63"
Note on door thickness: 7/8" - 23/32"
Note on door weight: ≤ 44 lbs
Number of doors per system max.: 2
Order reference: Please order optional handle profiles for high-quality appearance and easy processing separately.
Running position: Bottom

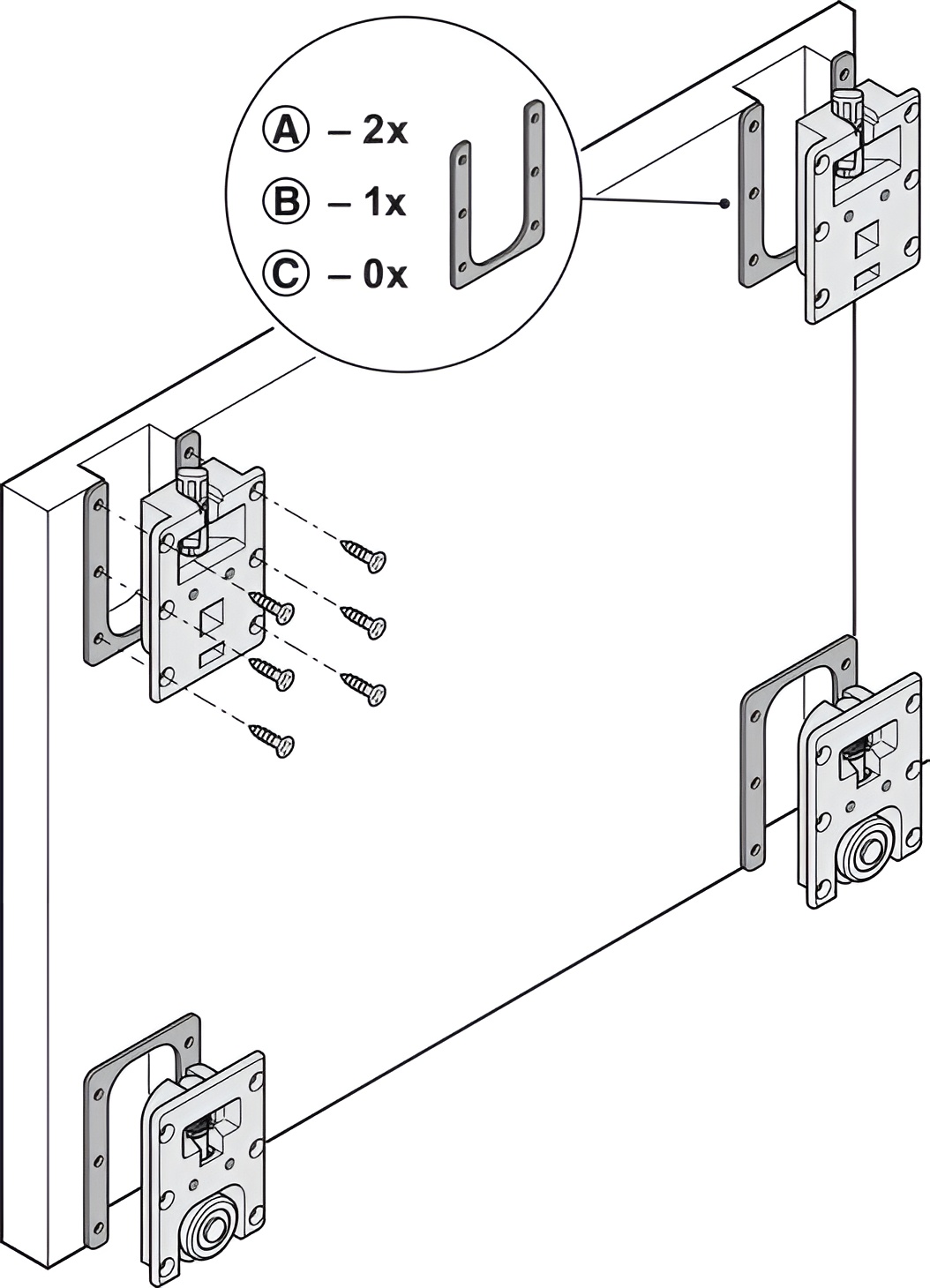

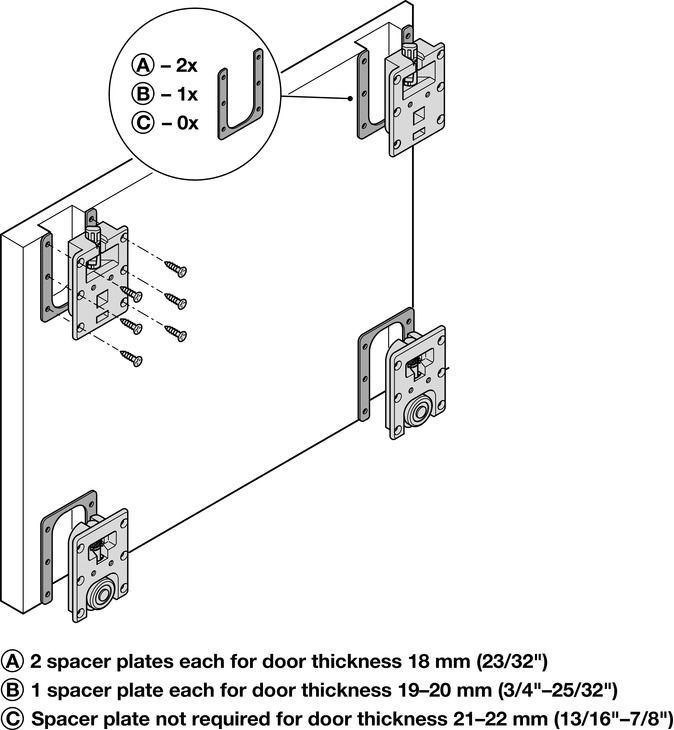

Supplied with: 2 running tracks 4 running gears, bottom 4 guide parts, top Spacer plates for door thickness 18 and 20 mm
Version: Without handles, with recessed grip profiles or inset handles
