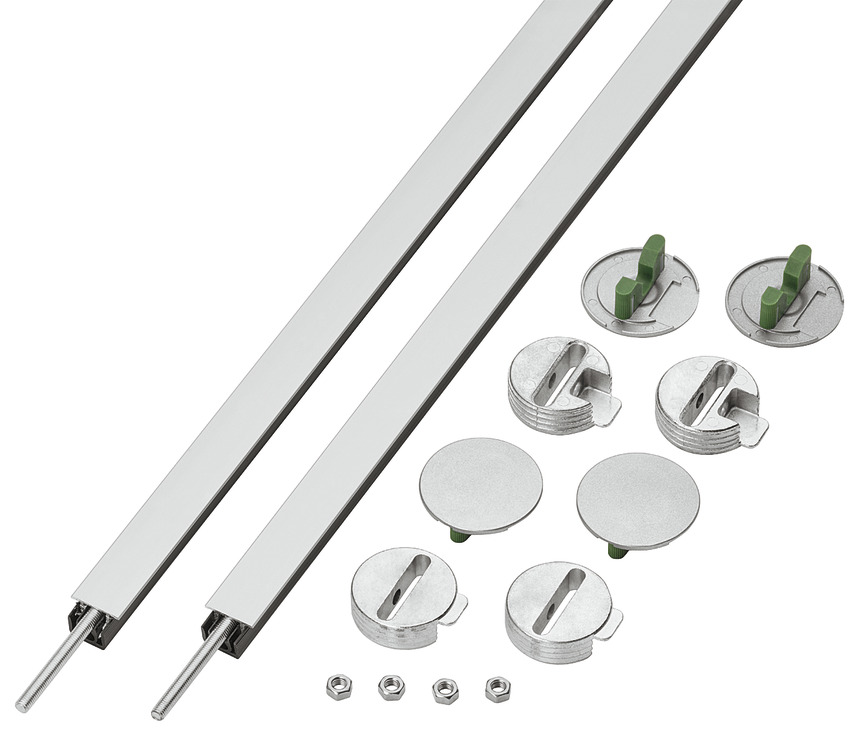

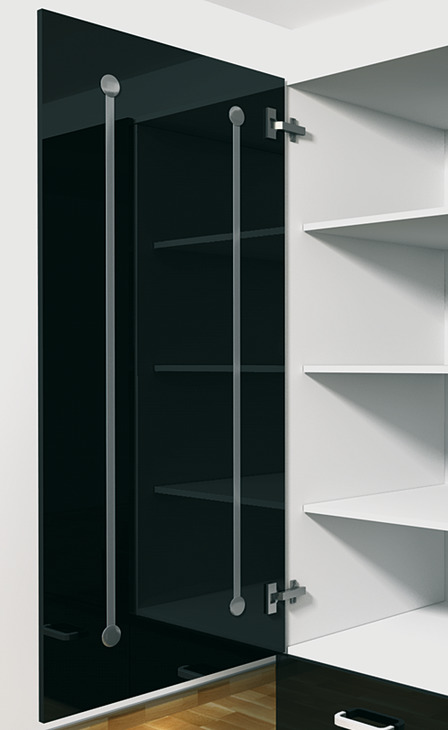

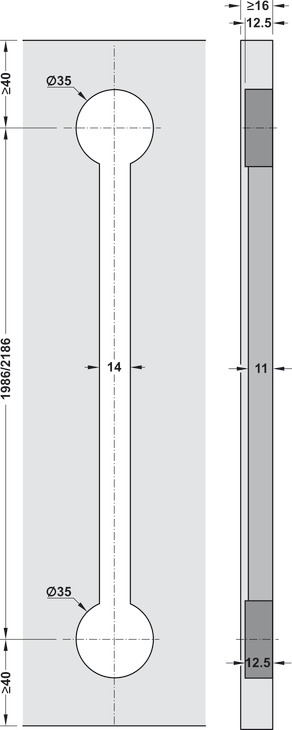

Hafele 407.92.900 Straightening fitting, Hafele Planomix, set for wooden doors offers a reliable solution for maintaining the integrity of hinged and sliding doors. Designed for door heights up to 2400 mm and thicknesses of at least 16 mm, this fitting effectively prevents warping and straightens doors that have already become misaligned. Each set includes two straightening fittings, making it ideal for comprehensive door support. Crafted from high-quality materials, the unit features a durable aluminum trim strip and an anodized cover profile that enhances both functionality and aesthetics. The fittings are easy to install through press fitting, with an adjustment facility that utilizes a hexagonal nut compatible with an SW 8 open-ended spanner. Notably, the product is not suitable for hardwood and may leave a pattern on lacquered panels due to routered recesses. The installation distance to the cup is ≤1,986 mm, ensuring compatibility with various door designs. With a sleek aluminum effect lacquered finish for cover caps, this straightening fitting not only performs well but also complements your interior finish. Optimize your door systems with the Hafele 407.92.900 for lasting performance and style.

Straightening fitting, Hafele Planomix, set for wooden doors

For hinged and sliding doors, length cover profile: 2,000 mm, door height: <=2400 mm

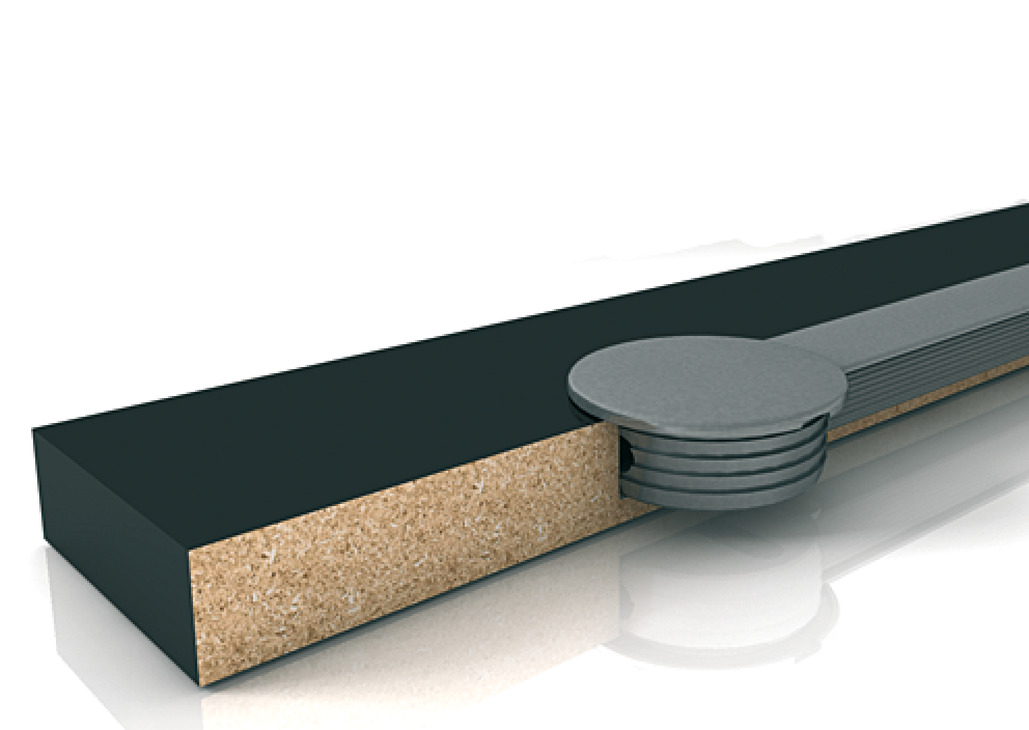

2 straightening fittings recommended per door. Not suitable for hardwood! When using this product in combination with lacquered panels, a pattern of the routered recesses may emerge on the front.

Resources

• Planomix Mounting Instructions
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.92
