Hafele 408.30.093 HAWA Concepta Connector Profile 25/30/40/50

Hafele 408.30.093 Connector Connecting Profile for HAWA Concepta 25/30/40/50 is designed to enhance the functionality of your cabinetry with sleek precision. Measuring 650 mm in length (equivalent to 2' 1 19/32"), this connector profile allows for the seamless integration of two pivot sliding doors, making it an ideal choice for setups with adjustable feet. Constructed from anodized aluminum, the profile boasts a silver finish that not only adds a modern touch but also ensures durability and resistance to wear. It is specifically engineered for the connection of two cabinets, whether they are mounted on base cabinet feet or a fixed continuous base. For installations with adjustable feet, two pieces of the 408.30.093 or the 408.30.094 are necessary for secure top and bottom connections. Conversely, for cabinets on a fixed base, one piece of the 408.30.093 at the top and one piece of the 408.30.095 at the bottom is required. With a width of 110 mm, this connector profile is versatile enough to accommodate various cabinet depths, ensuring a snug and reliable fit. Elevate your cabinet design with Hafele's innovative solutions, crafted to deliver both style and functionality. Perfect for building professionals and discerning homeowners alike.

Connector Connecting Profile for HAWA Concepta 25/30/40/50

Opening back-to-back, length: (2' 1 19/32") 650 mm

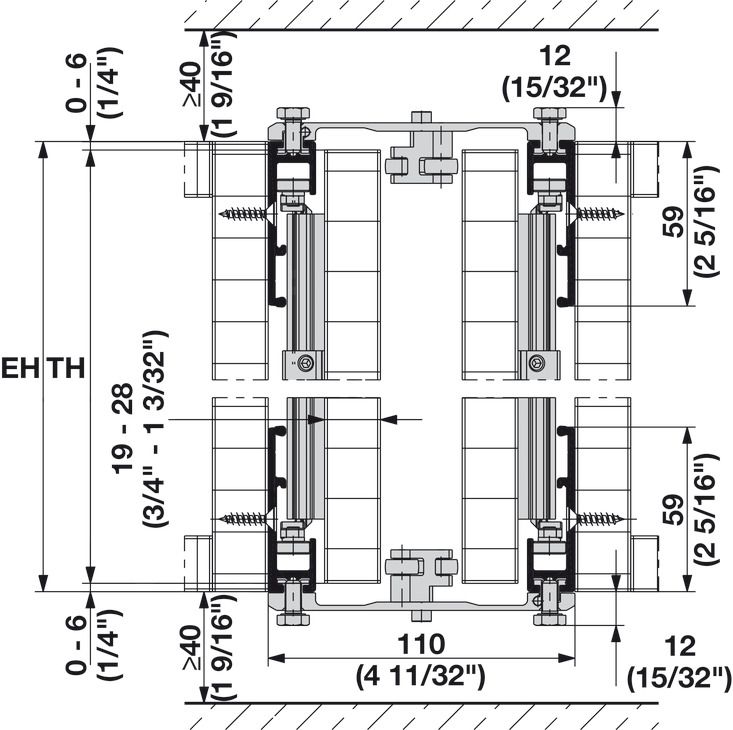

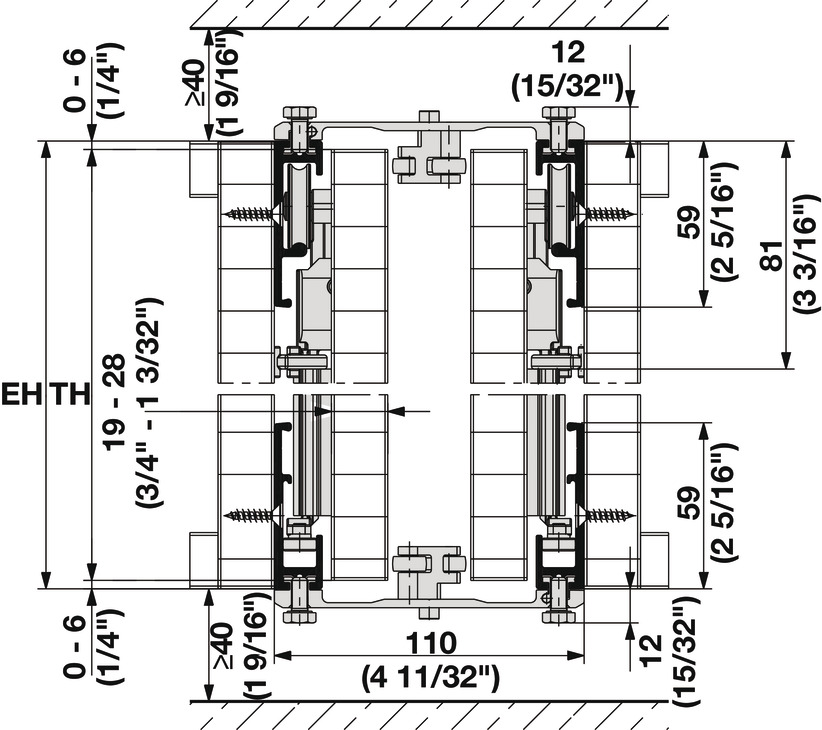

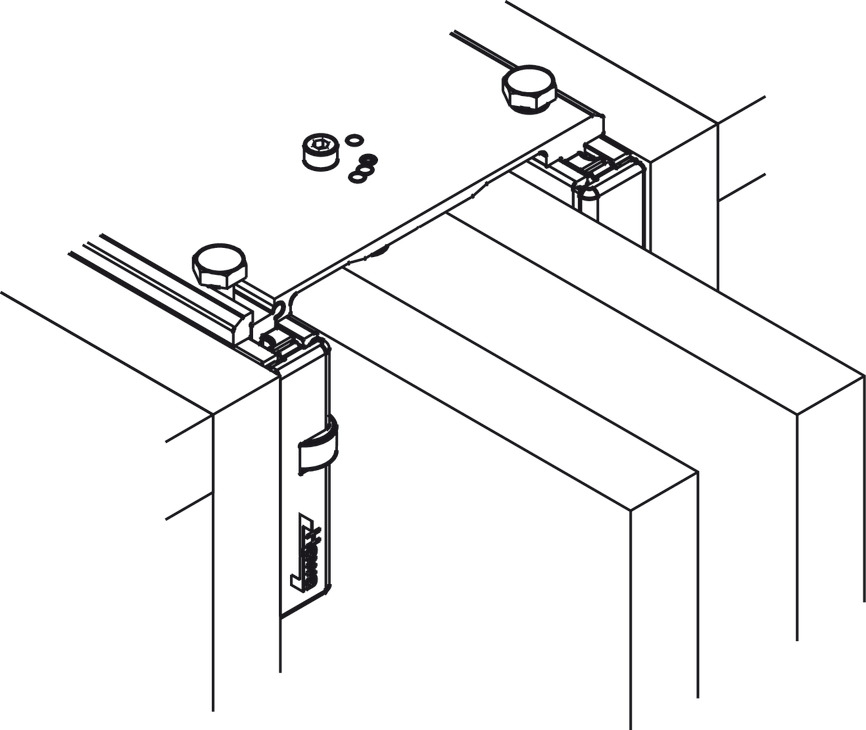

Pocket for 2 pivot sliding doors:To connect 2 cabinets that are mounted on base cabinet feet order 2 pieces of either item 408.30.093 or 408.30.094 for connecting the 2 cabinets at top and bottom. Consider the depth of cabinet when ordering.To connect 2 cabinets that are mounted on a fixed continuous base, order 1 piece of either item 408.30.093 or 408.30.094 at the top and 1 piece of 408.30.095 at the bottom.

Resources

• CAD data
• Manufacturer information
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 7.131
