Hafele 408.30.243 Connector Connecting Profile for HAWA Concepta 25/30/40/50 is designed to facilitate seamless integration in half overlay applications. With a length of 650 mm (2' 1 19/32"), this connector efficiently connects the outer side panel to cabinets featuring a depth of 650 mm (25 9/16"). For cabinets with a depth ranging between 651 mm and 900 mm (25 5/8" - 35 7/16"), two pieces of the 408.30.092 should be utilized. Crafted from durable aluminum, this connector boasts a sleek, anodized silver finish that enhances the aesthetic appeal of your cabinetry. Measuring 40 mm in height and 55 mm in width (2 3/16"), it provides the structural integrity necessary for a pivot sliding door setup for one door. This versatile connector is suitable for various cabinetry designs, ensuring that your sliding doors operate smoothly and efficiently. Easy to ship via UPS, the Hafele 408.30.243 is an essential choice for building professionals and discerning homeowners looking to optimize their interior spaces with high-quality hardware solutions. Elevate your cabinetry with the reliability and functionality that Hafele is known for.

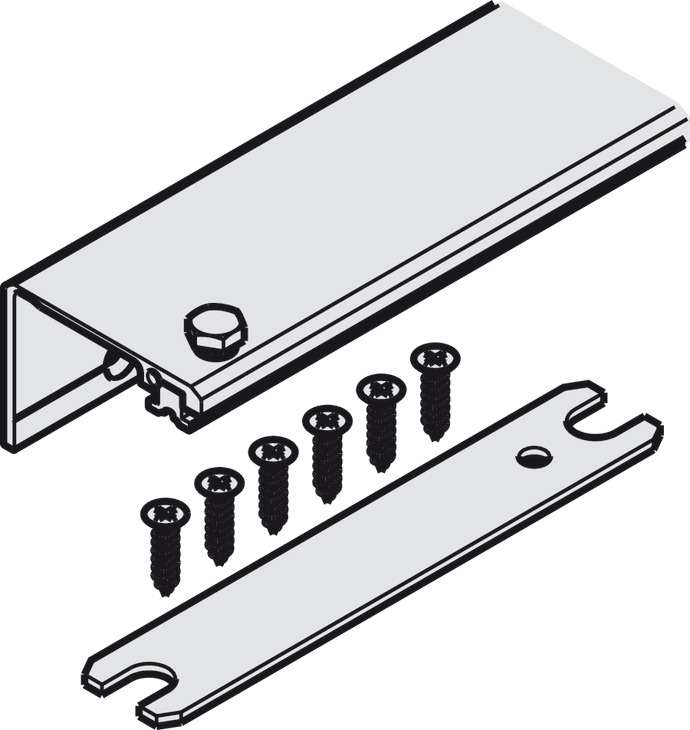

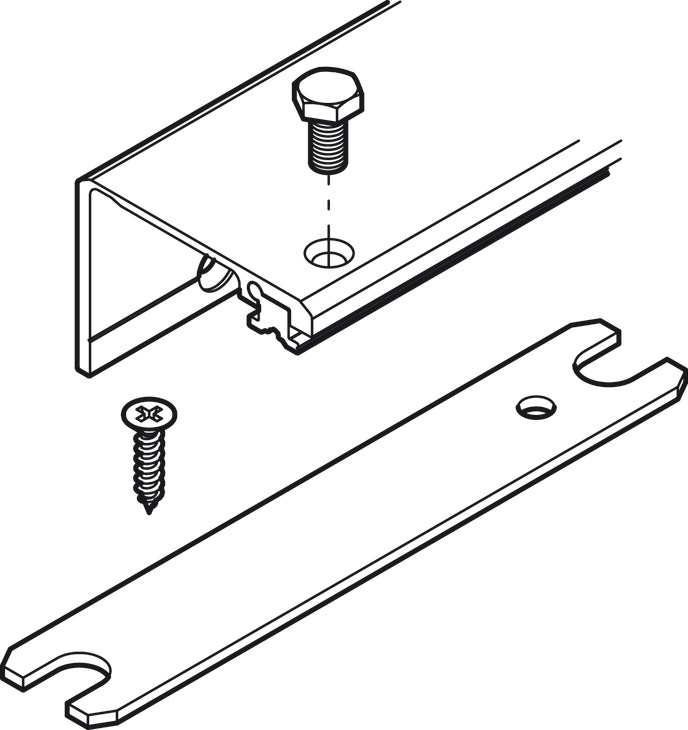

Connector Connecting Profile for HAWA Concepta 25/30/40/50
For half overlay application, length: (2' 1 19/32") 650 mm
Pocket for 1 pivot sliding door:To connect the outer side panel to the cabinet with a cabinet depth of 650 mm (25 9/16") order 1 set of 408.30.243, for cabinet depth between 651 - 900 mm (25 5/8" - 35 7/16") order 2 pieces of 408.30.092.
Area of application: for 1 pivot sliding door for 1 doors
Color/finish: Silver colored, anodized
Description in table of components: parking pocket for 1 door:Connector connecting profile, set of 2
Height: 40.00 mm
Length: 650 mm
Length (inch): 2' 1 19/32"
Material: Aluminum
Order reference: Pocket for 1 pivot sliding door: To connect the outer side panel to the cabinet with a cabinet depth of 650 mm (25 9/16") order 1 set of 408.30.243. For cabinet depth between 651 - 900 mm (25 5/8" - 35 7/16"), order 2 pieces of 408.30.092.
Width: 55.00 mm
Width (inch): 2 3/16"
