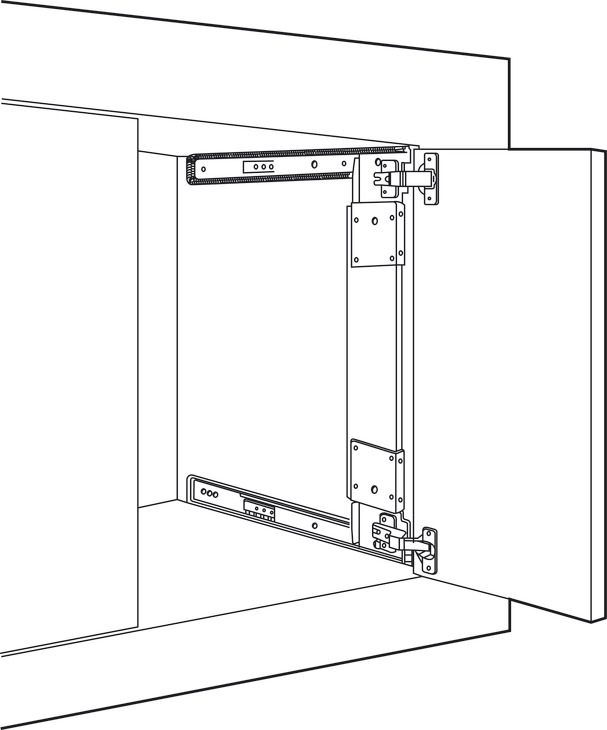

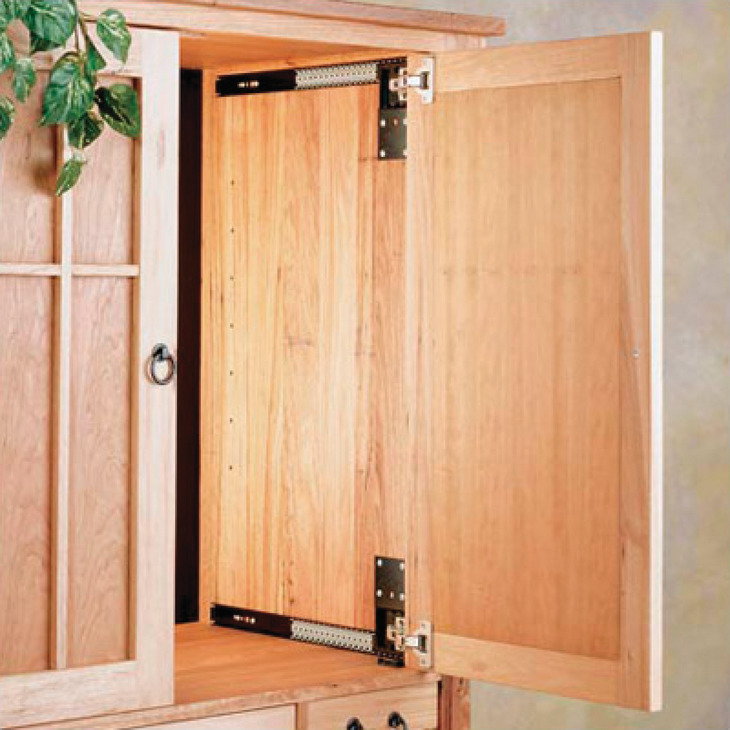

Hafele 408.35.347 Accuride 1234 Pocket Door System (Hinges Not Included)Hafele 408.35.347 Pocket Door System, Accuride 1234 offers an innovative solution for concealed doors in entertainment centers, wall units, and cabinets. Designed to accommodate doors with a maximum height of 1,067 mm and a weight capacity of up to 13.6 kg, this system ensures seamless functionality and aesthetic appeal. Measuring 456 mm (18 inches) in length, the system features a cut follower strip that is 6 inches shorter than the door height, with a maximum thickness of 19 mm (3/4 inch). The wood follower strip is provided by the customer, allowing for customization to fit your specific project needs. Notably, the system is compatible with door thicknesses ranging from 16 mm to 31.75 mm (5/8 inch to 1 1/4 inch), making it versatile for various applications. Hafele's pocket door system is supplied with two slides, two pivot blocks, and all necessary mounting hardware, ensuring ease of installation. With a load-bearing capacity of 30 lbs, this robust system balances performance with durability. Please note that the required door fixing sets, including concealed hinges and mounting plates, must be ordered separately. Experience the perfect blend of style and functionality with the Hafele 408.35.347 Pocket Door System.
Pocket Door System, Accuride 1234 (Hinges not included)
Length: 456 mm (18")
Cut follower strip is 6" shorter than door height Maximum thickness for follower strip is 19 mm (3/4") Detent out
Wood follower strip is provided by the customer Cut follower strip is 6" shorter than door height Maximum thickness for follower strip is 19 mm (3/4") Detent out
Please order door fixing sets (including concealed hinges, mounting plates, door stops and all fixing screws) separately
Attributes
Area of application: For concealed doors in entertainment centers, wall units, and cabinets

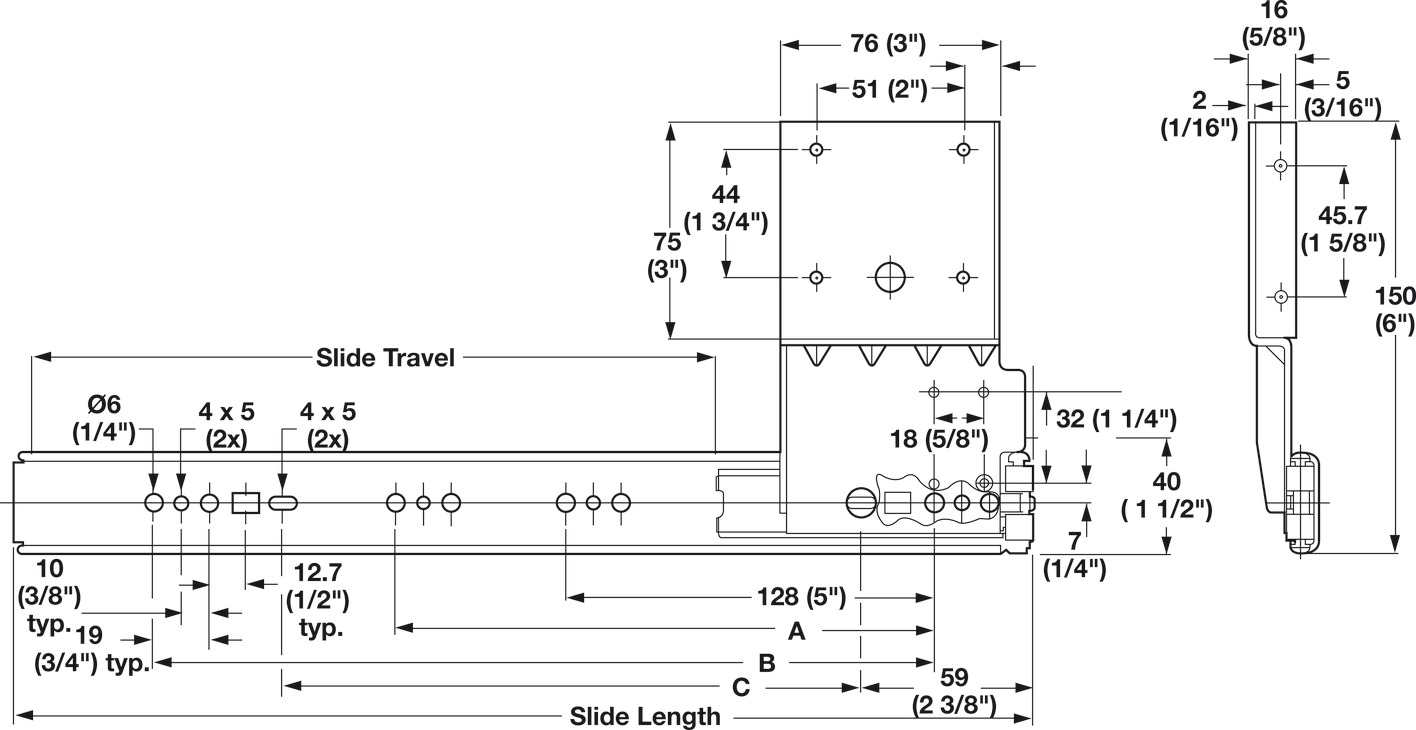

Dim. B: 352.00 mm
Dim. C: 11 1/8"
For door height: ≤1,067 mm
For door material: wood
For door thickness: 16 – 31.75 mm
For door thickness max.: 1 1/4"
For door thickness min.: 5/8"
For door weight: ≤13.6 kg
For door width: ≤1,067 mm
Installation: Wood follower strip is provided by the customer Cut follower strip is 6" shorter than door height Maximum thickness for follower strip is 19 mm (3/4") Detent out
Length (inch): 18"
Load bearing capacity: 30 lbs.
Material/finish: Black, Zinc
Note on door height: Horizontal max. 24", vertical max. 42"
Note on door width: Horizontal max. 42", vertical max. 24"
Runner length: 456.00 mm
Set: Set with tracks

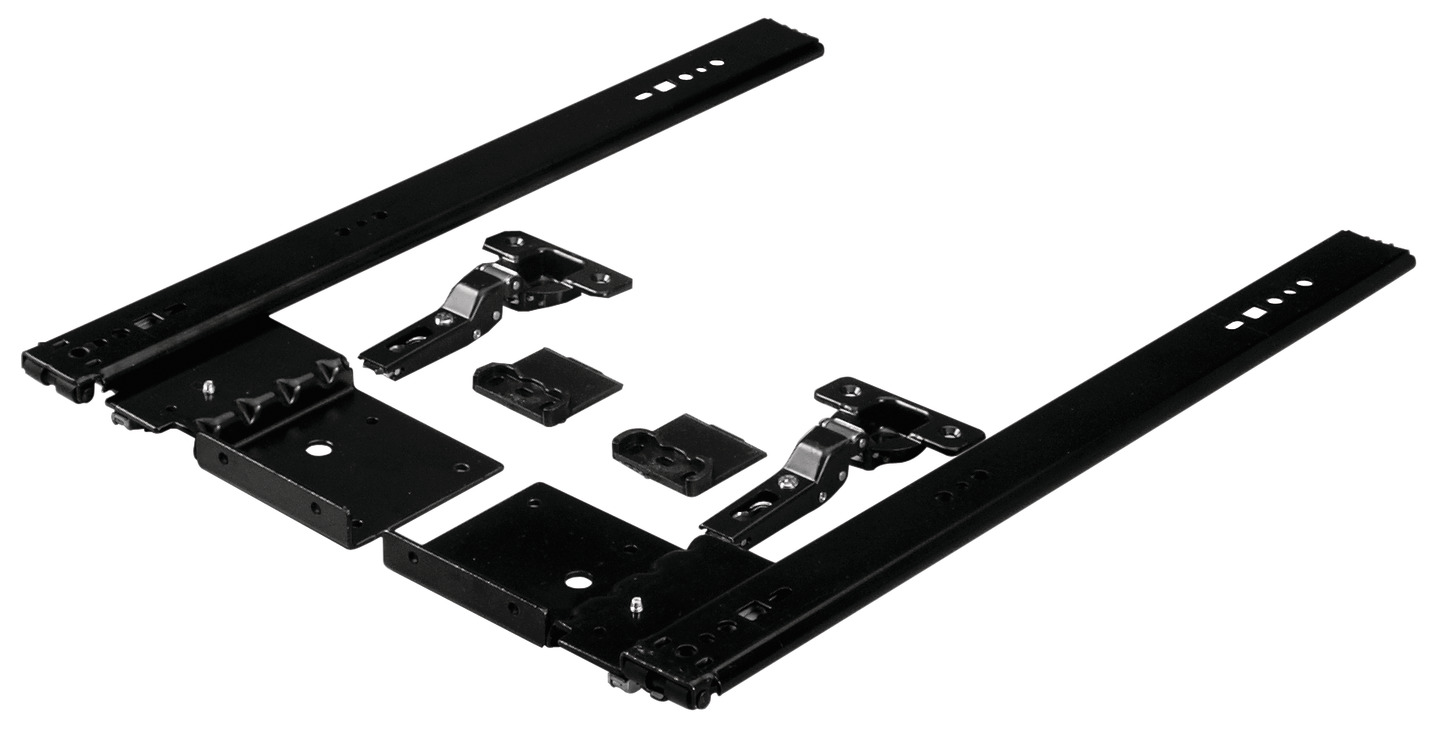

Supplied with: 2 slides 2 pivot blocks and all mounting hardware
Travel: 13 3/8"
