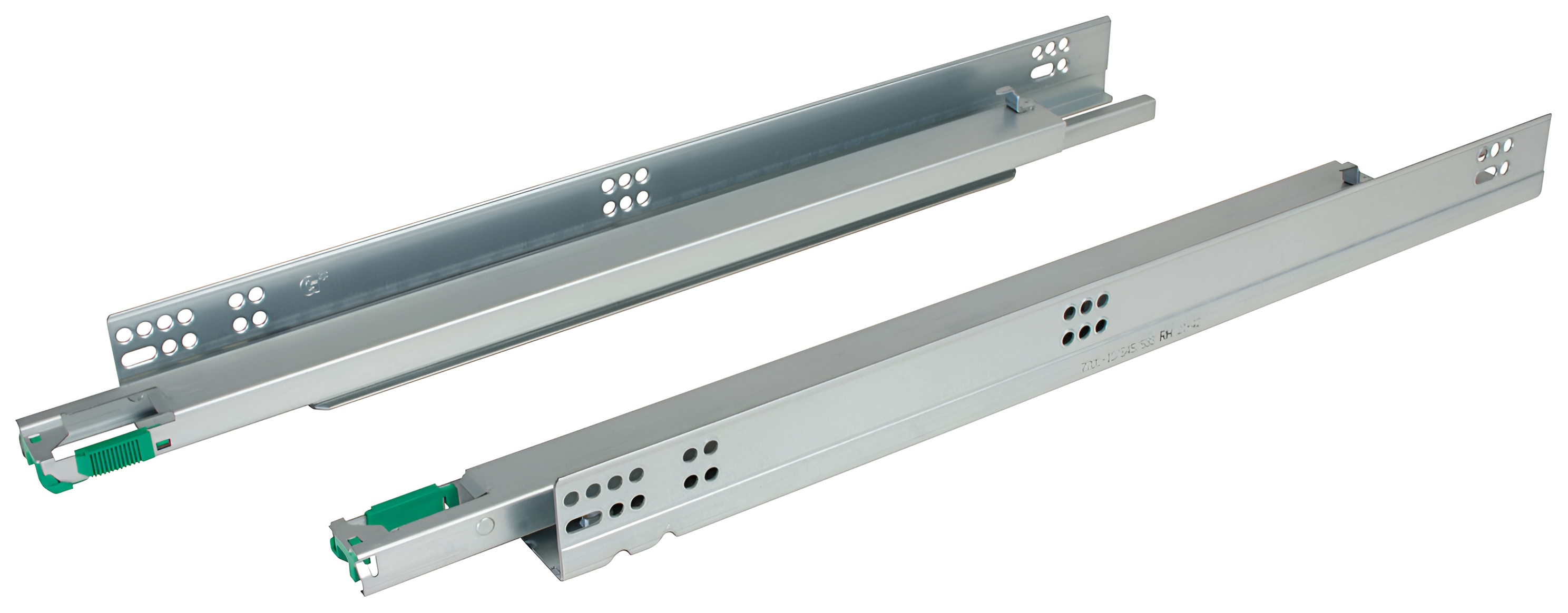

Hafele 433.19.388 Grass Dynapro 2.0 Concealed Undermount Drawer Slide
Images may not represent actual product and finish

Hafele 433.19.388 Grass Dynapro 2.0 Concealed Undermount Drawer Slide

Your Price: $27.26
Retail Price:$39.60
Your Savings:$12.34(31%)
Experience seamless functionality with the Hafele Dynapro 2.0 Drawer Slide-full extension, soft close, and tool-less adjustments for perfect alignment.
Part Number : HAF_43319388
Availability: 7294 In Stock
Visa, Mastercard, American Express, Discover, PayPal, Amazon Pay

Net 30 terms available

Hafele 433.19.388 Grass Dynapro 2.0 Concealed Undermount Drawer Slide

Hafele 433.19.388 Drawer Slide, Concealed Undermount, Grass, Dynapro 2.0 16 offers a seamless solution for modern cabinetry with its full extension design. Measuring 21 inches in length, this single drawer slide supports a maximum load-bearing capacity of 40 kg, ensuring robust performance for various applications. Engineered with integrated soft close liquid damping, this drawer slide guarantees a sleek and smooth closing experience, enhancing the overall functionality of your furniture. The fully synchronized runner design provides exceptional silent operation, making it perfect for spaces where tranquility is paramount. Installation is straightforward, thanks to the tool-less integrated height adjustment of +3.5 mm (9/64") and additional side and depth adjustments. The clip features allow side-to-side, height, depth, and tilt adjustments, enabling perfect drawer alignment with minimal effort. This product meets or exceeds BHMA Grade 1 testing requirements, ensuring reliability and durability. Crafted from zinc-plated steel, the Hafele 433.19.388 is designed for drawer boxes with a thickness of 12.7–16 mm (1/2"–5/8"). This versatile drawer slide not only enhances the aesthetics of your cabinetry but also improves everyday usability, making it an ideal choice for both building professionals and discerning homeowners.

Grass - Undermount Drawer Slide, Dynapro 2.0 16

Full Extension, 21" length, single


Integrated soft close liquid damping provides sleek, smooth closing Fully synchronized runner for the ultimate in smooth silent operation Continuous self-locking of drawer when pushed onto the drawer Clip features: Side to side, height, depth and tilt adjustment for perfect drawer alignment - Tool-less integrated height adjustment +3.5 mm (9/64") - Tool-less adjustment adapter for side adjustment ±1.5 mm (1/16") and depth adjustment +3 mm (1/8") Meets or exceeds BHMA Grade 1 testing requirements


Attributes

Color/finish: Zinc-plated

Drawer length: 533.00 mm

Drawer width max.: 48"

Features: 2-D

Load bearing capacity: 40.00 kg

Material: Steel

Model: F130100733204

Type of pull out: Full extension

Version: For 12.7–16 mm (1/2"–5/8") drawer box
