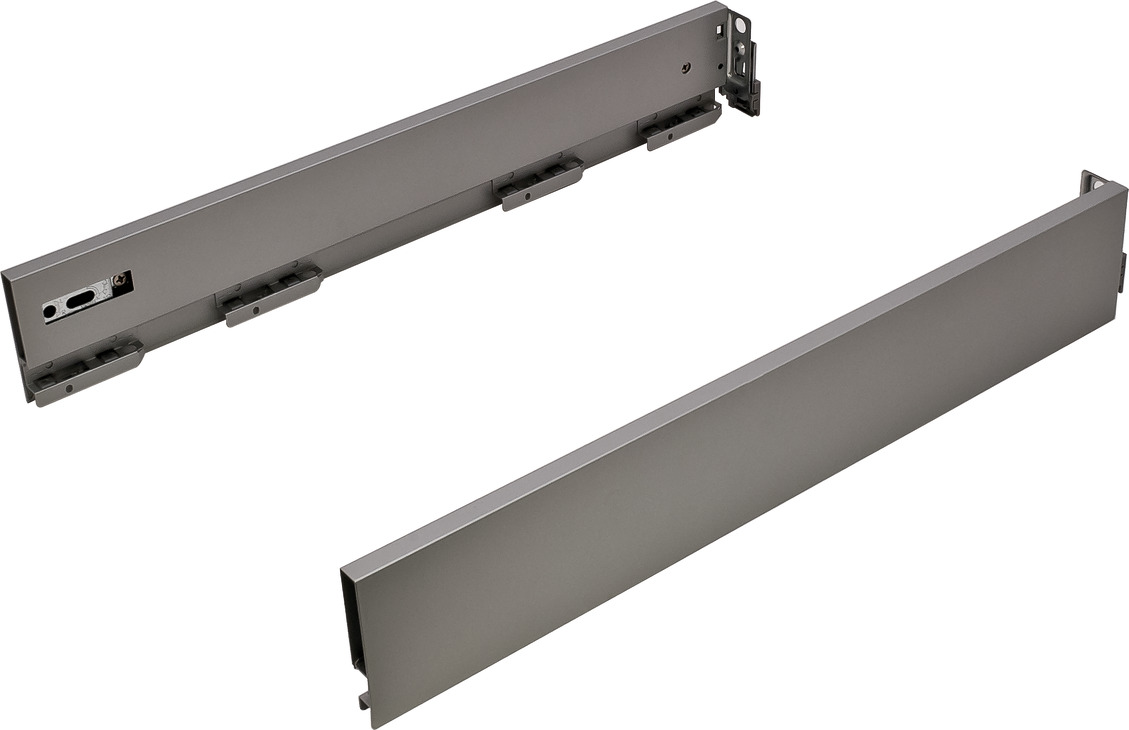

Hafele 550.41.554 Drawer Side Runner System offers a complete solution for modern cabinetry, designed to enhance both aesthetics and functionality. With a side height of 89 mm (3-1/2 inches) and a slim 13 mm (1/2 inch) width, this system fits seamlessly into any design, accommodating 90° straight corners and sides. The elegant silver gray finish adds a contemporary touch, making it suitable for both face frame and frameless cabinets. Engineered for ease of installation, the Hafele 550.41.554 features integrated height and side adjustment, along with tilt adjustment at the back, ensuring precise alignment. The tool-free assembly process simplifies setup, while optional 4D depth adjustment allows for further customization. This system is designed exclusively for use with Dynapro concealed undermount slides, specifically the Dynapro 16 2-D series, which must be ordered separately. Constructed from durable steel, this drawer side runner system is built to withstand daily use. With a nominal length of 530 mm (21 inches), it is perfect for a variety of drawer applications. To complete your setup, don't forget to order the necessary locking devices and marking jig. Elevate your cabinetry projects with the reliability and modern design of the Hafele 550.41.554.
Drawer side runner system, Side Height (3-1/2") 89 mm
Silver gray, drawer length: 533 mm (21")
Ship via: Can Ship UPS
Area of application: For face frame and frameless cabinets
Color/finish: Silver gray
Drawer length: 21"
Drawer side height: 89.00 mm
Height (inch): 25 1/4"
Material: Steel
Nominal length: 530.00 mm

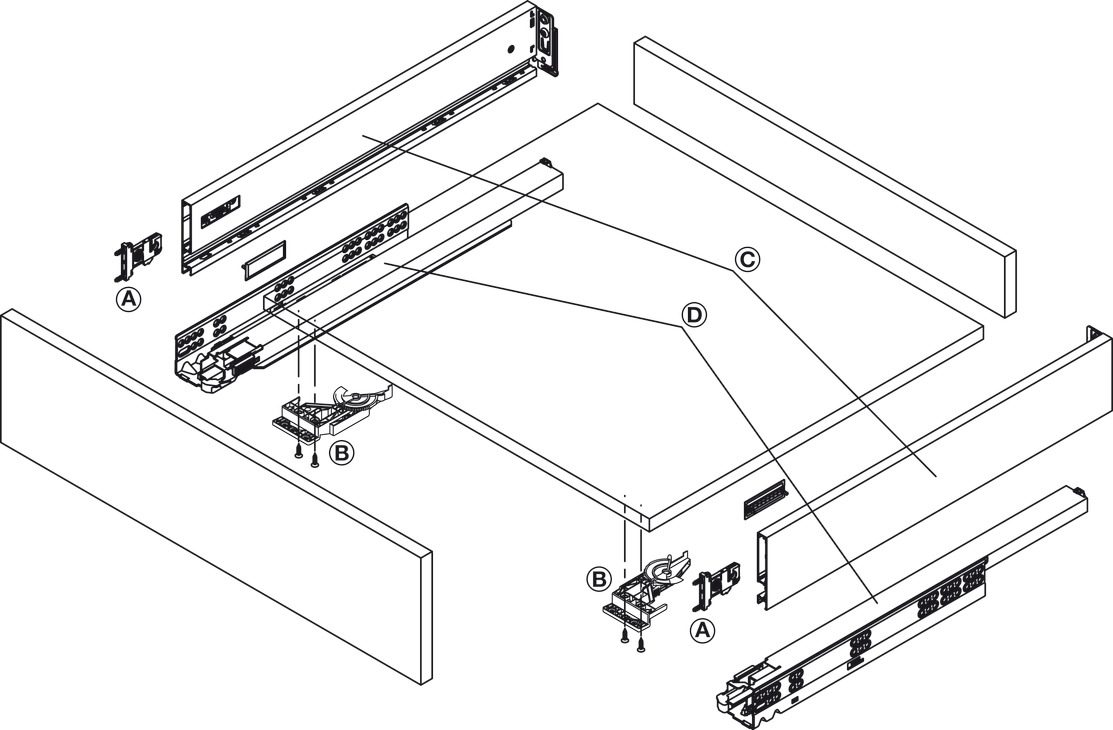

Order reference: Please order separately: 2 x locking device with flange (a left and right) 1 x marking jig 1 x Grass Dynapro full extension slide
