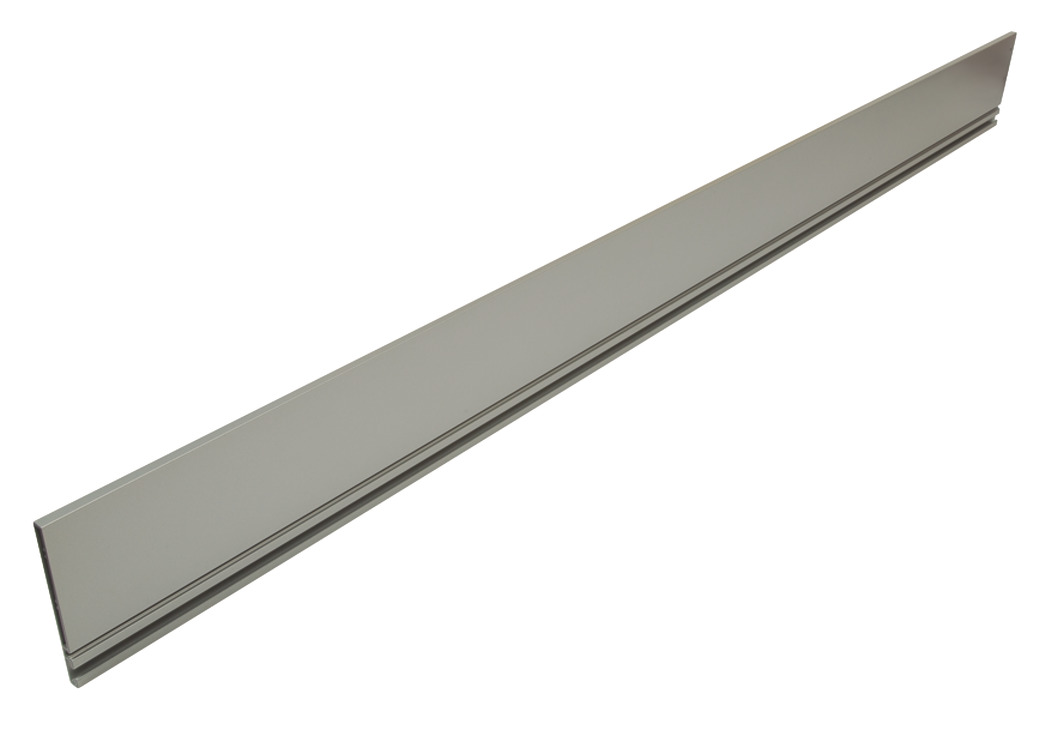

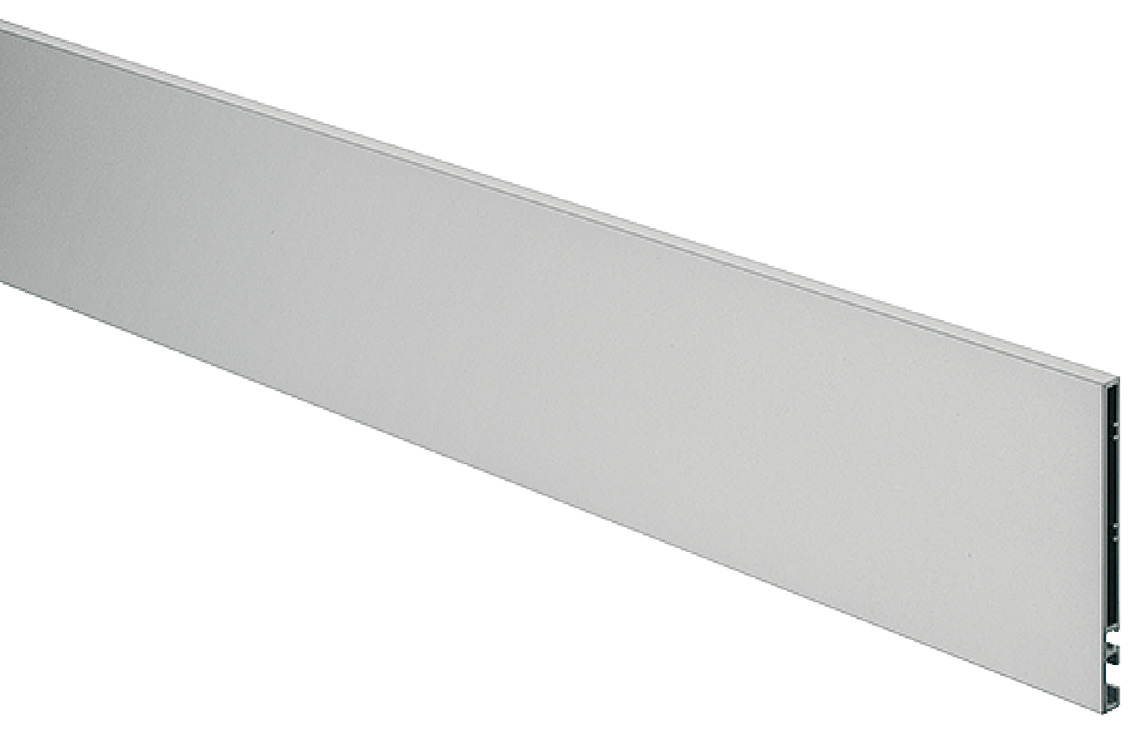

Hafele 550.46.520 Front Panel for Grass Vionaro is designed to enhance the functionality and aesthetics of your internal drawer applications. Crafted from high-quality aluminum, this silver-gray front panel complements the sleek, modern Cubist design featuring clean 90° angles. With a slimline width of just 13 mm (1/2"), it seamlessly integrates into your cabinetry while providing a refined look. Measuring 104 mm (3-1/2") in height and 1,160 mm (45 11/16") in length, this panel is tailored for cabinets with a width of 1,200 mm. The bottom panel is cut to size without notching, allowing for a clean finish and smooth installation. For optimal fit, an 8 mm allowance should be made for screw fixing to the front brackets, ensuring a secure attachment. This front panel is specifically suitable for the Grass drawer side runner system, making it an ideal choice for those looking to achieve a cohesive and polished design. Its color-coordinated finish not only enhances the overall appearance but also provides lasting durability. Upgrade your storage solutions with the Hafele 550.46.520 Front Panel, where style meets functionality.
Front Panel for Grass Vionaro for Side Height (3-1/2") 89 mm
for Vionaro H89 internal drawer, Silver
Area of application: Allows Vionaro drawers to be used in an internal drawer application
Color: Silver-gray
Color/finish: Silver gray
Finish: Silver
For cabinet width: 1,200.00 mm
For side panel thickness: 16 mm
Height: 104.00 mm
Height (inch): 3 1/2"
Installation: For cutting to size: Internal cabinet width – 8 mm for screw fixing to front brackets
Installation reference: Color coordinated front panel profile Cubist design with 90° angles Slimline 13 mm (1/2") side width Bottom panel is cut to size without notching
Length: 1,160.00 mm
Length (inch): 45 11/16"
Material: Aluminum
Order reference: Cut dimension is determined by ICW-8 mm (5/16")
Panel height: 4 3/32"
Suitable for: Drawer side runner system Grass
Thickness (inch): 5/16"
