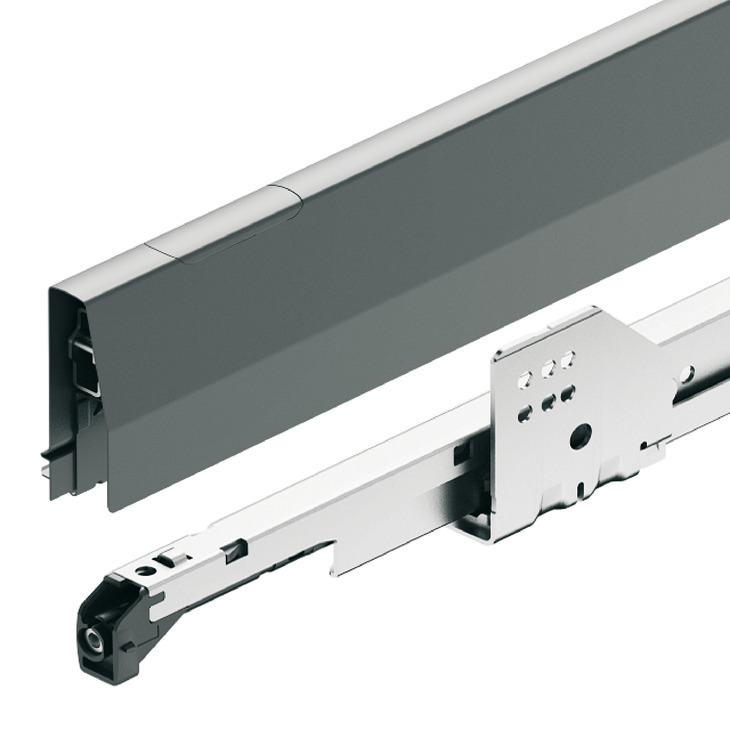

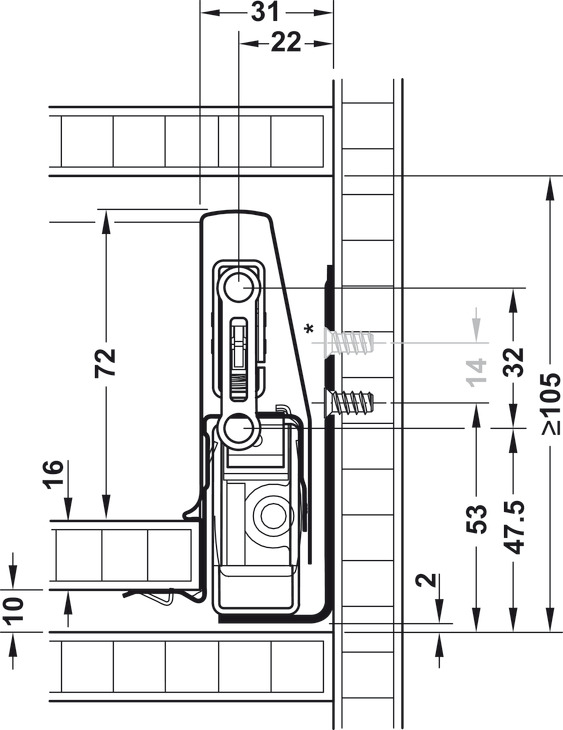

Hafele 551.54.347 Drawer Side Runner System delivers exceptional functionality and durability for modern cabinetry. Designed for the Hafele Matrix Box P70, this system features a drawer side height of 92 mm (3-5/8") and can support a remarkable load-bearing capacity of 70 kg (154 lbs). The anthracite finish enhances its aesthetic appeal, making it an ideal choice for contemporary spaces. Equipped with an integrated Soft & Silent mechanism, this runner system ensures a smooth and consistent close, minimizing noise while enhancing user experience. The synchronized roller design facilitates even and gentle movement, promoting effortless access to contents. Full extension slides allow for maximum drawer access, making it easy to reach even the furthest items. Installation is user-friendly, with a tool-free mounting and disassembly process. Height adjustments of ± 2.5 mm and side adjustments of ± 1.5 mm ensure optimal alignment. The powder-coated drawer sides and galvanized cabinet rail enhance durability, while the profiles come with pre-attached material for the drawer bottom and back. For optimal performance, please order the recommended cylindrical head screw (Cat. No. 013.20.930) and front fixing brackets separately. Elevate your cabinetry with the reliable and stylish Hafele 551.54.347 Drawer Side Runner System.

Drawer side runner system, Hafele Matrix Box P70, drawer side height (3-5/8") 92 mm, load bearing capacity (154 lbs) 70 kg

Drawer side heigh 92 mm, Load bearing capacity 70 kg, Anthracite, length: 600 mm (23 5/8")

Resources

• CAD data
• Fitting instructions for Matrix Box P 92 / 115
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 8.8
