Hafele 553.59.602 Gallery Rail, Round, Hafele Matrix Box P offers a practical solution for door front fixing in pull-out applications. Measuring 350 mm (13 3/4") in length, this rail features a sleek white, coated finish that seamlessly complements drawer sides, enhancing the overall aesthetic of your cabinetry. Crafted from durable steel, the gallery rail boasts a diameter of 11.00 mm (7/16"), ensuring robust support for your installations. Its design allows for a tilting angle adjustment of ±2 mm, providing flexibility in positioning the front panel for optimal functionality and style. This adaptability is crucial for tailored installations that meet specific design requirements. The Hafele 553.59.602 is suitable for side panel thicknesses of 16 or 18–19 mm, making it versatile for various cabinet configurations. Each set is supplied with two gallery rails, four front brackets (two each for press fitting and screw fixing), and two rear panel fittings, simplifying the installation process. With the capability to ship via UPS, this product is not only efficient in function but also convenient for delivery. Enhance your cabinetry with the reliability and quality of Hafele’s gallery rail solutions.

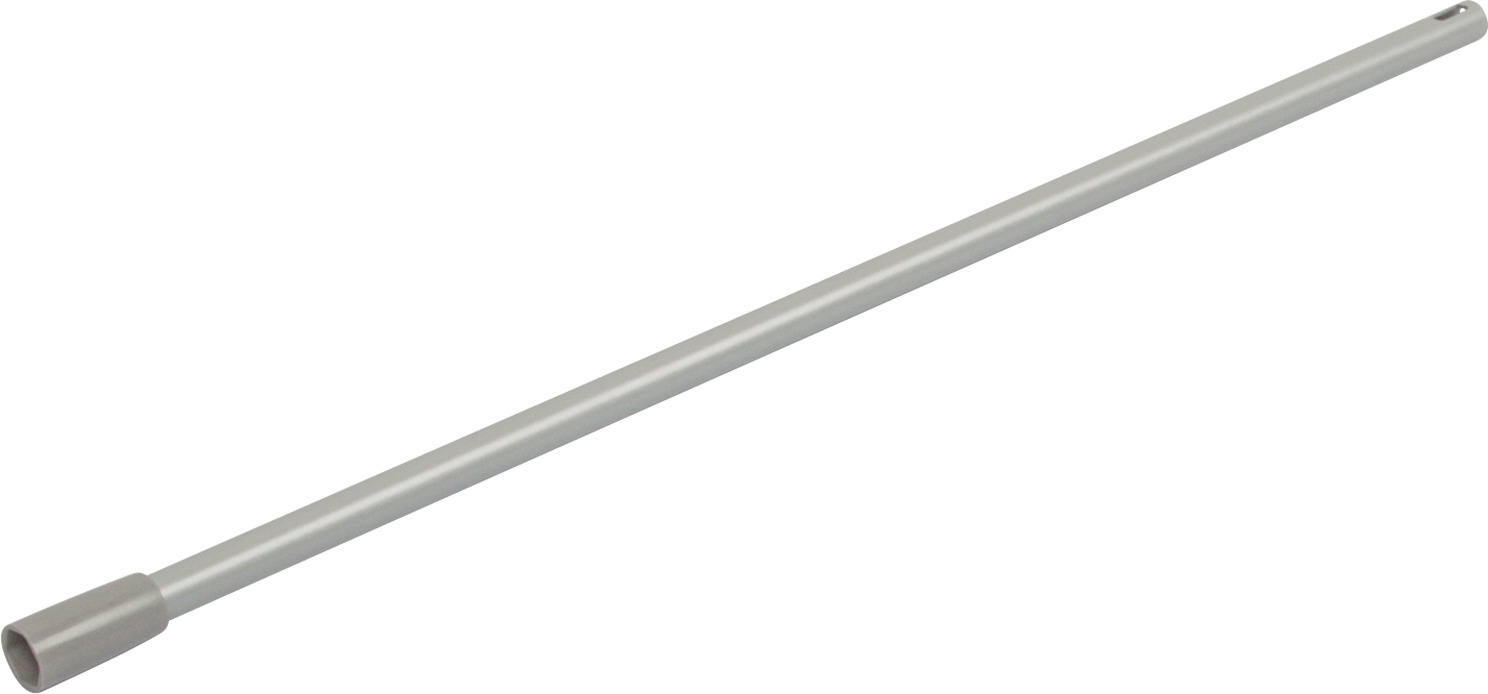

Gallery Rail, Round, Hafele Matrix Box P
For pull out for door front fixing, Length 350 mm (13 3/4"), white
Area of application: for pull out for door front fixing
Color/finish: White, Coated, Coated
Diameter: 11.00 mm
Diameter (inch): 7/16"
For side panel thickness: 16 or 18 –19 mm
Length (inch): 13 3/4"
Material: Steel
Nominal length: 350.00 mm

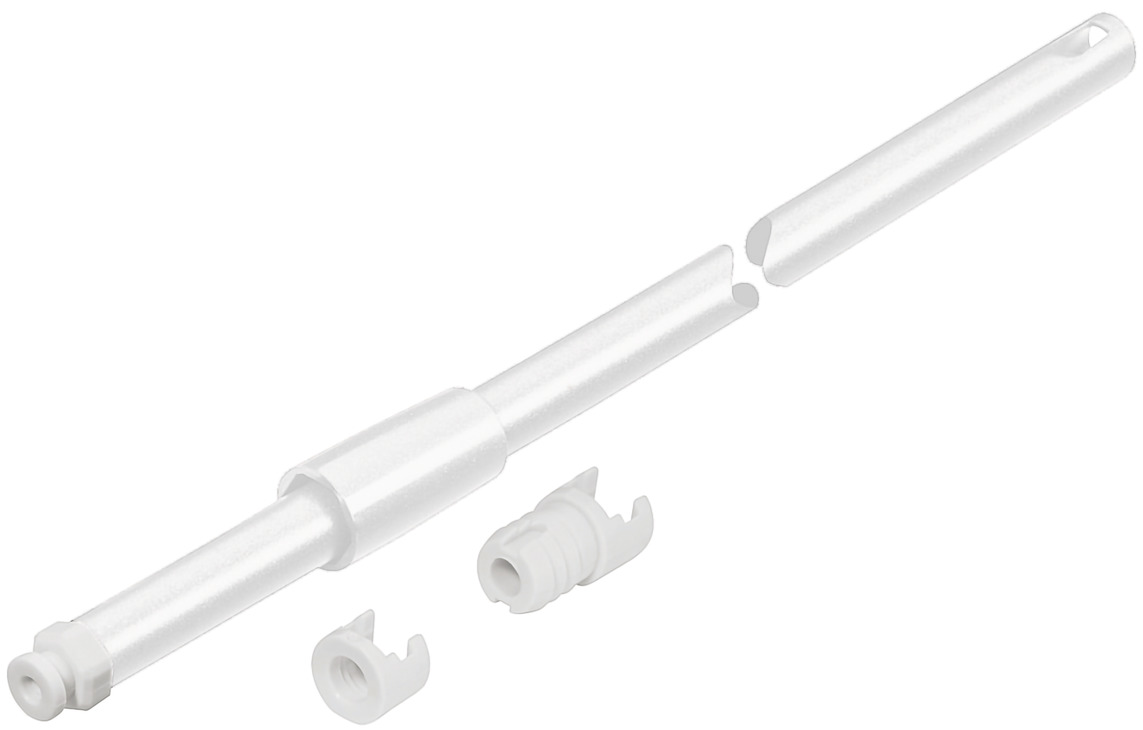

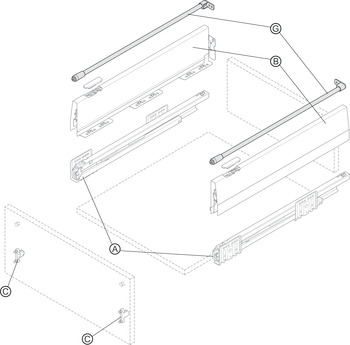

Supplied with: 2 gallery rails 4 front brackets (2 each for press fitting and for screw fixing) 2 rear panel fittings
