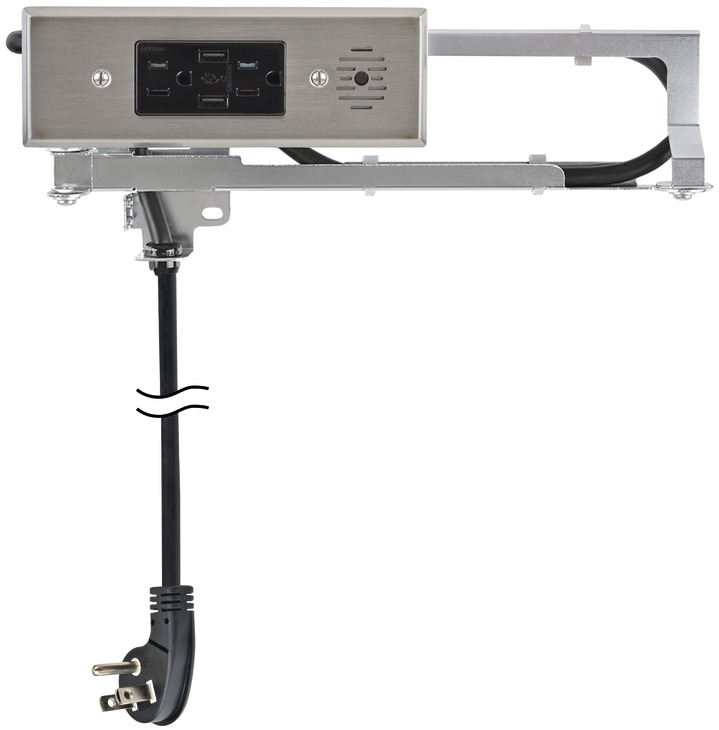

Hafele 822.53.361 Docking Drawer Blade with 2x15A AC Outlets 2xUSB-A Ports

Hafele 822.53.361 Docking Drawer, Blade is designed to seamlessly integrate power and charging capabilities into your cabinetry. Featuring two 15A AC outlets and two USB-A ports, this docking drawer allows you to easily charge and power multiple devices while keeping them neatly stowed away. Constructed with a stainless steel finish, the Docking Drawer fits cabinet depths of 610 mm (24") and requires a minimum drawer box width of 380 mm (15"). The installation process is simplified, with every outlet designed to plug directly into the system, using a 14 AWG cord approved for both residential and commercial installations. With a maximum rated current of 15 amps at 120 VAC, it offers reliable performance. One of the standout features is the inclusion of USB-C with Power Delivery, which charges devices up to 70% faster than traditional USB-A ports and provides up to 30W for larger devices like tablets and laptops. Safety is prioritized with an interlock thermostat that de-energizes the outlet in high temperatures, along with an optional Safety Interlock Box for additional protection. This Docking Drawer is ideal for both residential and commercial projects, ensuring your devices are always ready to use.

Docking Drawer - In Drawer Outlet, Blade with 2 x 15A AC outlets and 2 x USB-A ports

15 Amp Series, Model #1514-110S, stainless steel

Docking Drawer Blade Duo and Blade feature one size for all outlets for easy specification and installation All outlets can charge & power all of your devices Simplified electrical connection; every outlet now just plugs in 15 amp solutions feature 14 AWG cord approved for residential and commercial installations, most other devices do not use this approved power cord Keep your devices plugged in, ready to use and neatly stowed Docking Drawer Project Packs available - For larger projects such as hotels, lockers, commercial installations, etc., Minimum order quantity is 100 pcs., Bulk packed and shipped to a single location Cabinet Specifications: Fits cabinet depths ≤610 mm (24") with a minimum drawer box width (OD) ≥380 mm (15") Minimum space behind drawer box: 51 mm (2") Minimum interior drawer box height: 76 mm (3")
Electrical Specifications 1.37 m (4 1/2') NEMA 5-15P power cord plugs into a NEMA 5-15R receptacle 15 amp outlets with 14 AWG cord approved for residential and commercial Installations Max rated current: 15 amps @ 120 VAC USB-C (Power Delivery): 3 amps @ 9 VDC" (30W) USB-A: 3.6 amps @ 5VDC or 4.2 amps @ 5VDC Interlock Thermostat de-energizes outlet when the surrounding temperature exceeds 120°F Optional Safety Interlock Box adds a limit switch that senses the drawer position and de-energizes the outlet when the drawer starts to close (Note: Safety Interlock Box is optional in the United States. Required in Canada to satisfy the requirements of the Canadian Electrical Code (CEC).
Benefits of Docking Drawer series with USB-C with Power Delivery USB-C is the new USB standard that is maturing in the market Faster - USB-C (PD) can charge your device up to 70% faster than standard 12W charging found in USB-A ports. Therefore, your devices will need less time to reach a full charge. A quick 10-minute charge with USB-C (PD) might be all you need to get going. More Powerful - With up to 2X more power than typical USB ports, Docking Drawer with USB-C (PD) have up to 30W of power available and can charge larger devices like tablets and laptops with just a USB-C cable. Safer - Docking Drawer series with USB-C (PD) contain a smart chip which makes charging safer with 3 key features: 1) Recognizes and optimizes the charging requirements for each individual device and is especially designed to handle new higher levels of power. 2) Built-in overcurrent protection safely keeps devices from receiving too much power. 3) Features an internal thermoregulator to prevent electronics from overheating, which is not available for USB-A.
