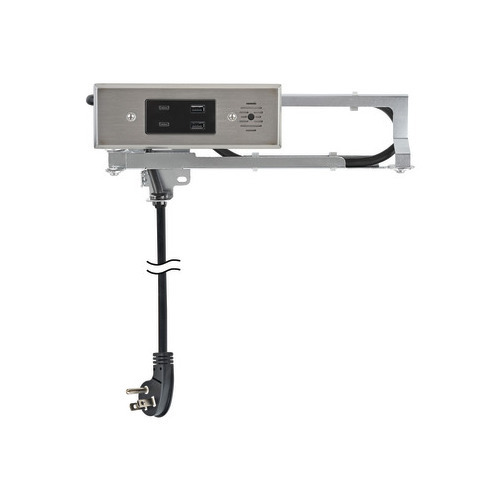

Hafele 822.53.371 Docking Drawer Blade with Dual 15A AC Outlets

Hafele 822.53.371 Docking Drawer, Blade with 2 x 15A AC outlets offers a seamless solution for charging and powering devices in your cabinetry. Designed with versatility in mind, this Docking Drawer features a simplified electrical connection, allowing all outlets to plug in easily for hassle-free installation. With a robust 15 amp rating and a 14 AWG power cord, it's both residential and commercial approved, ensuring reliable performance in various settings. This model includes two 15A AC outlets as well as USB-C and USB-A ports, catering to a wide range of devices. The USB-C port supports Power Delivery, charging devices up to 70% faster than traditional USB-A ports, making it ideal for larger gadgets like tablets and laptops. Safety is paramount, with an interlock thermostat that de-energizes the outlet if temperatures exceed 120°F, and an optional Safety Interlock Box that enhances protection when the drawer is closing. Installation is versatile-this dock fits cabinet depths up to 610 mm (24") and can be mounted horizontally or vertically. With its sleek black finish and durable metal construction, the Hafele Docking Drawer not only enhances functionality but also complements modern cabinetry aesthetics.

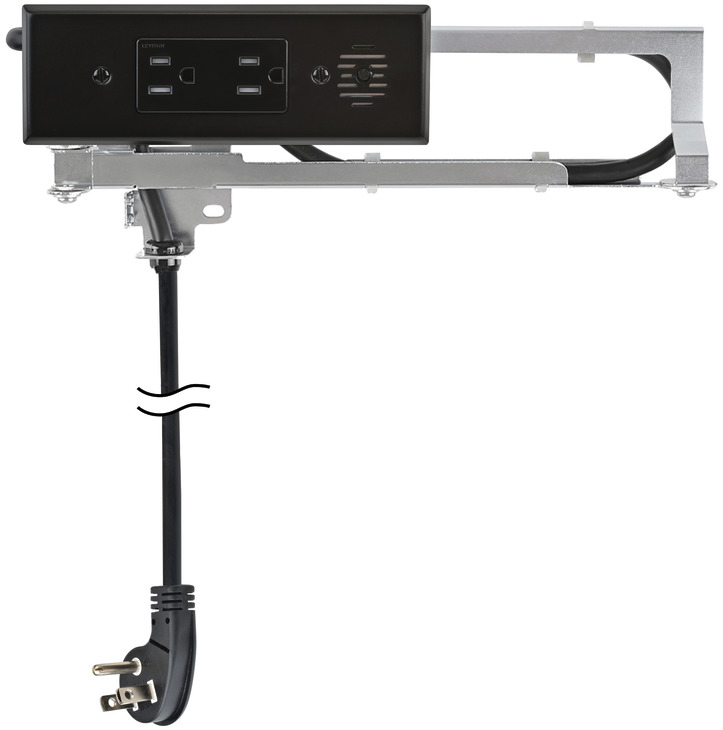

Docking Drawer - In Drawer Outlet, Blade with 2 x 15A AC outlets

15 Amp Series, Model #1514-160B, black

Docking Drawer Blade Duo and Blade feature one size for all outlets for easy specification and installation All outlets can charge & power all of your devices Simplified electrical connection; every outlet now just plugs in 15 amp solutions feature 14 AWG cord approved for residential and commercial installations, most other devices do not use this approved power cord Keep your devices plugged in, ready to use and neatly stowed Docking Drawer Project Packs available - For larger projects such as hotels, lockers, commercial installations, etc., Minimum order quantity is 100 pcs., Bulk packed and shipped to a single location Cabinet Specifications: Fits cabinet depths ≤610 mm (24") with a minimum drawer box width (OD) ≥380 mm (15") Minimum space behind drawer box: 51 mm (2") Minimum interior drawer box height: 76 mm (3")
Electrical Specifications 1.37 m (4 1/2') NEMA 5-15P power cord plugs into a NEMA 5-15R receptacle 15 amp outlets with 14 AWG cord approved for residential and commercial Installations Max rated current: 15 amps @ 120 VAC USB-C (Power Delivery): 3 amps @ 9 VDC" (30W) USB-A: 3.6 amps @ 5VDC or 4.2 amps @ 5VDC Interlock Thermostat de-energizes outlet when the surrounding temperature exceeds 120°F Optional Safety Interlock Box adds a limit switch that senses the drawer position and de-energizes the outlet when the drawer starts to close (Note: Safety Interlock Box is optional in the United States. Required in Canada to satisfy the requirements of the Canadian Electrical Code (CEC).
Benefits of Docking Drawer series with USB-C with Power Delivery USB-C is the new USB standard that is maturing in the market Faster - USB-C (PD) can charge your device up to 70% faster than standard 12W charging found in USB-A ports. Therefore, your devices will need less time to reach a full charge. A quick 10-minute charge with USB-C (PD) might be all you need to get going. More Powerful - With up to 2X more power than typical USB ports, Docking Drawer with USB-C (PD) have up to 30W of power available and can charge larger devices like tablets and laptops with just a USB-C cable. Safer - Docking Drawer series with USB-C (PD) contain a smart chip which makes charging safer with 3 key features: 1) Recognizes and optimizes the charging requirements for each individual device and is especially designed to handle new higher levels of power. 2) Built-in overcurrent protection safely keeps devices from receiving too much power. 3) Features an internal thermoregulator to prevent electronics from overheating, which is not available for USB-A.

Resources

• Docking Drawer Blade Series Instructions
• Docking Drawer Blade and Blade Duo In-Drawer Outlets
• Docking Drawer Cross Reference Guide
• Docking Drawer Spec Book
• Installation instructions
• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 5.7
• Technical data sheet
• Technical data sheet
• Unboxing the Docking Drawer Blade Duo Outlet
