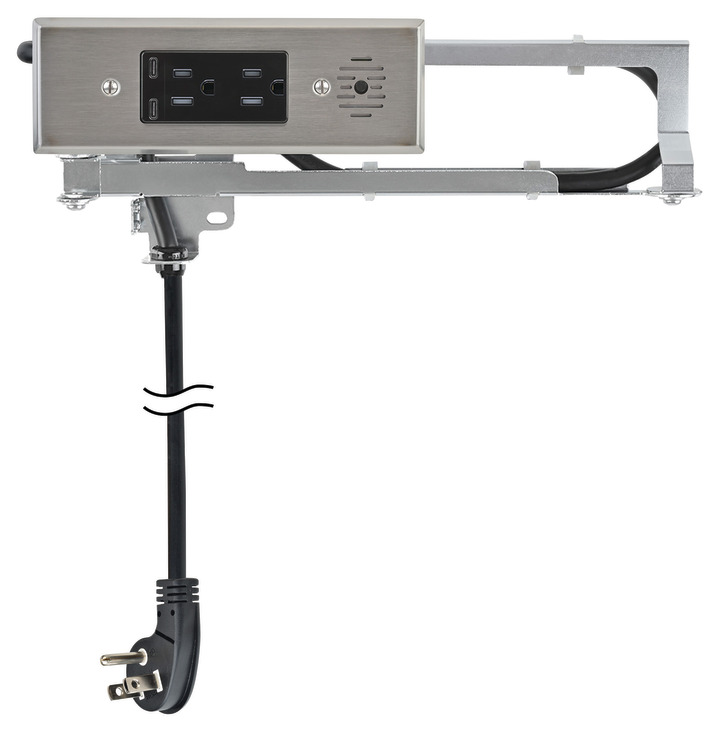

Hafele 822.53.441 Docking Drawer Blade 2 USB-C (PD) 65W 2 AC Outlets

Hafele 822.53.441 Docking Drawer Blade 2 USB-C (PD) 65W 2 AC Outlets

Hafele 822.53.441 Docking Drawer Blade with 2 x USB-C (PD) 65W and 2 x 15A AC outlets offers a seamless solution for charging and powering devices right within your cabinets. Designed for versatility, this stainless steel model fits into various drawer sizes, making it ideal for both shallow and tall drawers, as well as narrow and vertical spaces. With a robust 20 amp capacity, it features an interlock thermostat that automatically de-energizes outlets when temperatures exceed 120°F, ensuring safe operation. Equipped with two USB-C ports for fast charging at 65W, along with two standard 15A AC outlets, the Docking Drawer Blade allows for simultaneous connection of up to four devices. The heavy-duty 12 AWG power cord with a NEMA 5-20P plug ensures reliable power delivery, plugging into a compatible wall receptacle. This innovative in-drawer outlet is ETL listed to UL962a standards, affirming its safety and functionality. Whether for a kitchen, office, or workshop, the Hafele Docking Drawer Blade enhances organization and convenience while keeping devices neatly stowed and ready for use. Transform your space with this essential addition to your cabinetry.

Docking Drawer - In Drawer Outlet Blade with 2 x USB-C (PD) 65W and 2 x 15A AC outlets

stainless steel, model 1514-170S

The Docking Drawer Blade and Blade Duo in-drawer outlets are rated for any charging or powering applications and are designed to fit into almost every cabinet. The 20 amp Docking Drawer Blade Duo and Blade are an all-in-one series which can charge AND power any type of device in even more compact spaces. All Docking Drawer Blade and Blade Duo feature an Interlock Thermostat that de-energizes the outlet if the surrounding temperature exceeds 120° F. Keep your devices plugged in, ready to use and neatly stowed away ETL Listed to UL962a
Electrical Specifications > 3' NEMA 5-20P power cord plugs into a NEMA 5-20R receptacle > Max. current: AC: 16 amps @ 120 VAC USB-A: 3.6 amps @ 5VDC Safety Features Interlock Thermostat - De-energizes outlet when the surrounding temperature exceeds 120°F Requires a 20 amp wall receptacle with T-shaped prongs for the NEMA 5-20P Features 3' long heavy-duty 12 AWG power cord with NEMA 5-20P plug and 20 amp receptacle
Cabinet Specifications > Fits shallow drawers: Minimum drawer box width (OD): 380 mm (15") Minimum interior drawer box height: 76 mm (3") > Fits tall drawers: Minimum drawer box width (OD): 330 mm (13") Minimum interior drawer box height: 101 mm (4") > Fits narrow drawers: Minimum drawer box width (OD): 228 mm (9") Minimum interior drawer box height: 101 mm (4") > Fits vertical drawers: Minimum drawer box width (OD): 203 mm (8") Minimum interior drawer box height: 330 mm (13")

Resources

• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 5.8
