Hafele 822.53.485 Docking Drawer Blade Duo 4 USB-C, 2 USB-A 2 AC Outlets, 30W

Hafele 822.53.485 Docking Drawer Blade Duo 4 USB-C, 2 USB-A 2 AC Outlets, 30W

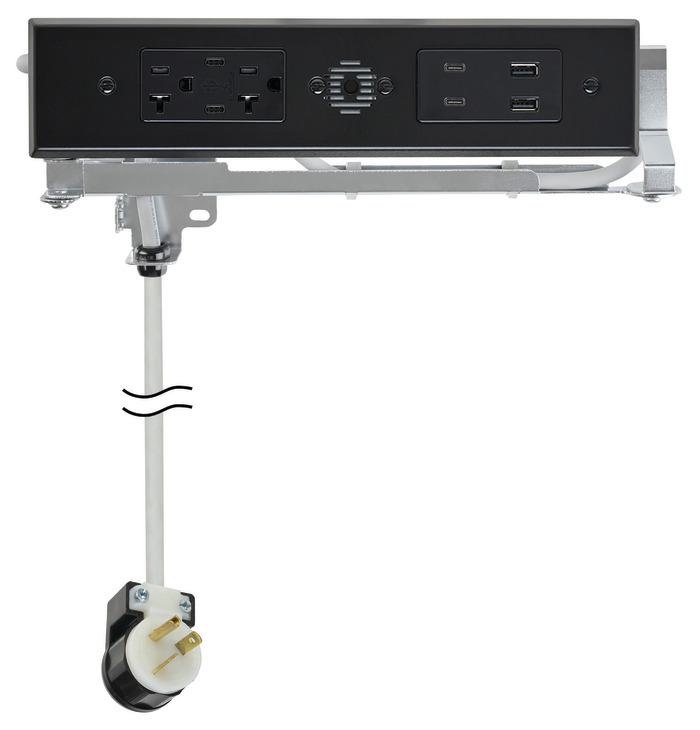

Hafele 822.53.485 Docking Drawer Blade Duo provides an efficient and stylish solution for charging and powering devices within your cabinetry. Designed in a sleek black finish, this versatile unit includes four USB-C ports (PD) with 30W fast-charging capabilities, two USB-A ports, and two 20A AC outlets, allowing you to connect and charge up to eight devices simultaneously. The Docking Drawer Blade Duo is perfect for both shallow and tall drawers, fitting in spaces with a minimum drawer box width of 203 mm (8") and an interior height of 76 mm (3"). Its compact design ensures it can be installed in various orientations-horizontally, vertically, left, or right-making it compatible with side mounts, undermounts, and soft-closing slides. Safety is paramount, which is why the unit features an Interlock Thermostat that de-energizes the outlets if the surrounding temperature exceeds 120°F, ensuring your devices remain safe while charging. With a robust 3' NEMA 5-20P power cord and ETL listed to UL962a standards, you can trust the Hafele Docking Drawer Blade Duo to deliver reliable performance in any setting. Upgrade your space with this innovative in-drawer outlet system for convenience and style.

Docking Drawer - In Drawer Outlet, Blade Duo with 4 USB-C (PD) 30W, 2 x USB-A ports and 2 x 20A AC Outlets

black, model 2012-283B

The Docking Drawer Blade and Blade Duo in-drawer outlets are rated for any charging or powering applications and are designed to fit into almost every cabinet. The 20 amp Docking Drawer Blade Duo and Blade are an all-in-one series which can charge AND power any type of device in even more compact spaces. All Docking Drawer Blade and Blade Duo feature an Interlock Thermostat that de-energizes the outlet if the surrounding temperature exceeds 120° F. Keep your devices plugged in, ready to use and neatly stowed away ETL Listed to UL962a
Electrical Specifications > 3' NEMA 5-20P power cord plugs into a NEMA 5-20R receptacle > Max. current: AC: 16 amps @ 120 VAC USB-A: 3.6 amps @ 5VDC Safety Features Interlock Thermostat - De-energizes outlet when the surrounding temperature exceeds 120°F Requires a 20 amp wall receptacle with T-shaped prongs for the NEMA 5-20P Features 3' long heavy-duty 12 AWG power cord with NEMA 5-20P plug and 20 amp receptacle
Cabinet Specifications > Fits shallow drawers: Minimum drawer box width (OD): 380 mm (15") Minimum interior drawer box height: 76 mm (3") > Fits tall drawers: Minimum drawer box width (OD): 330 mm (13") Minimum interior drawer box height: 101 mm (4") > Fits narrow drawers: Minimum drawer box width (OD): 228 mm (9") Minimum interior drawer box height: 101 mm (4") > Fits vertical drawers: Minimum drawer box width (OD): 203 mm (8") Minimum interior drawer box height: 330 mm (13")

Resources

• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 5.7B
