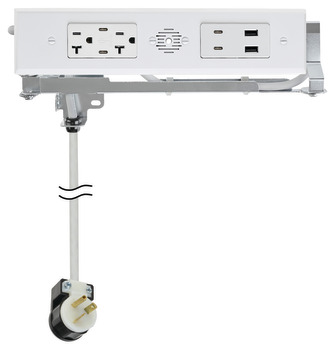

Hafele 822.53.486 Docking Drawer Blade Duo 4 USB-C, 2 USB-A, 2 AC Outlets, 30W

Hafele 822.53.486 Docking Drawer Blade Duo with 4 USB-C (PD) 30W, 2 x USB-A Ports, and 2 x 20A AC Outlets seamlessly integrates power and charging capabilities into your cabinetry. This innovative in-drawer outlet solution is designed for versatility, fitting into shallow, tall, narrow, and vertical drawers with minimum widths ranging from 203 mm to 380 mm. With a robust 20 amp rating, the Docking Drawer Blade Duo accommodates a variety of devices, ensuring they are charged and powered efficiently. It features four USB-C ports capable of delivering 30W for fast charging, alongside two USB-A ports and two 20A AC outlets, allowing you to connect up to eight devices simultaneously. Safety is paramount, with an Interlock Thermostat that de-energizes the outlet if the surrounding temperature exceeds 120°F. Installation is straightforward, allowing for horizontal or vertical mounting, making it compatible with any side mount, undermount, or soft-closing slides. Crafted from durable metal, plastic, and electrical components, this unit is ETL Listed to UL962a, ensuring reliability and safety in your workspace. Elevate your cabinetry with the Hafele Docking Drawer Blade Duo, where functionality meets elegance.

Docking Drawer - In Drawer Outlet, Blade Duo with 4 USB-C (PD) 30W, 2 x USB-A ports and 2 x 20A AC Outlets

white, model 2012-238W

The Docking Drawer Blade and Blade Duo in-drawer outlets are rated for any charging or powering applications and are designed to fit into almost every cabinet. The 20 amp Docking Drawer Blade Duo and Blade are an all-in-one series which can charge AND power any type of device in even more compact spaces. All Docking Drawer Blade and Blade Duo feature an Interlock Thermostat that de-energizes the outlet if the surrounding temperature exceeds 120° F. Keep your devices plugged in, ready to use and neatly stowed away ETL Listed to UL962a
Electrical Specifications > 3' NEMA 5-20P power cord plugs into a NEMA 5-20R receptacle > Max. current: AC: 16 amps @ 120 VAC USB-A: 3.6 amps @ 5VDC Safety Features Interlock Thermostat - De-energizes outlet when the surrounding temperature exceeds 120°F Requires a 20 amp wall receptacle with T-shaped prongs for the NEMA 5-20P Features 3' long heavy-duty 12 AWG power cord with NEMA 5-20P plug and 20 amp receptacle
Cabinet Specifications > Fits shallow drawers: Minimum drawer box width (OD): 380 mm (15") Minimum interior drawer box height: 76 mm (3") > Fits tall drawers: Minimum drawer box width (OD): 330 mm (13") Minimum interior drawer box height: 101 mm (4") > Fits narrow drawers: Minimum drawer box width (OD): 228 mm (9") Minimum interior drawer box height: 101 mm (4") > Fits vertical drawers: Minimum drawer box width (OD): 203 mm (8") Minimum interior drawer box height: 330 mm (13")

Resources

• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 5.7B
