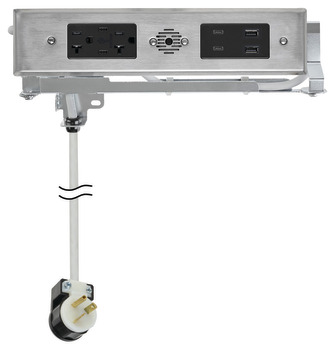

Hafele 822.53.487 Docking Drawer Blade Duo 4 USB-C, 2 USB-A, 2 AC Outlets, 30W

Hafele 822.53.487 Docking Drawer Blade Duo 4 USB-C, 2 USB-A, 2 AC Outlets, 30W

Hafele 822.53.487 Docking Drawer Blade Duo combines functionality and convenience with its comprehensive in-drawer outlet solution. Designed for both charging and powering applications, this versatile unit features four USB-C (PD) 30W ports, two USB-A ports, and two 20A AC outlets, allowing you to effortlessly connect and power multiple devices. With a sleek stainless steel finish, it fits seamlessly into various cabinet configurations, making it an ideal choice for modern interiors. The Docking Drawer Blade Duo is engineered for optimal safety, featuring an Interlock Thermostat that automatically de-energizes the outlet if the surrounding temperature exceeds 120°F, ensuring your devices are protected. It requires a 20 amp wall receptacle with T-shaped prongs and comes with a heavy-duty 3' NEMA 5-20P power cord for reliable connectivity. Installation is flexible, accommodating horizontal or vertical mounting in shallow, tall, narrow, or vertical drawers, with minimum height requirements tailored to fit various drawer depths. This unit not only keeps your devices organized but also enables fast-charging capabilities, allowing you to connect up to eight devices simultaneously. Elevate your workspace or living area with Hafele's Docking Drawer Blade Duo, the perfect blend of technology and design.

Docking Drawer - In Drawer Outlet, Blade Duo with 4 USB-C (PD) 30W, 2 x USB-A ports and 2 x 20A AC Outlets

stainless steel, model 2012-238S

The Docking Drawer Blade and Blade Duo in-drawer outlets are rated for any charging or powering applications and are designed to fit into almost every cabinet. The 20 amp Docking Drawer Blade Duo and Blade are an all-in-one series which can charge AND power any type of device in even more compact spaces. All Docking Drawer Blade and Blade Duo feature an Interlock Thermostat that de-energizes the outlet if the surrounding temperature exceeds 120° F. Keep your devices plugged in, ready to use and neatly stowed away ETL Listed to UL962a
Electrical Specifications > 3' NEMA 5-20P power cord plugs into a NEMA 5-20R receptacle > Max. current: AC: 16 amps @ 120 VAC USB-A: 3.6 amps @ 5VDC Safety Features Interlock Thermostat - De-energizes outlet when the surrounding temperature exceeds 120°F Requires a 20 amp wall receptacle with T-shaped prongs for the NEMA 5-20P Features 3' long heavy-duty 12 AWG power cord with NEMA 5-20P plug and 20 amp receptacle
Cabinet Specifications > Fits shallow drawers: Minimum drawer box width (OD): 380 mm (15") Minimum interior drawer box height: 76 mm (3") > Fits tall drawers: Minimum drawer box width (OD): 330 mm (13") Minimum interior drawer box height: 101 mm (4") > Fits narrow drawers: Minimum drawer box width (OD): 228 mm (9") Minimum interior drawer box height: 101 mm (4") > Fits vertical drawers: Minimum drawer box width (OD): 203 mm (8") Minimum interior drawer box height: 330 mm (13")

Resources

• TCH_Furniture_Cabinetry_Hardware_ 2022 | Page 5.7B
