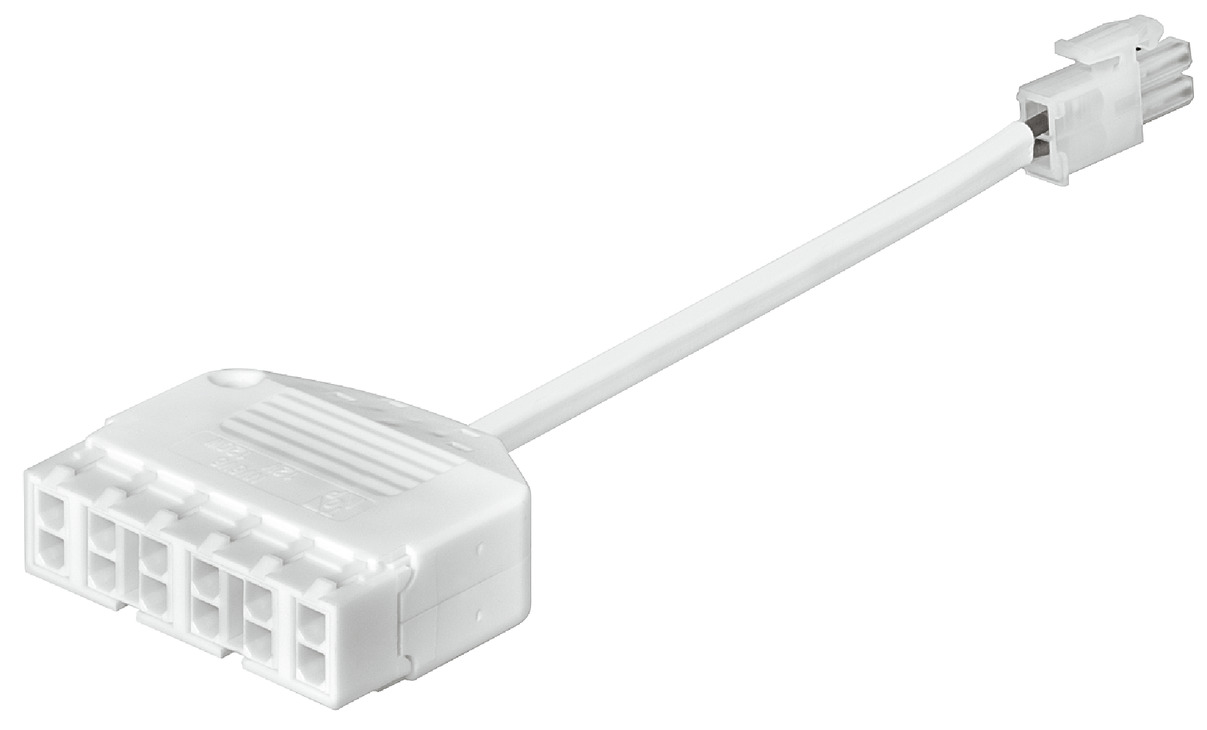

Hafele 823.28.780 Distribution Block for EFL Furniture Lock with AMP Plug is designed to streamline your locking system by allowing up to six locks to connect to a single output. With a compact length of 155 mm, this distribution block features one male plug wired to six female caps, facilitating flexible installation. For those needing additional locks, a second block can easily plug into one of the caps of the first block, providing the capability to add an extra five locks. This modular approach can be repeated, ensuring the installation remains efficient, provided the current ratings, power supply, and control device are within limits. This multi-lock adapter is specifically tailored for keyed alike operation, making it ideal for coordinating multiple EFL furniture locks with AMP plugs. Its white plastic design ensures a clean and professional look, suitable for various indoor applications. It's crucial to ensure adequate voltage supply for optimal operation. Additionally, for current consumption exceeding 750 mA at the FT 120 furniture terminal, the ACC relay unit (Cat. No. 237.56.132) must be ordered separately. Enhance your security setup with the reliability and efficiency of the Hafele 823.28.780 Distribution Block, perfect for modern commercial and residential environments.
Distribution Block for EFL Furniture Lock with AMP Plug
length 155 mm
Multi-lock adapter only in keyed alike operation: for 6 EFL furniture locks with AMP plug Notes concerning operation Ensure that a sufficient voltage supply is provided.
Area of application: Electric distributor for indoor use: For keyed alike EFL furniture locks with AMP plug
Color/finish: White
Functioning principle: The CC 140 multi-lock adapter is the link between the FT 120/MLA8 furniture terminal and EFL furniture locks with AMP plug, if more than one furniture lock must be actuated. Or for distributing voltages of up to 12 V/6 A. The incoming data signals of the FT 120/MLA8 furniture terminal will be passed on to the EFL furniture locks for unlocking/locking
Material: Plastic
Model: CC 140
Order reference: ACC relay unit is required for a current consumption of more than 750 mA at the FT 120 furniture terminal or for controlling devices that require potential free contact. Please order ACC relay unit (Cat. No. 237.56.132) separately.
Product Category: Distribution Block
Product type: Distribution Block
Suitable for Dialock device: for EFL furniture lock with AMP plug
Version: With 1 AMP plug with 6 AMP sockets
