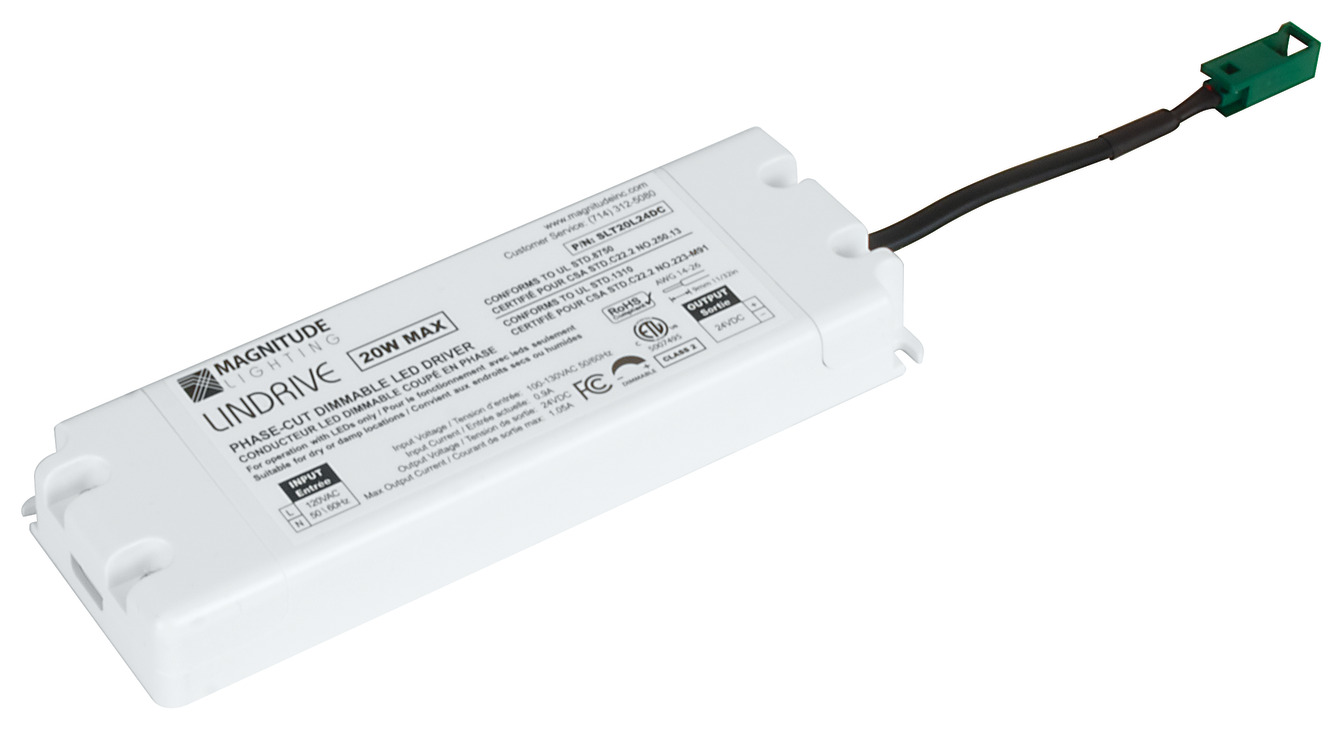

Hafele 833.05.605 Dimmable Driver, 24V without Socket is a versatile electronic Class 2, phase dimmable LED driver designed for small to medium-sized LED lighting applications. With a compact low-profile hard plastic case measuring 155 x 53.4 x 20 mm (6 3/32" x 2 3/32" x 25/32"), this driver seamlessly integrates into your design while providing reliable performance. The ETL Listed enclosure features covered side feed terminal blocks, simplifying wiring and installation, and eliminating the need for a separate junction box. The driver supports a range of outputs, delivering 20 watts at 2.1 amps, and is compatible with most phase-cut leading edge dimming systems as well as Häfele's Pulse-width-modulation (PWM) and Connect Mesh dimming systems. Safety is a top priority; the LinDrive is equipped with auto-reset protection against short circuits and over-voltage. With an input voltage of 100-130 VAC at 50/60 Hz and an IP Rating of IP21, it ensures durability in various environments. Please note that hardwiring should be performed only by a licensed electrician. Elevate your lighting solutions with the Hafele 833.05.605 Dimmable Driver, the perfect blend of efficiency and ease of use.
Dimmable Driver, LinDrive Series, 24 V with Hafele Lighting Female Socket
20W, 2.1A, L x W x H: 155 x 53.4 x 20 mm (6 3/32" x 2 3/32" x 25/32")
Hardwired by licensed electrician only.

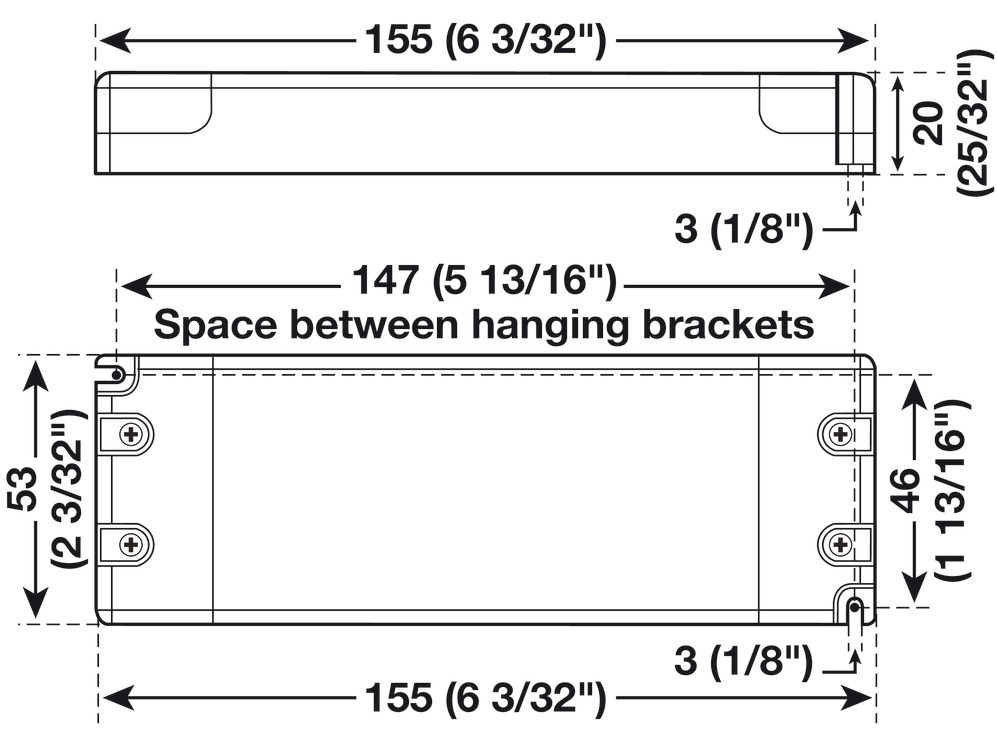

Dim. ( L x W x H): 155 x 53.4 x 20 mm
Height (inch): 25/32"
Length (inch): 6 3/32"
Mains voltage: 24 V
Material: Plastic
Output current: 2.10 A
Output power: 20 W
Output voltage: 24 V
Version: Without socket
Width (inch): 2 3/32"
