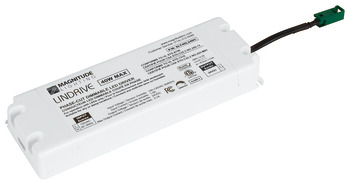

Hafele 833.05.607 Dimmable Driver is a powerful and versatile solution for your LED lighting needs. Part of the Lindrive Series, this electronic Class 2, phase dimmable LED driver delivers a robust output of 40W and 4.16A, all within a compact low-profile design measuring 177.8 x 61 x 25.4 mm (7" x 2 13/32" x 1"). The driver’s ETL Listed enclosure features covered, side feed terminal blocks, ensuring straightforward wiring and installation without the need for a separate junction box. Compatible with a variety of phase-cut leading edge dimming systems, the LinDrive also works seamlessly with Häfele's Pulse-width-modulation (PWM) and Connect Mesh dimming systems. It is crucial to note that hardwired (phase-cut) dimmers and Häfele PWM or Connect Mesh dimming systems cannot be used together. The input voltage ranges from 100-130 VAC at 50/60 Hz, and it includes auto-reset protection for short circuits and over-voltage, ensuring safety and reliability. With a minimum load requirement of 3W and an IP Rating of IP21, this driver is suitable for small to medium-sized LED lighting applications. For installation, a licensed electrician is required to ensure compliance and safety.
Dimmable Driver, 24V without Socket

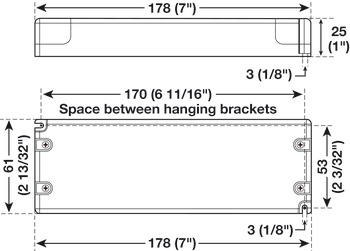

Lindrive Series, 40W, 4.16A, L x W x H: 177.8 x 61 x 25.4 mm (7" x 2 13/32" x 1")
Hardwired by licensed electrician only.
Ship via: Can Ship UPS
Dim. ( L x W x H): 177.8 x 61 x 25.4 mm
Height (inch): 1"
Length (inch): 7"
Mains voltage: 24 V
Material: Plastic
Output power: 40 W
Version: Without socket
Width (inch): 2 13/32"
