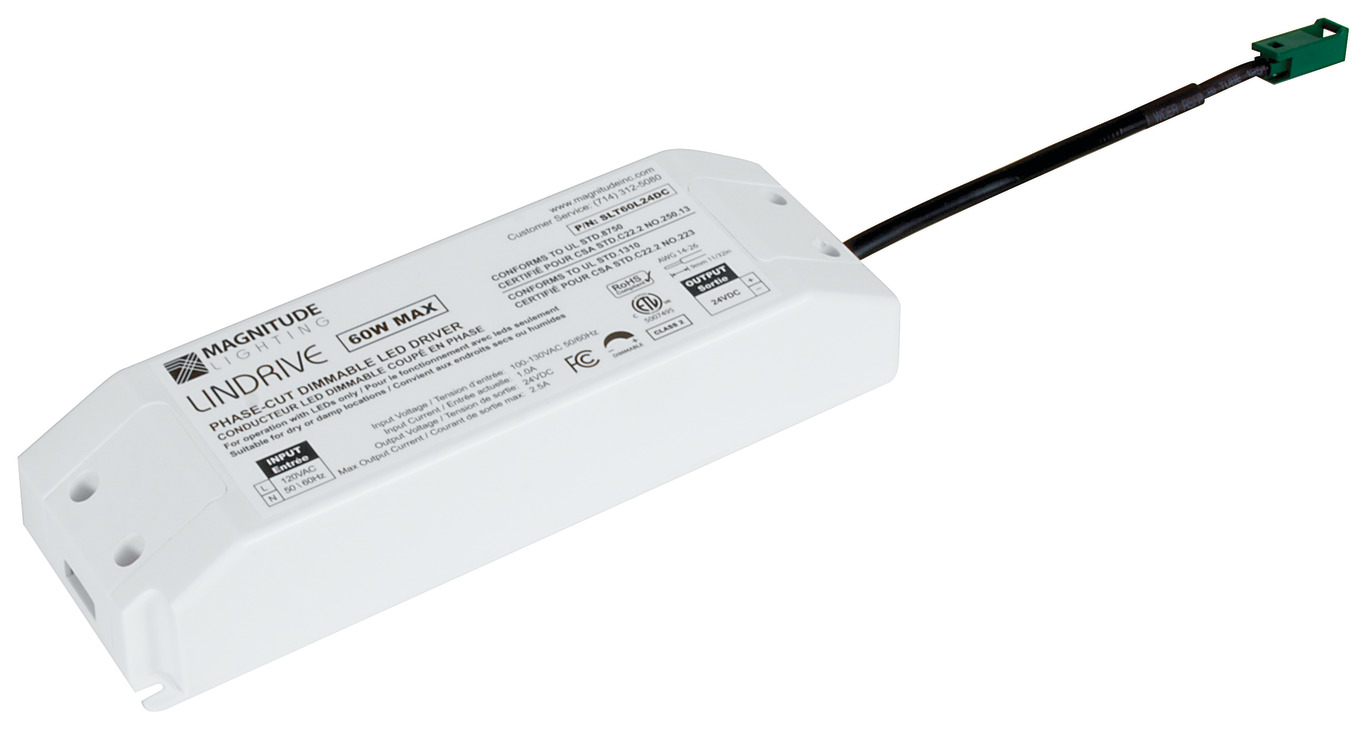

Hafele 833.05.609 Dimmable Driver, 24V without Socket is a versatile solution designed for small to medium-sized LED lighting applications. With an output power of 60W and a current rating of 5A, this electronic Class 2 phase dimmable LED driver features a compact low-profile hard plastic case, measuring 190 x 60 x 35 mm (7 15/32" x 2 11/32" x 1 3/8"). The ETL Listed enclosure simplifies installation with covered, side feed terminal blocks that eliminate the need for a separate junction box. This driver is compatible with various dimming systems, including phase-cut leading edge dimmers and Häfele's Pulse-width-modulation (PWM) and Connect Mesh systems, although it’s important to note that hardwired phase-cut dimmers cannot be used simultaneously with PWM or Connect Mesh systems. Designed for safety and longevity, the LinDrive includes auto-reset protection for short circuits and over-voltage, ensuring reliable operation. With an input voltage range of 100-130 VAC at 50/60 Hz, it’s built to meet UL8750 and 1310 standards. For optimal performance, this dimmable driver must be hardwired by a licensed electrician. Experience the convenience and efficiency of the Hafele 833.05.609 for your lighting needs.

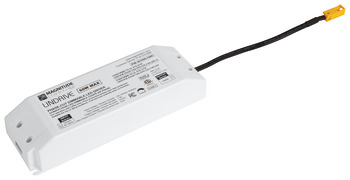

Dimmable Driver, LinDrive Series, 24 V with Hafele Lighting Female Socket

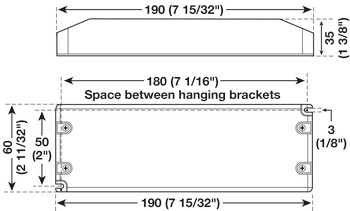

60W, 5A, L x W x H: 190 x 60 x 35 mm (7 15/32" x 2 11/32" x 1 3/8")
Hardwired by licensed electrician only.
Dim. ( L x W x H): 190 x 60 x 35 mm
Height (inch): 1 3/8"
Length (inch): 7 15/32"
Mains voltage: 24 V
Material: Plastic
Output current: 5.00 A
Output power: 60 W
Output voltage: 24 V
Version: Without socket
Width (inch): 2 11/32"
