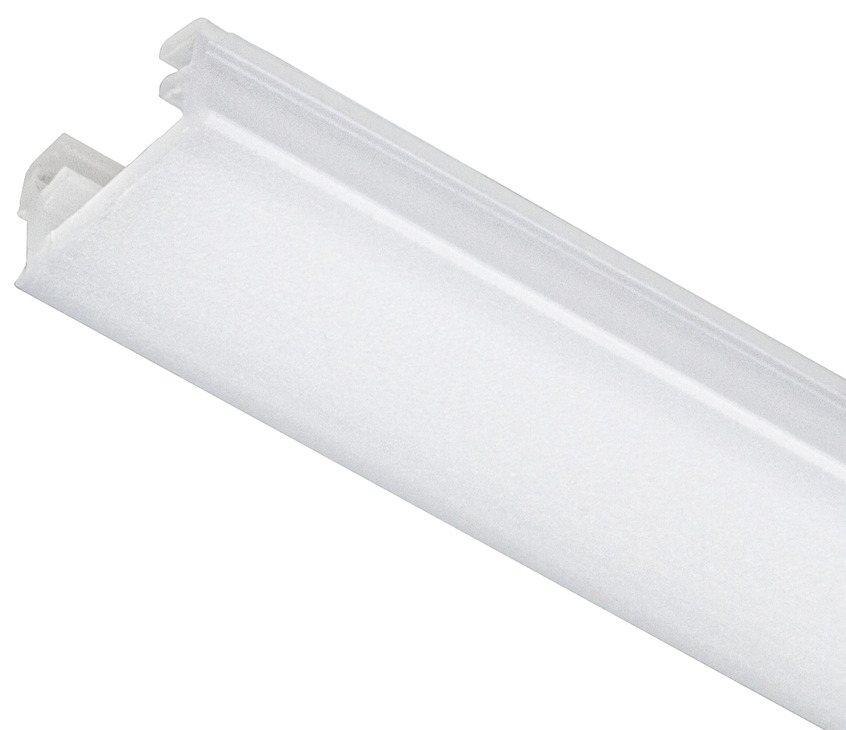

Hafele 833.72.919 Hafele Lighting Recess Mount Profile 1109

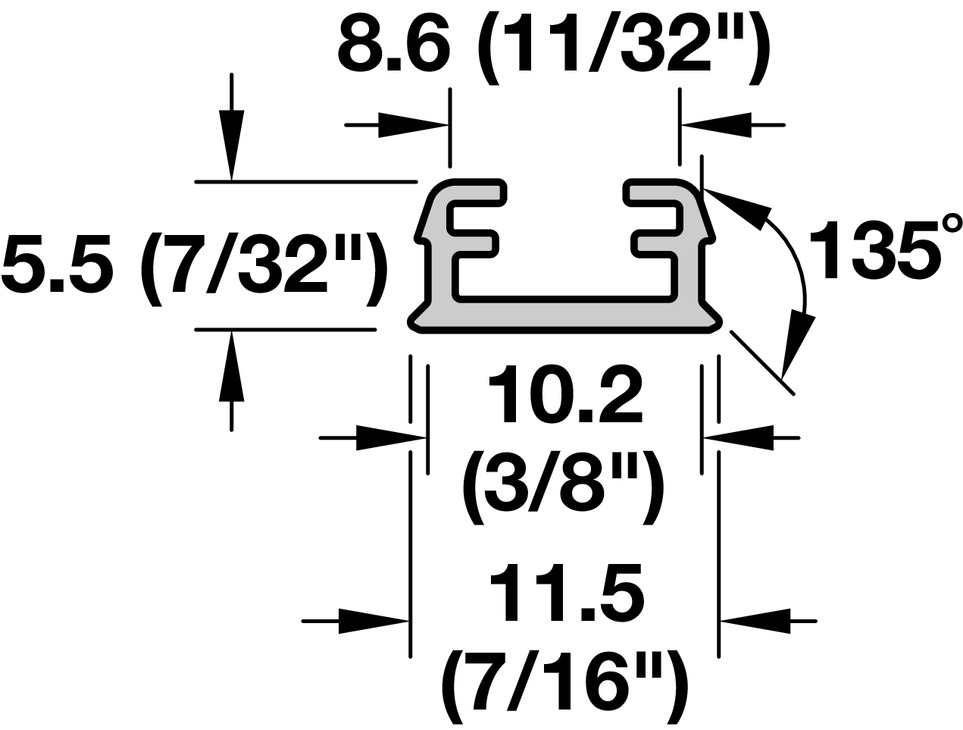

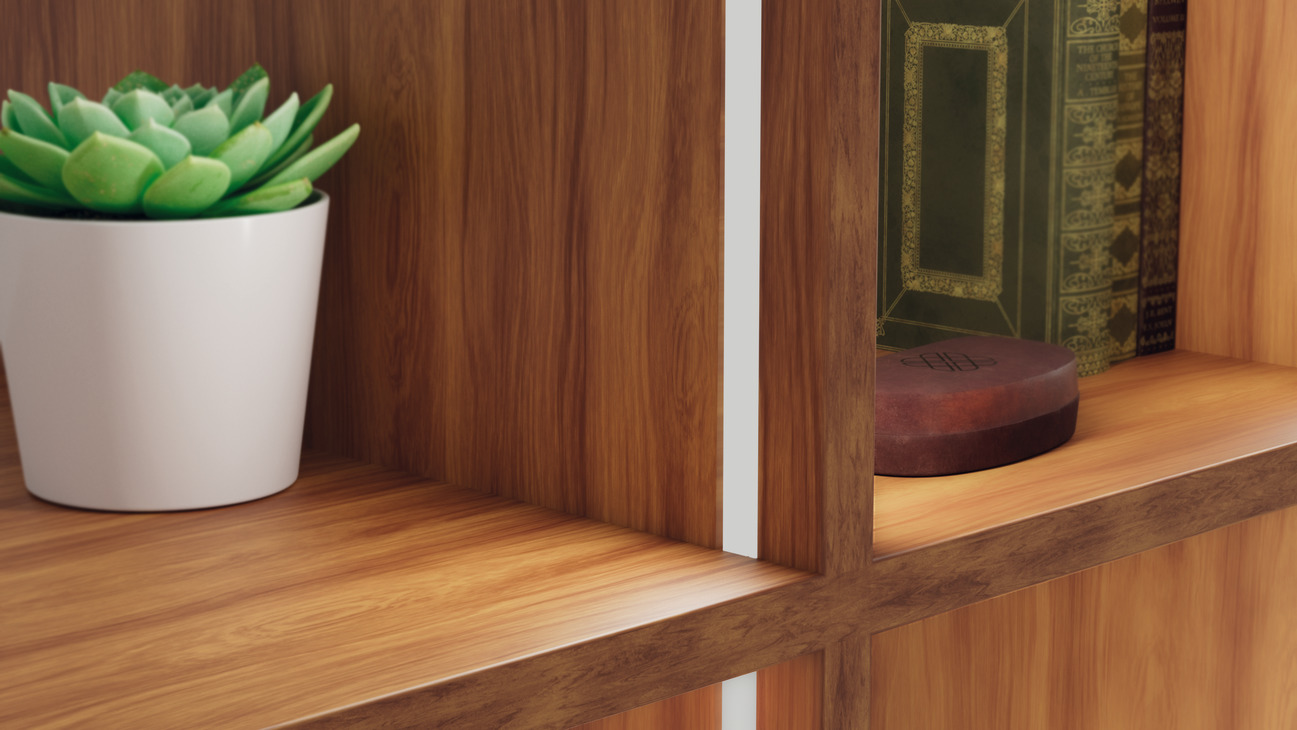

Hafele 833.72.919 Profile for Recess Mounting offers a sleek and effective solution for integrating lighting into your projects. With a low installation depth of just 6 mm, this profile is designed for groove mounting on both sides of a center panel, making it an ideal choice for COB strip lights. It accommodates LED strip lights with a maximum output of 9.6 W/m and a precise width of 8 mm, ensuring a seamless fit and optimal performance. The integrated milky diffuser enhances light diffusion while maintaining a light permeability of 60-70%, providing a soft, ambient glow without visible LED points. The profile is made from durable polycarbonate, ensuring long-lasting use in various applications. Measuring 3,000 mm in length, it is perfect for larger installations, while the routing depth of 6 mm and width of 11.30 mm facilitate easy setup. Supplied with one plastic profile, the Hafele 833.72.919 allows for straightforward installation, whether you opt to position clips outside or utilize soldered leads. Its clean opal white finish adds a modern touch, making it a versatile addition to both residential and commercial spaces. Enhance your lighting design with this efficient and stylish profile from Hafele.

Profile for Recess Mounting, Hafele Lighting, profile 1109

opal white, 3,000 mm

For LED strip lights with max. 9.6 W/m. For LED strip lights with a width of precisely 8 mm. Please position clips outside or use soldered leads. Diffuser (integrated) The low installation height is ideal for COB strip lights, since they do not depend on the installation height for illumination without visible LED points. Identical profile for standard LED strip lights is profile 1101 with 11 mm routing depth.

Resources

• CAD data
