Hafele 833.73.822 Hafele Loox 5 Qi2 Inductive Charging Station, 24V, Concealed InstallationHafele 833.73.822 Inductive Charging Station Qi2 combines sleek design with advanced functionality, making it an ideal choice for modern spaces. Designed for both installation and concealed mounting, this 24 V charging station offers a quick charging capacity of 15 W, ensuring your devices are powered up efficiently. The removable cover is available in black or white, seamlessly blending with your furniture while maintaining an aesthetic appeal. Equipped with WPC Qi2 technology, this charging station features integrated magnets for optimal positioning, allowing for vertical charging and enhancing the user experience. It’s crucial to note that for efficient operation, the station should not be installed within metallic materials or coatings, with a maximum material penetration of 3 mm, including mobile phone protective cases. The charging station comes with a 2,000 mm cable length and is suitable for various applications, including boat building, offices, and conference tables. With a degree of protection rated at IP20, it operates efficiently in ambient temperatures ranging from -10 to 40 °C. The unit also includes comprehensive safety features such as overvoltage, undervoltage, and overcurrent protection, ensuring a reliable charging experience. Supplied with two covers and necessary installation materials, the Hafele 833.73.822 is a versatile solution for today’s tech-savvy environments.
Inductive charging station Qi2, Hafele Loox 5 for installation or concealed installation, 24 V

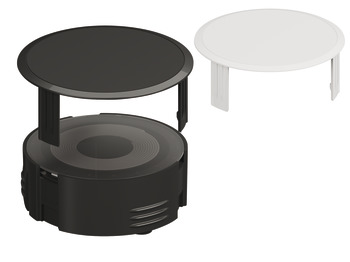

Replaceable cover, black or white, 15 W

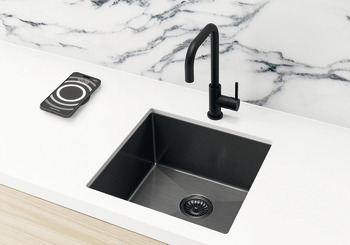

> Aesthetic solution: concealed installation possible > WPC Qi2 standard: Quick charging function and integrated magnets for optimum positioning for efficient charging and vertical charging
Power supply unit wattage min. 20 W per charging station. When an optional 6-way distributor with switching function or Häfele Connect Mesh is used, always connect this charging station to the 7th output port (continuous current) of the 6-way distributor. Do not use 6-way distributors with 3 switching inputs. Warning During the charging process, magnetic fields are created that can affect pace makers or other implanted devices. Please contact the manufacturer of the prissive prior to commissioning / use.
- In order to ensure the charging function, do not use in metallic materials or materials with metal coating. Material penetration max. 3 mm, which also applies to mobile phone protective cases.
Attributes
Ambient temperature: -10–40 °C
Area of application: Boat building, Office, Caravan, Utility rooms, Conference tables, Kitchen, Furniture, Bedroom
Cable length: 2,000.00 mm
Degree of protection: IP20

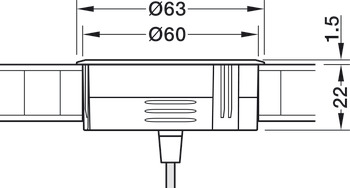

Dim. (Ø x H): 58 x 23 mm
Drill hole Ø: 60.00 mm
Equipped with: Removable cover

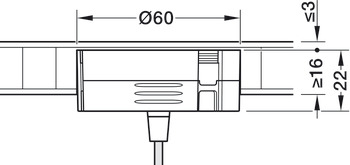

For panel thickness: ≥16 mm
Installation: For mounting in drilled hole and for clamp fixing
Installation reference: In order to ensure the charging function, do not use in metallic materials or materials with metal coating. Material penetration max. 3 mm, which also applies to mobile phone protective cases.
Low voltage plug: Loox5 2-pin 24 V
Material: Aluminum/Plastic
Output power: 15.00 W
Standby power consumption: 0.30 W

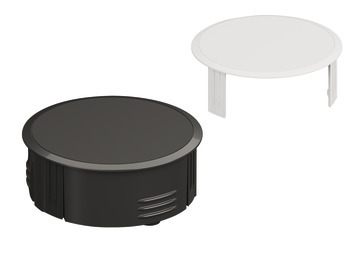

Supplied with: 1 charging station 2 covers (black, white) 1 sticker for concealed installation Fixing material incl. cable clamps
Version: > Overvoltage protection, undervoltage protection, overcurrent protection, over-temperature protection and surface protection, as well as foreign body detection > Quick charging functions for Apple and Samsung > WPC Qi2 standard (with magnetic alignment), backwards compatible with Qi1 (without magnetic alignment) > For all mobile phone cases up to 3 mm > System efficiency max. 78 %
Wattage: 20.00 W
