Hafele 833.73.828 USB charging station is designed for seamless integration into your furniture, providing a sleek and efficient charging solution. With its compact dimensions of 40 mm in diameter and a height of 24 mm, this station fits perfectly into a drilled hole of 40 mm or can be surface-mounted using the supplied housing measuring 46.5 x 46.5 x 18 mm. The elegant white finish complements any décor, making it suitable for both residential and commercial applications. Equipped with one USB-A and one USB-C socket, the charging station ensures compatibility with a wide range of devices, including iPhones up to the 14 series. For the iPhone 15, users can charge via USB-C using the USB-A socket with an adapter. The charging station delivers a robust output of 14 W, with a charging current of 2.8 A, ensuring devices charge quickly and efficiently. Installation is straightforward, with options for screw fixing or clamp installation, while the 1.5 m lead allows for flexible positioning. Designed for low voltage use (12 V), this unit is perfect for modern furniture setups. With an IP20 degree of protection, it is ideal for indoor applications, bringing both functionality and style to your space.

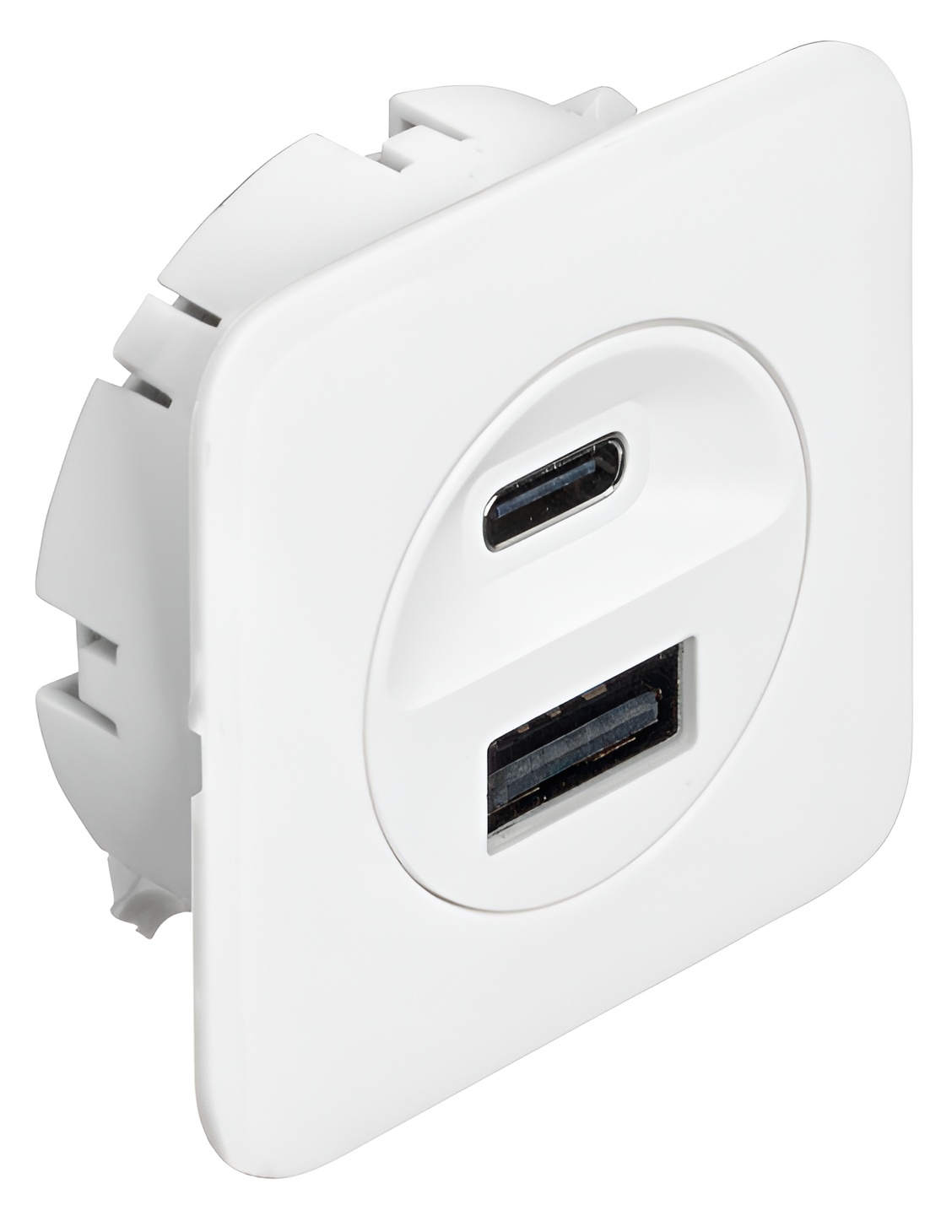

USB charging station, Hafele Loox5, USB-A / USB-C, 12 V

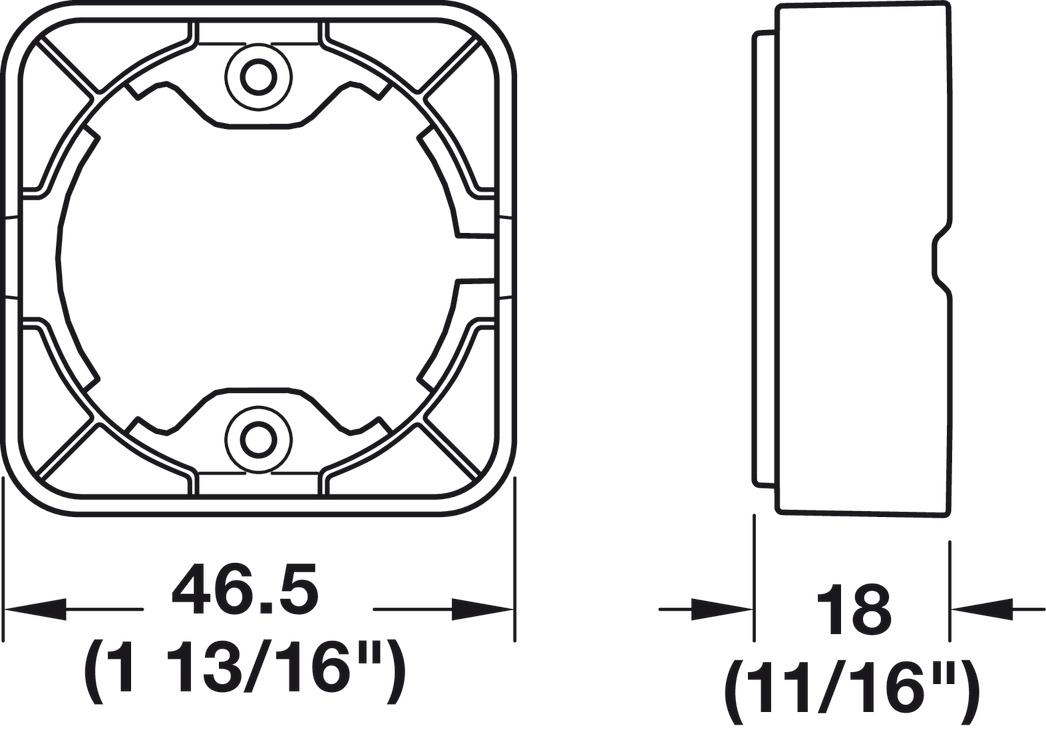

for mounting in drilled hole 40 mm or for screw fixing with frame 46.5 x 46.5 x 18 mm, White
Compatibility of USB-C socket with iPhone: compatible up to iPhone 14; iPhone 15 please charge to USB-C via USB-A socket and adapter. Power supply unit wattage min. 15 W per charging station.
Area of application: Furniture
Cable length: 1,500.00 mm
Charging current: 1 x 2.8 A
Charging sockets type: 1 x USB-A, 1 x USB-C
Color/finish: White
Degree of protection: IP20
Diameter (inch): 1 9/16"

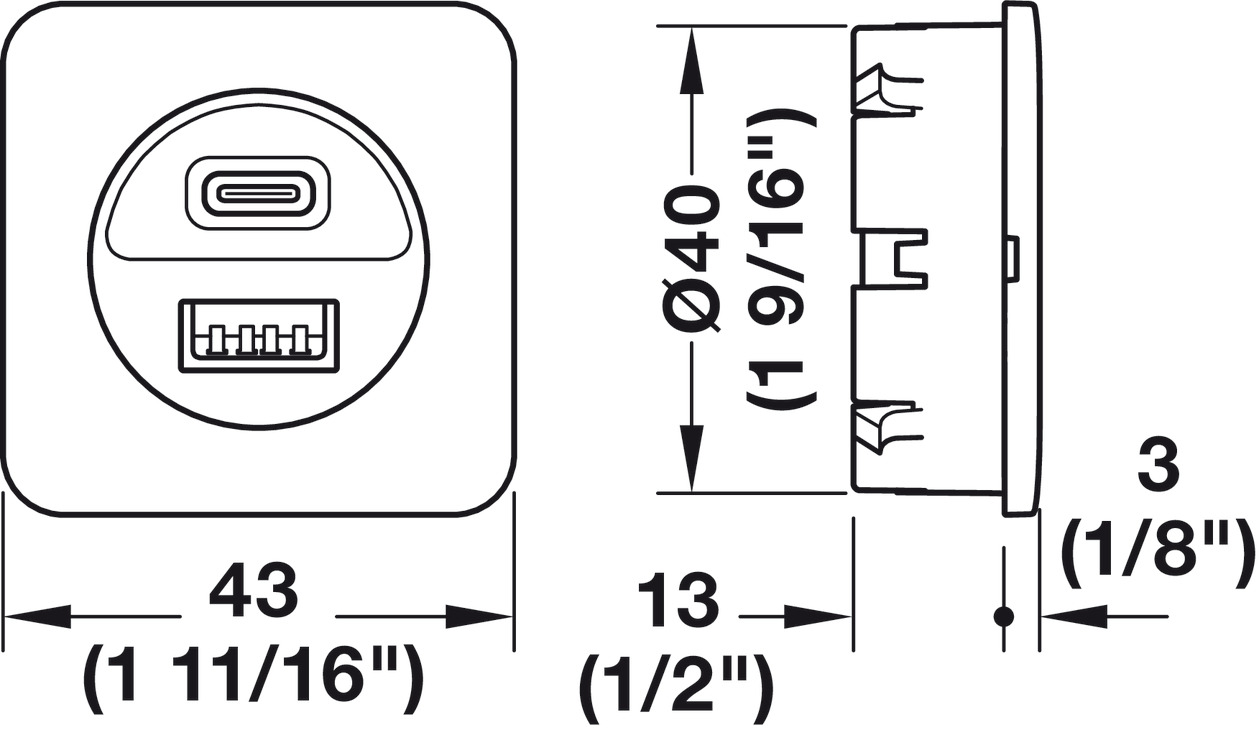

Dim. (Ø x H): 40 x 24 mm
Drill hole Ø: 40.00 mm
Height (inch): 15/16"
Installation: With screws, For mounting in drilled hole and for clamp fixing

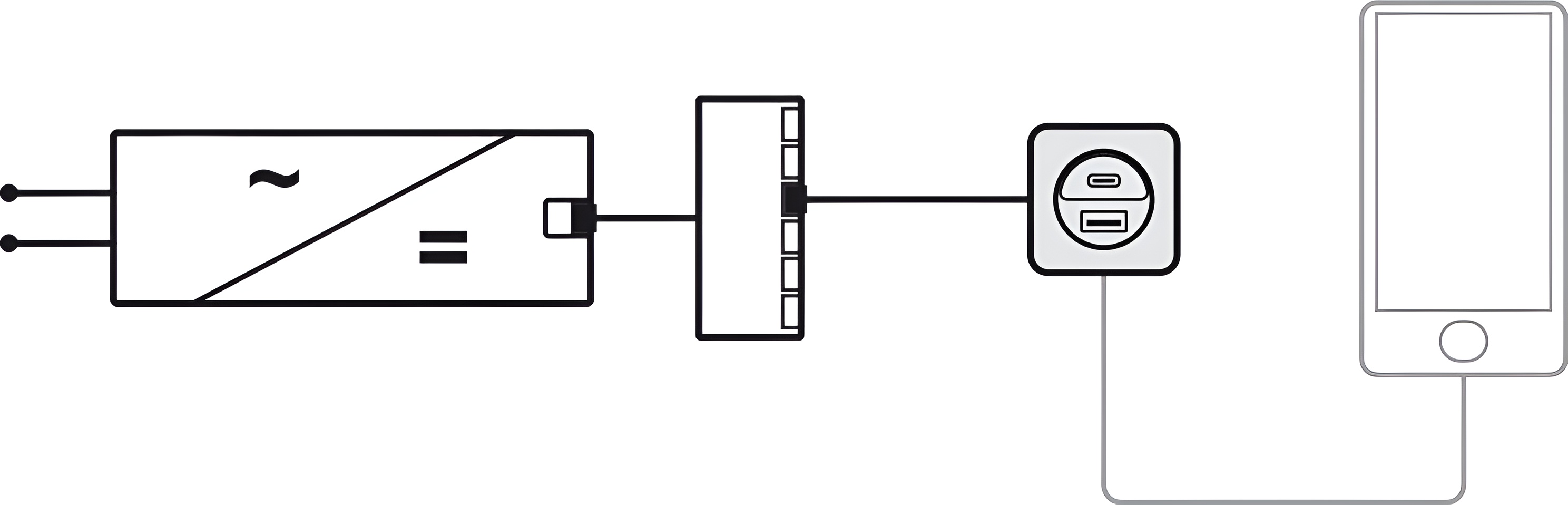

Installation reference: When a 6-way distributor with switching function or Häfele Connect Mesh is used, please always connect this charging station to the 7th output (continuous current) of the 6-way distributor
Low voltage plug: Loox5 2-pin 12 V
Material: Plastic
Nominal voltage: 12.00 V
Output power: 14.00 W
Output voltage: 5 V
Supplied with: 1 USB charging station with pre-attached 1.5 m (59 1/16") lead 1 housing
